B&C DE1085TN 2-Inch Compression Driver - 140W RMS, 8 Ohm

Name: B&C DE1085TN 2-Inch Compression Driver - 140W RMS, 8 Ohm
Brand: B&C
SKU: JP61410
Price: 387.55 GBP
Availability: InStock

Price Each £322.96 (£387.55 Including VAT at 20%)

REF: JP61410

Quantity:

B&C DE1085TN 2-Inch Compression Driver - 140W RMS, 8 Ohm

The B&C DE1085TN is the latest version of our premium 100mm (4.0 inch) voice coil, neodymium high frequency driver. The diaphragm in this model has been completely redesigned to incorporate a bent edge voice coil former as well as new dome and surround geometry. These modifications combine to better control diaphragm displacement and deformations, resulting in lower distortion and a smoother higher frequency response above 10kHz.

Replacement Diaphragm: JP101983 (B&C MMD4BTN)

Click Here for Printer Friendly Version

B&C DE1085TN 2-Inch Compression Driver Features

- 280 W continuous program power capacity
- 2-inch horn throat diameter
- 100 mm (4 inch) aluminium voice coil
- Titanium diaphragm
- 500 - 20000 Hz response
- 109 dB sensitivity
- Neodymium magnet assembly with shorting copper cap

B&C DE1085TN 2-Inch Compression Driver Specifications

- Throat Diameter: 50 mm (2.0 inches)

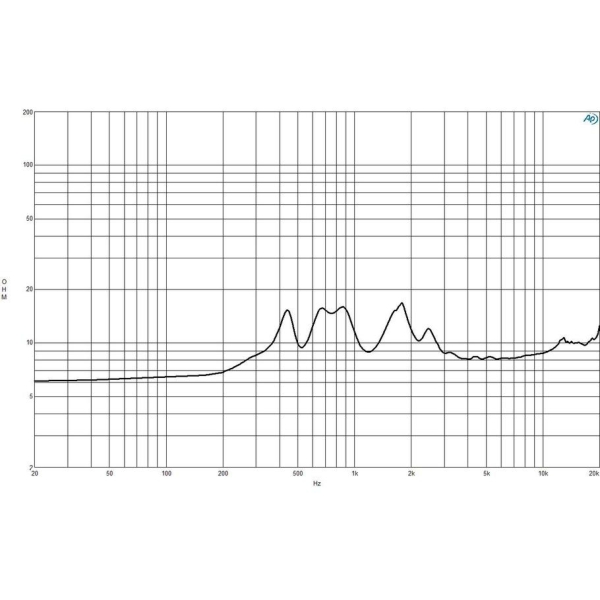

- Nominal Impedance: 8 Ω
- Minimum Impedance: 8.0 Ω
- Nominal Power Handling: 140 W
- Continuous Power Handling: 280 W

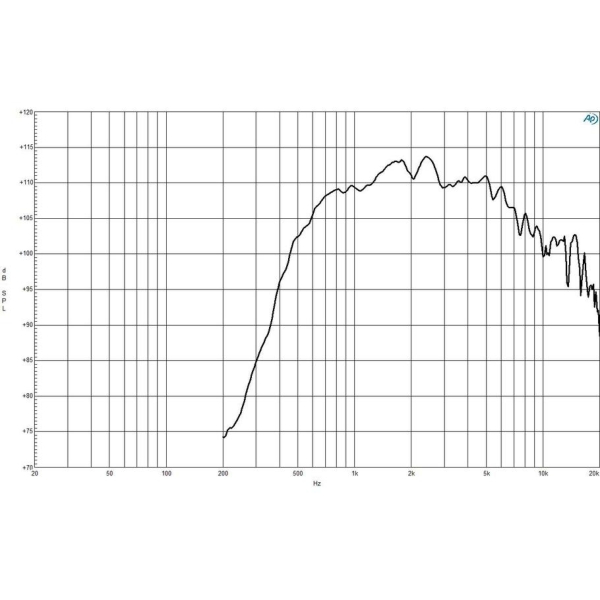

- Sensitivity (1W/1m): 109.0 dB
- Frequency Range: 0.5 - 20 kHz
- Recommended Crossover: 0.8 kHz
- Voice coil Diameter: 100 mm (4.0 inches)
- Winding Material: Aluminium
- Inductance: 0.18 mH
- Diaphragm Material: Titanium
- Flux Density: 1.95 T
- Magnet Material: Neodymium Ring

Physical:
- Mounting:
- Four M6 holes 90° on 102 mm (4 inch) diameter
- Four M6 Mounting Studs with bolts and washers included
- Overall diameter: 154 mm (6.1 inches)
- Depth: 86 mm (3.39 inches)
- Net weight: 3.7 kg

Further Product Information Below

B & C DE1085TN (8 Ohm) Data Sheet (PDF)

B & C DE1085TN Technical Drawing (PDF)
