B&C DCM50 2-Inch Mid-Range Compression Driver - 80W RMS, 8 Ohm

Price Each £260.79 (£312.95 Including VAT at 20%)

REF: JP61118

Quantity:

B&C DCM50 2-Inch Mid-Range Compression Driver - 80W RMS, 8 Ohm

The B&C DCM50 boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Replacement Diaphragm: JP61307 (B&C MMDDCX)

Click Here for Printer Friendly Version

B&C DCM50 2-Inch Mid-Range Compression Driver Features

- 160 W continuous program power capacity
- 2-inch horn throat diameter
- 400 - 10000 Hz response
- 108.5 dB sensitivity
- Neodymium magnet assembly

B&C DCM50 2-Inch Mid-Range Compression Driver Specifications

- Throat Diameter: 50 mm (2 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 8.0 Ω
- Nominal Power Handling: 80 W
- Continuous Power Handling: 160 W
- Sensitivity (1W/1m): 108.5 dB
- Frequency Range: 0.4 - 10.0 kHz
- Recommended Crossover: 0.4 kHz
- Voice coil Diameter: 51 mm (2.0 inches)
- Winding Material: Aluminium
- Inductance: 0.18 mH
- Diaphragm Material: Composite
- Flux Density: 2.1 T
- Magnet Material: Neodymium Ring

Physical:
- Mounting: Four M6 holes 90° on 102 mm (4 inch) diameter
- Overall diameter: 152 mm (6.0 inches)
- Depth: 108 mm (4.25 inches)
- Net weight: 3.14 kg

Further Product Information Below

B & C DCM50 (8 Ohm) Data Sheet (PDF)

B & C DCM50 Technical Drawing (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

B&C DCM50 2-Inch Mid-Range Compression Driver - 80W RMS, 8 Ohm

Related products:

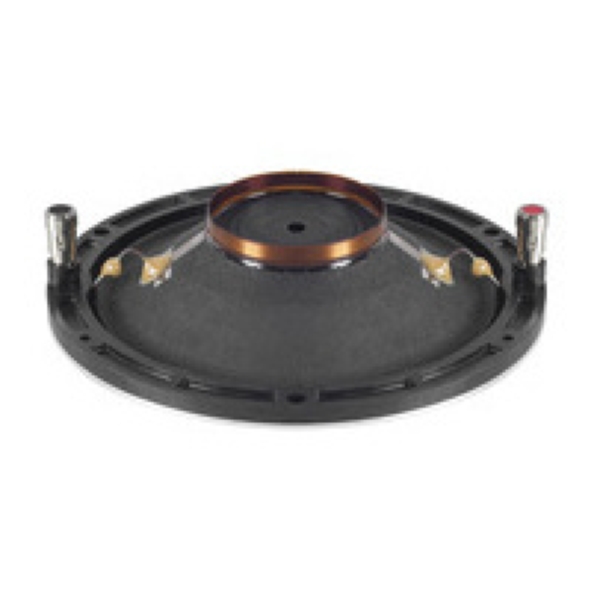

B&C MMDDCX Replacement Mid Range Diaphpragm for B&C DCM50 and DCX50 Coaxial Compression Drivers - 8 Ohm

B&C DCX50 2-Inch Coaxial Compression Driver - 80W RMS, 8 Ohm

B&C DE75P 2-Inch Compression Driver - 80W RMS, 8 Ohm, Spade Terminals

B&C DE75P 2-Inch Compression Driver - 80W RMS, 8 Ohm, Spring Terminals

B&C DE85 2-Inch Compression Driver - 80W RMS, 16 Ohm

B&C DE950 2-Inch Compression Driver - 80W RMS, 8 Ohm

B&C DE64TN 2-Inch Compression Driver - 110W RMS, 8 Ohm

B&C DE75PTN 2-Inch Compression Driver - 110W RMS, 8 Ohm, Spade Terminals

B&C DE75PTN 2-Inch Compression Driver - 110W RMS, 8 Ohm, Spring Terminals

B&C DE75PTN 2-Inch Compression Driver - 110W RMS, 16 Ohm

B&C DE785TN 2-Inch Compression Driver - 110W RMS, 8 Ohm

B&C DE885TN 2-Inch Compression Driver - 110W RMS, 8 Ohm

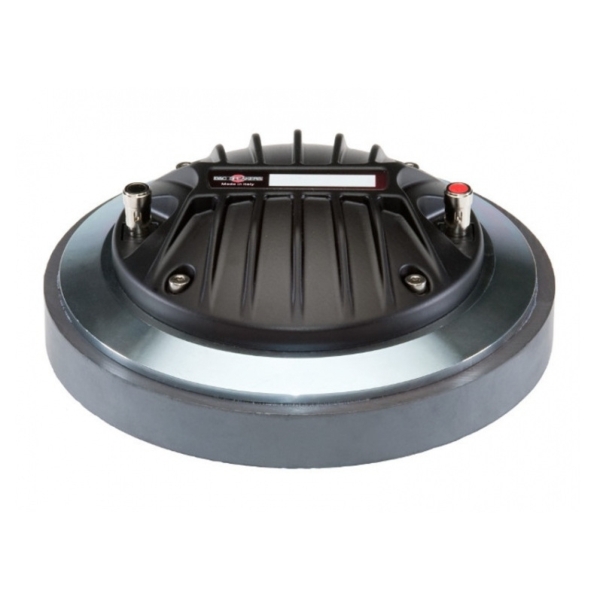

B&C DE95TN 2-Inch Compression Driver - 110W RMS, 8 Ohm

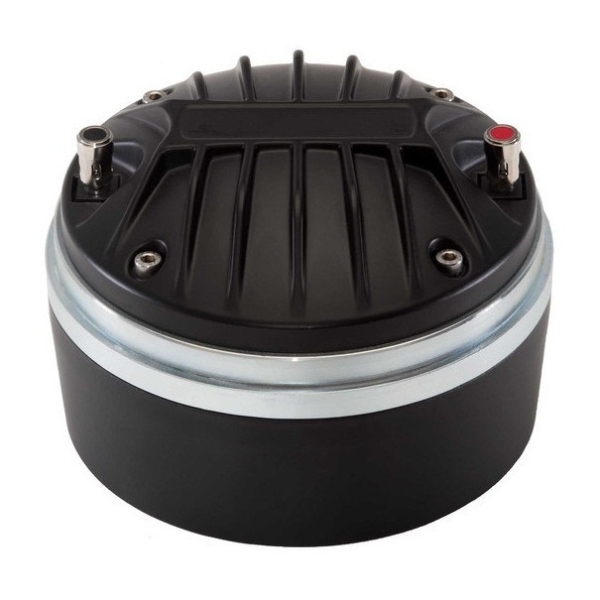

B&C DE985TN 2-Inch Compression Driver - 110W RMS, 8 Ohm
