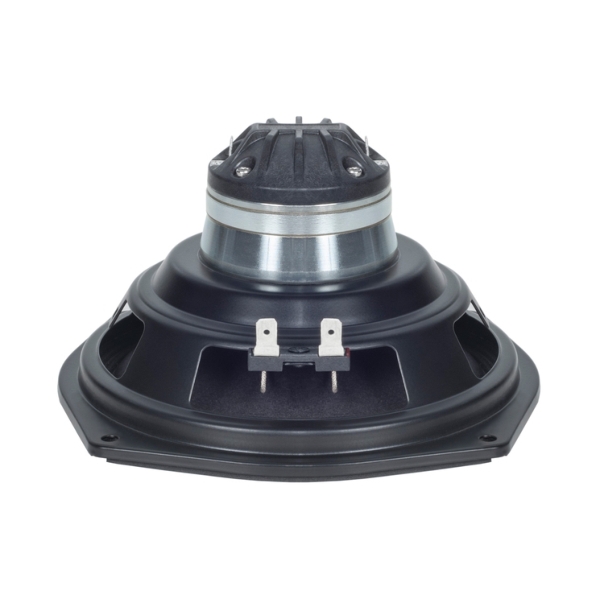

B&C 6CXN36 6.5-Inch Coaxial Driver - 100W RMS, 8 Ohm

B&C 6CXN36 6.5-Inch Coaxial Driver Features

- 200 W continuous program power capacity
- 90° nominal coverage
- 90 - 18000 Hz response
- 90 dB sensitivity
- Aluminum ring allows a very low distortion figure

B&C 6CXN36 6.5-Inch Coaxial Driver Specifications

- Nominal Basket Diameter: 165 mm (6.5 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance:
  - LF: 6.8 Ω
  - HF: 10.2 Ω
- Frequency Response: 90 - 18000 Hz

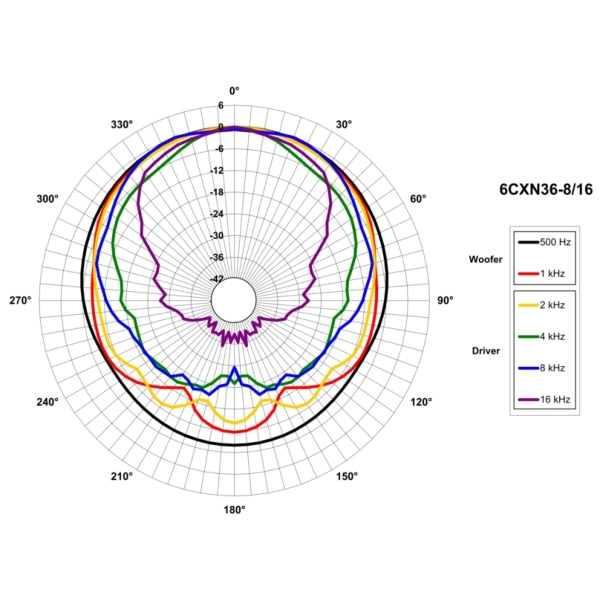

- Dispersion Angle: 90°
- Woofer Cone Treatment: WP Waterproof Front Side
- Magnet Material: Neodymium Ring
- Connection: Spade Terminals

Specifications for LF Unit:
- LF Sensitivity: 90.0 dB
- LF Nominal impedance: 8 Ω
- LF Nominal Power Handling: 100 W
- LF Continuous Power Handling: 200 W
- LF Voice Coil Diameter: 34 mm (1.7 inches)
- LF Winding Material: Copper
- LF Flux Density: 0.74 T
- Former Material: Glass Fibre
- Winding Depth: 11.0 mm (0.43 inches)
- Magnetic Gap Depth: 6.0 mm (0.24 inches)

Specifications for HF Unit:
- HF Sensitivity: 100.0 dB
- HF Nominal impedance: 8 Ω
- HF Nominal Power Handling: 25 W
- HF Continuous Power Handling: 50 W
- HF Voice Coil Diameter: 36 mm (1.46 inches)
- HF Winding Material: Aluminium
- HF Flux Density: 1.65 T
- Diaphragm material: HT Polymer
- Recommended crossover: 2.0 kHz
- Inductance: 0.14 mH

Parameters:
- Fs: 90 Hz
- Re: 5.8 Ω
- Qes: 1.17
- Qms: 5.0
- Qts: 0.95
- Vas: 7.5 dm³
- Sd: 132.0 cm²
- η₀: 0.45 %
- Xmax: ± 4.1 mm
- Xvar: ± 5.0 mm
- Mms: 10.2 g
- Bl: 5.34 Txm
- Le: 0.94 mH
- EBP: 76 Hz

Physical:
- Overall diameter: 180 mm (7.09 inches)
- Bolt circle diameter: 165 mm (6.5 inches)
- Baffle cutout diameter: 146 mm (5.75 inches)
- Depth: 91 mm (3.58 inches)
- Flange and gasket thickness: 6 mm (0.25 inches)
- Net weight: 0.7 kg
