B&C 5NSM38 5-Inch Speaker Driver - 110W RMS, 8 Ohm

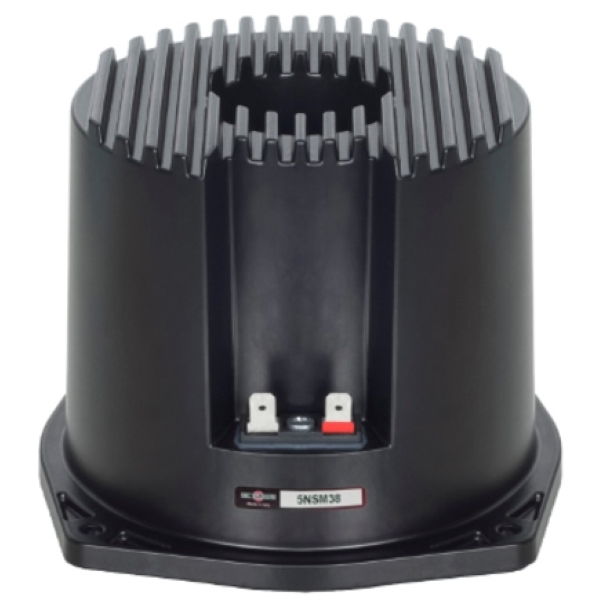

The B&C 5NSM38 5-Inch Speaker Driver simplifies cabinet assembly and efficient thermal transfer to the air. The NSM series of sealed back midranges feature a cast aluminum sealed chassis, high strength neodymium motor, and large internal volume for good low frequency performance. Large voice coils provide power handling, while careful selection of suspension and cone components results in exceptional sensitivity. These dedicated narrow-bandwidth midranges offer the lowest distortion at given output of any midrange available.

Click Here for Printer Friendly Version

B&C 5NSM38 5-Inch Speaker Driver Features

- 220 W continuous program power capacity
- Waterproofed on front of cone
- 38 mm (1.5 inches) aluminium voice coil
- 300 - 3500 Hz response
- 99 dB sensitivity
- Ideal for Direct Radiation and Horn Loaded
- Midrange application
- Extremely Low Distortion Figure

B&C 5NSM38 5-Inch Speaker Driver Specifications

- Nominal diameter: 127 mm (5.0 inches)
- Nominal impedance: 8 Ω
- Minimum impedance: 6.3 Ω
- Nominal power handling: 110 W
- Continuous power handling: 220 W
- Sensitivity (1W/1m): 99.0 dB
- Frequency range: 300-3500 Hz
- Voice coil diameter: 38 mm (1.5 inches)
- Winding material: Aluminium
- Former material: Glass Fibre
- Winding depth: 7.0 mm (0.29 inches)
- Magnetic gap depth: 6.0 mm (0.24 inches)
- Flux density: 1.45 T
- Connection: Spade Terminals

Design:
- Surround shape: Double Roll
- Cone shape: Radial
- Magnet material: Neodymium Ring
- Spider: Single
- Pole design: T-Pole
- Woofer cone treatment: WP Waterproof Front Side

Parameters:
- Fs: 300 Hz
- Re: 5.3 Ω
- Qes: 0.99
- Qms: 4.1
- Qts: 0.79
- Vas: 0.3 dm³ (0.01 ft³)
- Sd: 95.0 cm² (14.73 inches²)
- η₀: 1.15 %
- Xmax: 2.2 mm
- Xvar: 3.0 mm
- Mms: 9 g
- Bl: 10.1 Txm
- Le: 0.15 mH
- EBP: 303 Hz

Physical:
- Overall diameter: 157 mm (6.18 inches)
- Bolt circle diameter: 142 mm (5.59 inches)
- Baffle cutout diameter: 122 mm (4.8 inches)
- Depth: 108 mm (4.25 inches)
- Flange and gasket thickness: 9 mm (0.35 inches)
- Air volume occupied by driver: 1.2 dm³ (0.04 ft³)
- Net weight: 1.37 kg (3 lb)

Further Product Information Below

B & C 5NSM38 (8 Ohm) Data Sheet (PDF)

B & C 5NSM38 Technical Drawing (PDF)
