B&C 5FG44 5-Inch Speaker Driver - 100W RMS, 16 Ohm

B&C 5FG44 5-Inch Speaker Driver Features

- 200 W continuous program power capacity
- 44 mm (1.7 in) copper voice coil
- 70 - 6000 Hz response
- 92 dB sensitivity

B&C 5FG44 5-Inch Speaker Driver Specifications

- Nominal Diameter: 127 mm (5.0 in)
- Nominal Impedance: 16 Ω
- Minimum Impedance: 12.7 Ω
- Nominal Power Handling: 100 W
- Continuous power handling: 200 W
- Frequency Range: 70 - 6000 Hz
- Voice Coil Diameter: 44 mm (1.7 in)
- Winding Material: Copper
- Former Material: Kapton
- Winding Depth: 9.0 mm (0.35 in)
- Magnetic Gap Depth: 6 mm (0.25 in)
- Flux Density: 1.1 T

Design:
- Surround Shape: Roll
- Cone Shape: Exponential
- Magnet Material: Ferrite
- Spider: Single
- Pole Design: T-Pole
- Woofer Cone Treatment: WP Waterproof Front Side

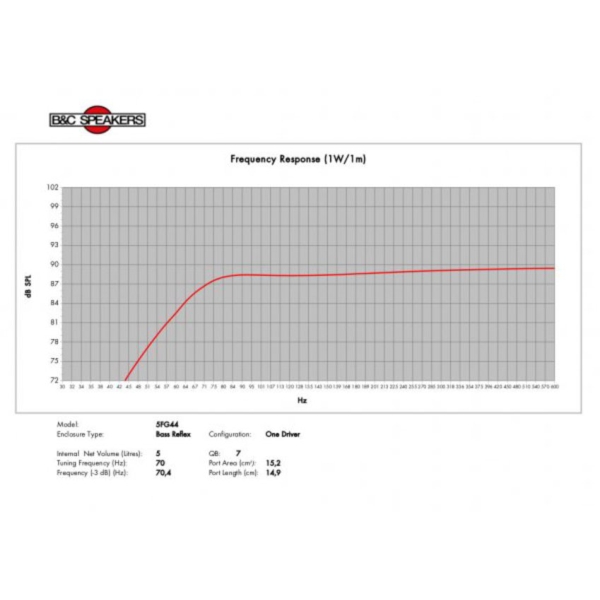

- Recommended Enclosure: 5.0 dm³ (0.18 ft³)
- Recommended Tuning: 70 Hz

Parameters:
- Resonance Frequency: 70 Hz
- Re: 11.1 Ω
- Qes: 0.4
- Qms: 10.5
- Qts: 0.39
- Vas: 5.1 dm³ (0.18 ft³)
- Sd: 92 cm² (14.26 in²)
- ??: 0.42 %
- Xmax: ± 3.0 mm
- Xvar: ± 5.0 mm
- Mms: 12.0 g
- Bl: 11.6 Txm
- Le: 0.8 mH
- EBP: 175 Hz

Physical:
- Overall Diameter: 155 mm (6.1 in)
- Bolt Circle Diameter: 142 mm (5.6 in)
- Baffle Cutout Diameter: 122 mm (4.8 in)
- Depth: 77 mm (3.03 in)
- Flange and Gasket Thickness: 9 mm (0.35 in)
- Air Volume Occupied by Driver: 0.5 dm³ (0.02 ft³)
- Net Weight: 1.6 kg (3.53 lb)

Further Product Information Below

B & C 5FG44 (16 Ohm) Data Sheet (PDF)

B & C 5FG44 Technical Drawing (PDF)
