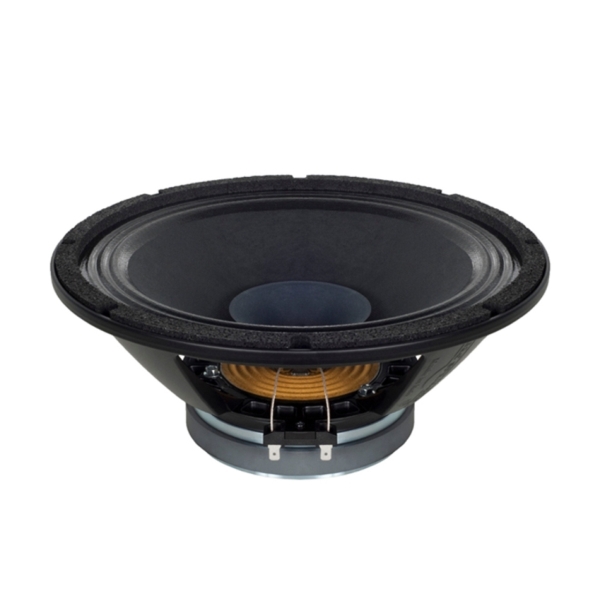

B&C 320 K/C-A 12-Inch Full Range Driver - 120W, 16 Ohm

Price Each £170.83 (£205.00 Including VAT at 20%)

REF: JP102030

Quantity:

B&C 320 K/C-A 12-Inch Full Range Driver - 120W, 16 Ohm

The B&C 320 K/C-A 12-Inch Full Range Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C 320 K/C-A 12-Inch Full Range Driver Features

- 240 W continuous program power capacity
- 38 mm (1.5 in) copper voice coil
- 80 - 16000 Hz response
- 100 dB sensitivity
- Shorting copper cap for extended HF response

B&C 320 K/C-A 12-Inch Full Range Driver Specifications

- Nominal Basket Diameter: 320 mm (12.6 inches)
- Nominal Impedance: 16 Ω
- Minimum Impedance: 13.6 Ω
- Nominal Power Handling: 120 W
- Continuous Power Handling: 240 W
- Frequency Response: 80 - 16000 Hz
- Sensitivity (1W/1m): 100.0 dB
- Voice Coil Diameter: 38 mm (1.5 inches)
- Winding Material: Copper
- Former Material: Kraft Paper
- Winding Depth: 9.0 mm (0.37 inches)
- Magnetic Gap Depth: 9.0 mm (0.37 inches)
- Flux Density: 1.4 T
- Connection: Spade Terminals

Design:
- Surround shape: Accordion
- Cone shape: Radial
- Magnet material: Ferrite Ring
- Spider: Single
- Pole design: Straight Pole
- Woofer cone treatment: None
- Recommended enclosure: 60.0 dm³
- Recommended tuning: 75 Hz

Parameters:
- Fs: 82 Hz
- Re: 12 Ω
- Qes: 0.61
- Qms: 14.0
- Qts: 0.59
- Vas: 52.0 dm³
- Sd: 522.0 cm²
- η₀: 4.4 %
- Xmax: ± 2.0 mm
- Mms: 28.0 g
- Bl: 16.8 Txm
- Le: 2.2 mH
- EBP: 134 Hz

Physical:
- Overall diameter: 316 mm (12.44 inches)
- Bolt circle diameter: 298 mm (11.3 inches)
- Baffle cutout diameter: 286 mm (11.26 inches)
- Depth: 136 mm (5.35 inches)
- Flange and gasket thickness: 12 mm (0.47 inches)
- Air volume occupied by driver: 3.0 dm³
- Net weight: 4.5 kg

Further Product Information Below

B & C 320K/C-A (16 Ohm) Data Sheet (PDF)

B & C 320K/C-A Technical Drawing (PDF)
