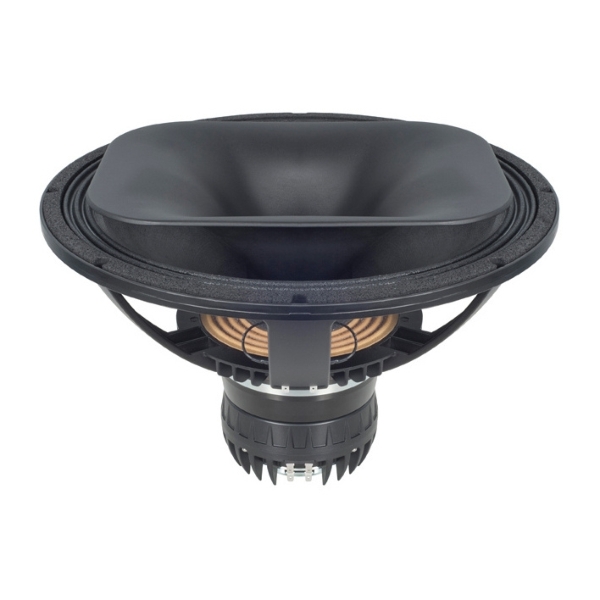

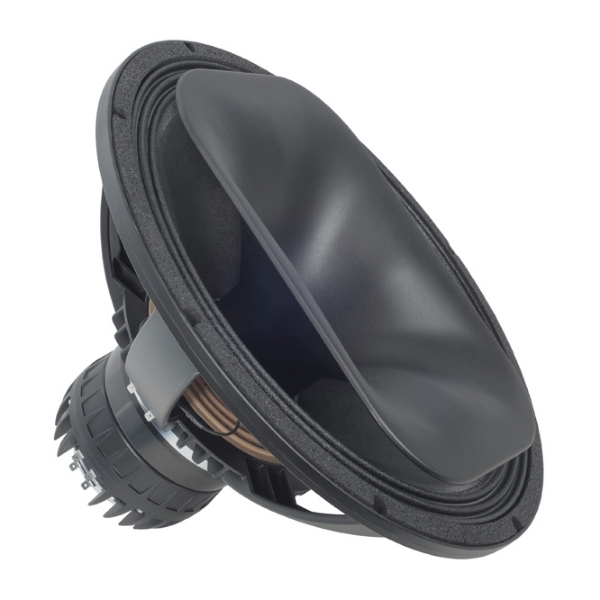

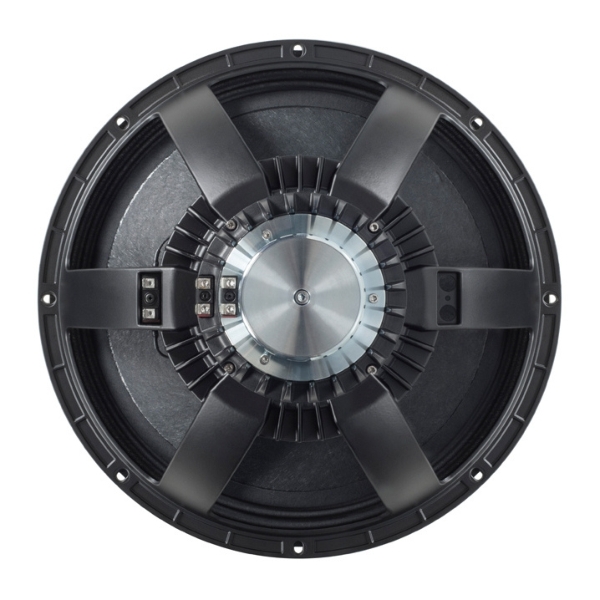

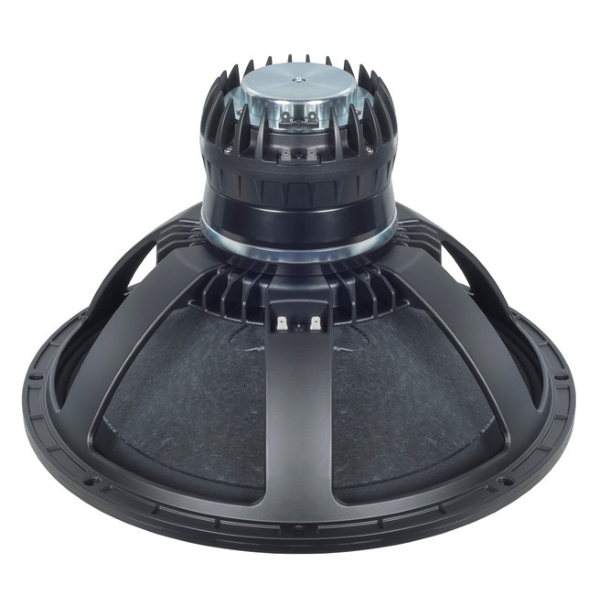

B&C 18HTX100 18-Inch Tri-axial Full Range Speaker with DCX464 Coaxial MF/HF Compression Driver - 1000W, 8 Ohm

Price Each £577.09 (£692.51 Including VAT at 20%)

REF: JP106885

Quantity:

B&C 18HTX100 18-Inch Tri-axial Full Range Speaker with DCX464 Coaxial MF/HF Compression Driver - 1000W, 8 Ohm

The B&C 18HTX100 combines state-of-the-art technology and expert craftsmanship to provide an audio experience like no other. Here are just a few of the many benefits of the B&C 18HTX100 triaxial speaker:

Versatility:
The triaxial design of the B&C 18HTX100 allows for it to be used in a variety of applications, where a coherent point source is required. Whether you're a professional audio engineer or just looking to improve your home audio setup, the B&C 18HTX100 is an excellent choice for live sound, home cinema, and many more applications.

High Power:
With a power handling capacity of 1000W (800W LF, 110W MF and 80W HF) , the 18HTX100 can handle even the most demanding audio content. You can be confident that this speaker will deliver powerful, clear audio that will take your breath away. The device boasts a high sensitivity of 100dB (LF) and 110dB (MF/HF) - sufficient for high SPL in almost any application.

Clear Sound Quality:
High accuracy and low distortion (thanks to clever use of an aluminium demodulating ring) ensures a clear and pristine audio experience. Say goodbye to dull, muffled audio and hello to a stunning soundscape that you won't be able to get enough of.

Durability:
The B&C 18HTX100 is built with high-quality materials and designed to last, ensuring that your audio experience will be consistent and reliable for years to come. A waterproof cone ensures long term stability in the toughest of environments. This speaker is built to withstand even the toughest conditions and deliver exceptional audio every time.

Easy Installation:
The B&C 18HTX100 is designed with ease of installation in mind, making it simple to integrate into any audio setup. Whether you're setting up a new system or upgrading an existing one, the B&C 18HTX100 will be a breeze to install.

In conclusion, the B&C 18HTX100 triaxial speaker is an exceptional audio device that provides versatility, power, clear sound quality, durability, and easy installation. Whether you're a professional audio engineer or just looking to enhance your audio experience, the B&C 18HTX100 is an excellent choice. So why wait? Elevate your audio experience with the B&C 18HTX100 triaxial speaker today!

Compression Driver: JP101940 (B&C DCX464)

Click Here for Printer Friendly Version

B&C 18HTX100 18-Inch Tri-axial Driver Features

- 100 dB (LF), 110 dB (MF/HF) sensitivity
- 1600 W continuous program power capacity

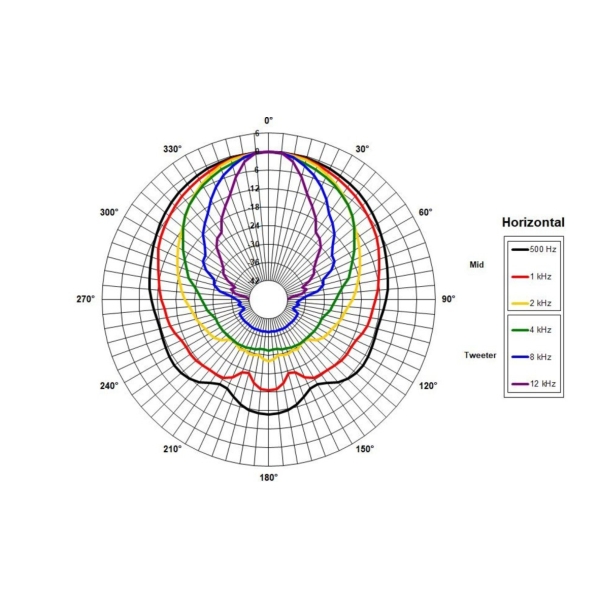

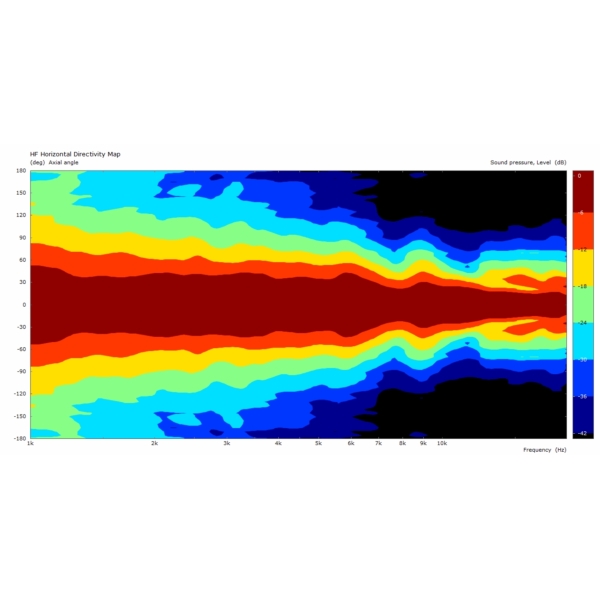

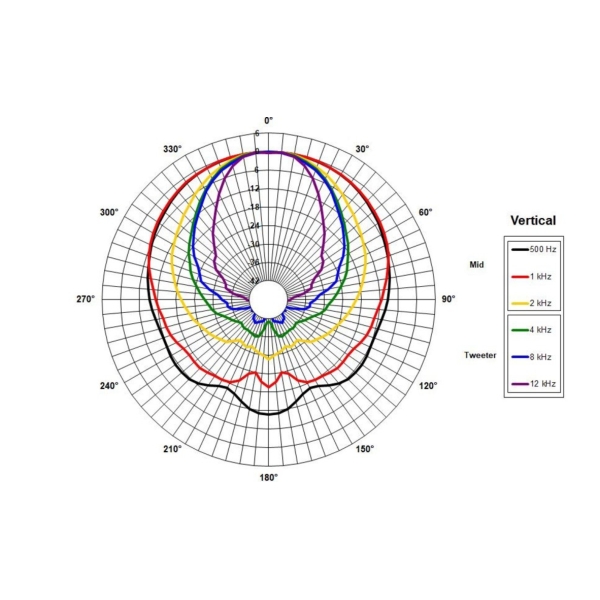

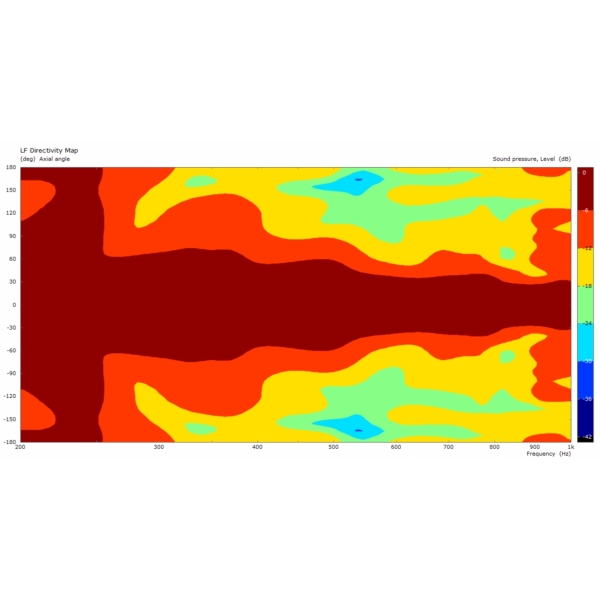

- 60° x 40° nominal coverage

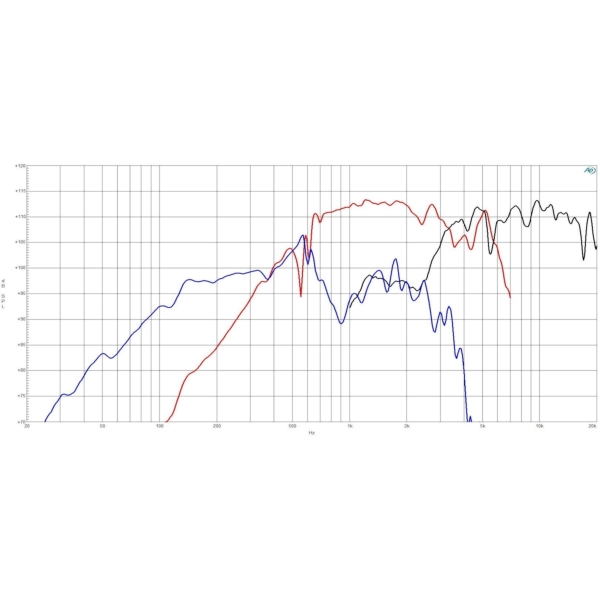

- 44 - 18000 Hz response
- FEA optimized horn flare for improved acoustic loading and controlled coverage
- Double silicone spider with optimized compliance
- Aluminium demodulating ring for very low distortion

B&C 18HTX100 18-Inch Tri-axial Driver Specifications

- Nominal Basket Diameter: 460 mm (18 inches)
- Frequency Response: 40 - 18000 Hz
- Dispersion Angle: 60° x 40°
- Woofer Cone Treatment: TWP Waterproof Both Sides
- Magnet Material: Neodymium Ring

Specifications for LF Unit:
- LF Sensitivity: 100.0 dB
- LF Nominal impedance: 8 Ω
- LF Minimum impedance: 6.6 Ω
- LF Nominal Power Handling: 800 W
- LF Continuous Power Handling: 1600 W
- LF Voice Coil Diameter: 100 mm (4.0 inches)
- LF Winding Material: Aluminium
- LF Flux Density: 1.5 T
- Former Material: Glass Fibre
- Winding Depth: 25.1 mm (1.0 inches)
- Magnetic Gap Depth: 10.2 mm (0.4 inches)

Specifications for MF Unit:
- MF Sensitivity: 110.0 dB
- MF Nominal impedance: 8 Ω
- MF Nominal impedance: 6.0 Ω
- MF Nominal Power Handling: 110 W
- MF Continuous Power Handling: 220 W
- MF Voice Coil Diameter: 100 mm (4.0 inches)
- MF Winding Material: Aluminium
- MF Inductance: 0.21 mH
- MF Flux Density: 1.9 T
- MF Recommended Crossover: 0.6 kHz
- Diaphragm material: HT polymer
- Magnetic Material: Neodymium Ring

Specifications for HF Unit:
- HF Sensitivity: 110.0 dB
- HF Nominal impedance: 8 Ω
- HF Minimum impedance: 9.0 Ω
- HF Nominal Power Handling: 80 W
- HF Continuous Power Handling: 160 W
- HF Voice Coil Diameter: 65 mm (2.5 inches)
- HF Winding Material: Aluminium
- HF Flux Density: 2.14 T
- Diaphragm material: HT Polymer
- Recommended crossover: 4.0 kHz
- Inductance: 0.1 mH
- Magnetic Material: Neodymium Inside Slug

Parameters:
- Fs: 44 Hz
- Re: 5.4 Ω
- Qes: 0.34
- Qms: 6.3
- Qts: 0.32
- Vas: 173.0 dm³
- Sd: 1210.0 cm²
- η₀: 4.3 %
- Xmax: ± 10.0 mm
- Xvar: ± 13.0 mm
- Mms: 158.5 g
- Bl: 26.3 Txm
- Le: 1.16 mH
- EBP: 129 Hz

Physical:
- Overall diameter: 460 mm (18.11 inches)
- Bolt circle diameter: 440 mm (17.32 inches)
- Baffle cutout diameter: 423 mm (16.65 inches)
- Depth: 299 mm (11.77 inches)
- Flange and gasket thickness: 16 mm (0.63 inches)
- Net weight: 12.05 kg

Further Product Information Below

B & C 18HTX100 (8 Ohm) Data Sheet (PDF)

B & C 18HTX100 Technical Drawing (PDF)
