B&C 15SW100 15-Inch Speaker Driver - 1500W RMS, 4 Ohm, Spade Terminals

Name: B&C 15SW100 15-Inch Speaker Driver - 1500W RMS, 4 Ohm, Spade Terminals
Brand: B&C
SKU: JP61337
Price: 309.02 GBP
Availability: InStock

Price Each £257.52 (£309.02 Including VAT at 20%)

REF: JP61337

Quantity:

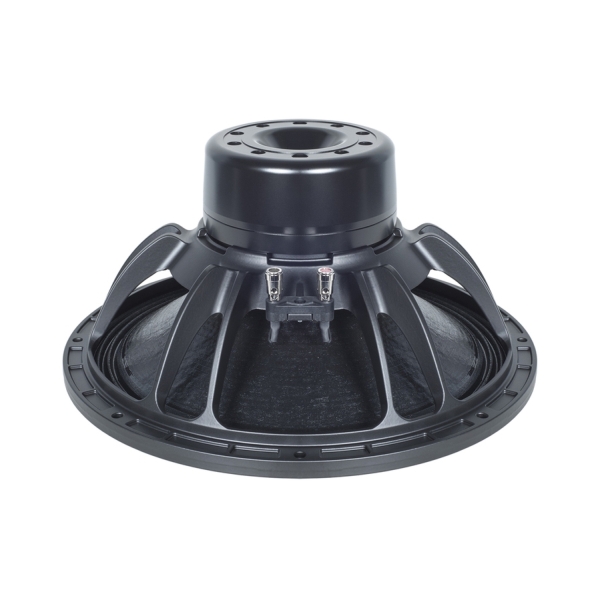

B&C 15SW100 15-Inch Speaker Driver - 1500W RMS, 4 Ohm

The B&C 15SW100 15-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C 15SW100 15-Inch Speaker Driver Features

- 3000 W continuous program power capacity
- 100 mm (4 in) split winding copper voice coil
- 40 - 1500 Hz response
- 95 dB sensitivity
- Waterproofed cone
- 57 mm peak-to-peak excursion before damage
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression
- Aluminium demodulating ring for very low distortion

B&C 15SW100 15-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 380 mm (15.0 inches)
- Nominal Impedance: 4 Ω
- Minimum Impedance: 4.0 Ω
- Nominal Power Handling: 1500 W
- Continuous Power Handling: 3000 W
- Frequency Response: 40 - 1500 Hz
- Sensitivity: 95.0 dB
- Voice Coil Diameter: 100 mm (4.0 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 32.0 mm (1.26 inches)
- Magnetic Gap Depth: 16 mm (0.63 inches)
- Flux Density: 1.15 T
- Connection: Spade Terminals

Design:
- Surround shape: Triple Roll
- Cone shape: Radial
- Magnet material: Neodymium Inside Ring
- Spider: Double Silicone
- Pole design: T-Pole
- Waterproofing Treatment: TWP Waterproof Both Sides
- Recommended enclosure: 120.0 dm³
- Recommended tuning: 35 Hz

Parameters:
- Fs: 37 Hz
- Re: 3.2 Ω
- Qes: 0.29
- Qms: 5.33
- Qts: 0.28
- Vas: 99.5 dm³
- Sd: 885.0 cm²
- η₀: 1.62 %
- Xmax: ± 12.5 mm
- Xvar: ± 13.0 mm
- Mms: 193.0 g
- Bl: 22.09 Txm
- Le: 1.48 mH
- EBP: 127 Hz

Physical:
- Overall diameter: 393 mm (15.5 inches)
- Bolt circle diameter: 374 mm (14.7 inches)
- Baffle cutout diameter: 353 mm (13.9 inches)
- Depth: 190 mm (7.5 inches)
- Flange and gasket thickness: 16 mm (0.63 inches)
- Air volume occupied by driver: 6.0 dm³
- Net weight: 9.6 kg

Further Product Information Below

B & C 15SW100 (4 Ohm) Data Sheet (PDF)

B & C 15SW100 Technical Drawing (PDF)
