B&C 15PZB100 15-Inch Speaker Driver - 700W RMS, 8 Ohm, Spade Terminals

Price Each £188.54 (£226.25 Including VAT at 20%)

REF: JP61054

Quantity:

B&C 15PZB100 15-Inch Speaker Driver - 700W RMS, 8 Ohm, Spade Terminals

The B&C 15PZB100 15-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Recone Kit: JP61199 (B&C RCK15PZB1008)

Click Here for Printer Friendly Version

B&C 15PZB100 15-Inch Speaker Driver Features

- 1400 W continuous program power capacity
- 100 mm (4 inch) copper voice coil
- 40 - 2000 Hz response
- 97 dB sensitivity
- Waterproofed cone
- Double silicone spider with optimized compliance

B&C 15PZB100 15-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 380 mm (15.0 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.4 Ω
- Nominal Power Handling: 700 W
- Continuous Power Handling: 1400 W

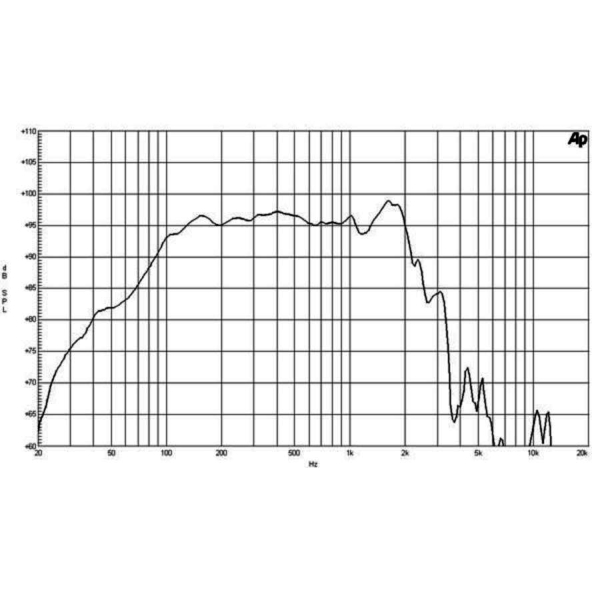

- Frequency Response: 40 - 2000 Hz
- Sensitivity: 97.0 dB
- Voice Coil Diameter: 100 mm (4.0 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 21 mm (0.83 inches)
- Magnetic Gap Depth: 9 mm (0.35 inches)
- Flux Density: 1.15 T
- Connection: Spade Terminals

Design:
- Surround shape: Double Roll
- Cone shape: Exponential
- Magnet material: Ferrite
- Spider: Double Silicone
- Pole design: Straight Pole
- Waterproofing Treatment: TWP Waterproof Both Sides
- Recommended enclosure: 105.0 dm³
- Recommended tuning: 39 Hz

Parameters:
- Fs: 39 Hz
- Re: 5.2 Ω
- Qes: 0.3
- Qms: 6.5
- Qts: 0.29
- Vas: 110.0 dm³
- Sd: 855.0 cm²
- η₀: 2.1 %
- Xmax: ± 8.0 mm
- Xvar: ± 6.5 mm
- Mms: 154.0 g
- Bl: 25.8 Txm
- Le: 2.0 mH
- EBP: 130 Hz

Physical:
- Overall diameter: 393 mm (15.5 inches)
- Bolt circle diameter: 374 mm (14.7 inches)
- Baffle cutout diameter: 354 mm (13.9 inches)
- Depth: 174 mm (6.85 inches)
- Flange and gasket thickness: 16 mm (0.62 inches)
- Air volume occupied by driver: 5.2 dm³
- Net weight: 11.8 kg

Further Product Information Below

B & C 15PZB100 (8 Ohm) Data Sheet (PDF)

B & C 15PZB100 Technical Drawing (PDF)
