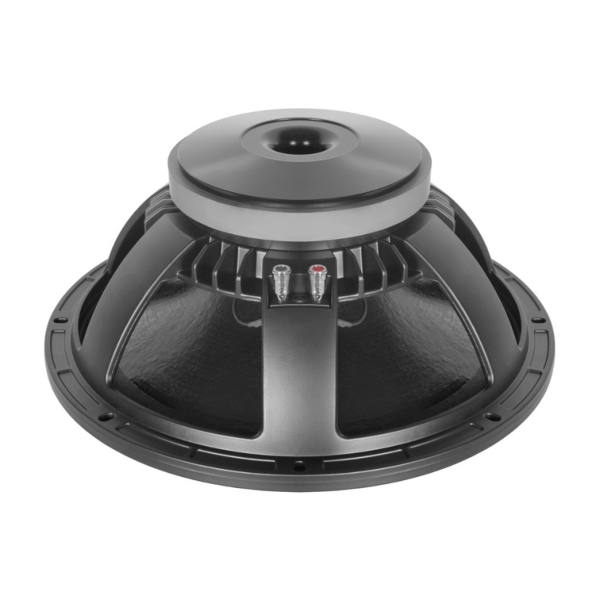

B&C 15PLB76 15-Inch Speaker Driver - 400W RMS, 8 Ohm, Spring Terminals

Name: B&C 15PLB76 15-Inch Speaker Driver - 400W RMS, 8 Ohm, Spring Terminals
Brand: B&C
SKU: JP101864
Price: 146.03 GBP
Availability: InStock

Price Each £121.69 (£146.03 Including VAT at 20%)

REF: JP101864

Quantity:

B&C 15PLB76 15-Inch Speaker Driver - 400W RMS, 8 Ohm, Spring Terminals

The B&C 15PLB76 15-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Recone Kit: JP61194 (B&C RCK15PLB768)

Click Here for Printer Friendly Version

B&C 15PLB76 15-Inch Speaker Driver Features

- 800 W continuous program power capacity
- 76 mm (3 in) copper voice coil
- 40 - 2000 Hz response
- 100 dB sensitivity
- Waterproofed cone

B&C 15PLB76 15-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 380 mm (15.0 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.2 Ω
- Nominal Power Handling: 400 W
- Continuous Power Handling: 800 W
- Frequency Response: 40 - 2000 Hz
- Sensitivity: 100.0 dB
- Voice Coil Diameter: 76 mm (3.0 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 16.0 mm (0.63 inches)
- Magnetic Gap Depth: 11 mm (0.43 inches)
- Flux Density: 1.15 T
- Connection: Spring Terminals

Design:
- Surround shape: Triple Roll
- Cone shape: Exponential
- Magnet material: Ferrite
- Spider: Single
- Pole design: T-Pole
- Woofer cone treatment: TWP Waterproof Both Sides
- Recommended enclosure: 100.0 dm³
- Recommended tuning: 50 Hz

Parameters:
- Fs: 42 Hz
- Re: 5.0 Ω
- Qes: 0.26
- Qms: 5.9
- Qts: 0.25
- Vas: 164.0 dm³
- Sd: 855.0 cm²
- η₀: 4.5 %
- Xmax: ± 5.0 mm
- Xvar: ± 8.0 mm
- Mms: 88.0 g
- Bl: 22.1 Txm
- Le: 1.3 mH
- EBP: 161 Hz

Physical:
- Overall diameter: 393 mm (15.5 inches)
- Bolt circle diameter: 374 mm (14.72 inches)
- Baffle cutout diameter: 354 mm (13.9 inches)
- Depth: 169 mm (6.65 inches)
- Flange and gasket thickness: 16 mm (0.62 inches)
- Air volume occupied by driver: 5.2 dm³
- Net weight: 8.5 kg

Further Product Information Below

B & C 15PLB76 (8 Ohm) Data Sheet (PDF)

B & C 15PLB76 Technical Drawing (PDF)
