B&C 15CXN88 15-Inch Coaxial Driver - 500W RMS, 8 Ohm

The B&C 15CXN88 with larger voice coils for increased power handling. A significant increase in magnet mass also improves sensitivity and cone control, while integrating our latest compression driver technologies improves sound quality and durability in the HF as well. For high output applications where fidelity at maximum SPL is the primary concern, consider the 15CXN88, with 3.5-inch LF and 3-inch HF voice coils. Power handling has increased to 1000W, while also improving nearly every other parameter (including Xvar) relative to B&C's established 3-inch coil CXN76 series.

Click Here for Printer Friendly Version

B&C 15CXN88 15-Inch Coaxial Driver Features

- 1000 W continuous program power capacity
- 80° nominal coverage
- 45 - 18000 Hz response
- 100 dB sensitivity
- Single Neodymium magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
- Double spider with optimized compliance

B&C 15CXN88 15-Inch Coaxial Driver Specifications

- Nominal Basket Diameter: 380 mm (15 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance:
- LF: 5.8 Ω
- HF: 8.5 Ω
- Frequency Response: 40 - 18000 Hz
- Dispersion Angle: 80°
- Woofer Cone Treatment: WP Waterproof Front Side
- Magnet Material: Neodymium Ring

Specifications for LF Unit:
- LF Sensitivity: 100.0 dB
- LF Nominal impedance: 8 Ω
- LF Nominal Power Handling: 500 W
- LF Continuous Power Handling: 1000 W
- LF Voice Coil Diameter: 88 mm (3.5 inches)
- LF Winding Material: Aluminium
- LF Flux Density: 1.2 T
- Former Material: Glass Fibre
- Winding Depth: 22.0 mm (0.87 inches)
- Magnetic Gap Depth: 11.0 mm (0.43 inches)

Specifications for HF Unit:
- HF Sensitivity: 106.0 dB
- HF Nominal impedance: 8 Ω
- HF Nominal Power Handling: 80 W
- HF Continuous Power Handling: 160 W
- HF Voice Coil Diameter: 75 mm (3.0 inches)
- HF Winding Material: Aluminium
- HF Flux Density: 1.75 T
- Diaphragm material: Titanium
- Recommended crossover: 1.2 kHz
- Inductance: 0.14 mH

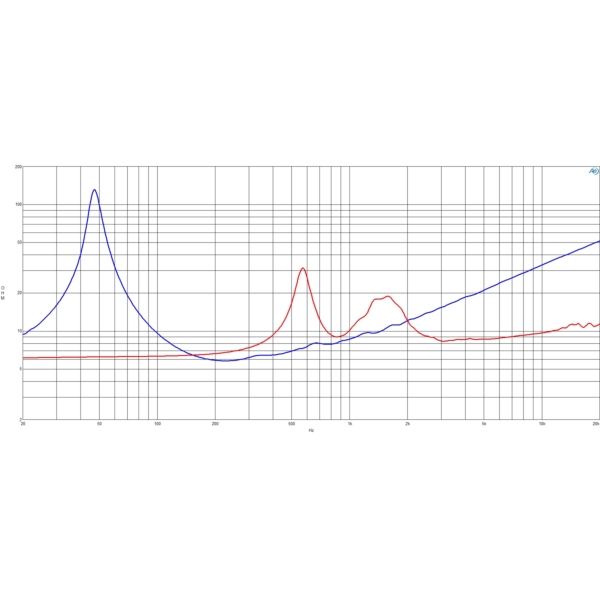

Parameters:
- Fs: 47 Hz
- Re: 4.6 Ω
- Qes: 0.31
- Qms: 12.6
- Qts: 0.3
- Vas: 124.0 dm³
- Sd: 855.0 cm²
- η₀: 4.0 %
- Xmax: ± 8.5 mm
- Xvar: ± 9.5 mm
- Mms: 94.0 g
- Bl: 20.15 Txm
- Le: 0.95 mH
- EBP: 151 Hz

Physical:
- Overall diameter: 393 mm (15.5 inches)
- Bolt circle diameter: 374 mm (14.7 inches)
- Baffle cutout diameter: 356 mm (14.02 inches)
- Depth: 208 mm (8.19 inches)
- Flange and gasket thickness: 15 mm (0.59 inches)
- Net weight: 7.65 kg

Further Product Information Below

B & C 15CXN88 (8 Ohm) Data Sheet (PDF)

B & C 15CXN88 Technical Drawing (PDF)
