B&C 15BG100 15-Inch Speaker Driver - 1000W RMS, 8 Ohm

Price Each £248.07 (£297.68 Including VAT at 20%)

REF: JP61140

Quantity:

B&C 15BG100 15-Inch Speaker Driver - 1000W RMS, 8 Ohm

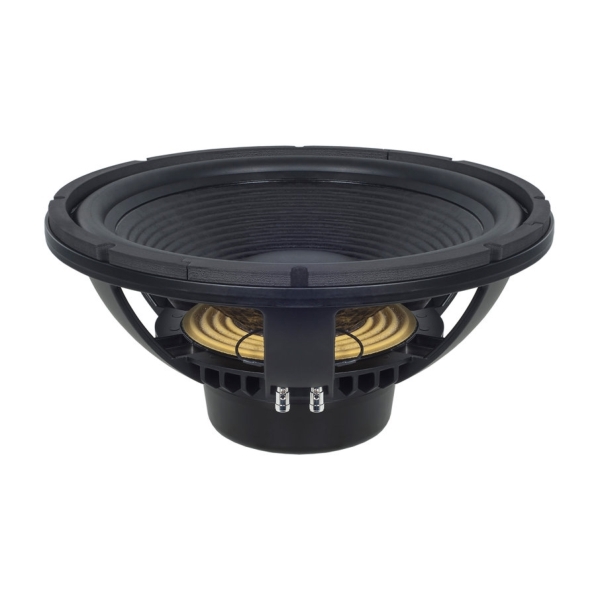

The B&C 15BG100 15-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Recone Kit: JP101948 (B&C RCK15BG1008)

Click Here for Printer Friendly Version

B&C 15BG100 15-Inch Speaker Driver Features

- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 35 - 1000 Hz response
- 94.5 dB sensitivity
- Waterproofed cone
- FEA optimized Neodymium magnet assembly
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression

B&C 15BG100 15-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 380 mm (15.0 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.0 Ω
- Nominal Power Handling: 1000 W
- Continuous Power Handling: 2000 W
- Frequency Response: 35 - 1000 Hz
- Sensitivity: 94.5 dB
- Voice Coil Diameter: 100 mm (4.0 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 27.0 mm (1.05 inches)
- Magnetic Gap Depth: 11 mm (0.43 inches)
- Flux Density: 1.25 T
- Connection: Spade Terminals

Design:
- Surround shape: Roll
- Cone shape: Radial
- Magnet material: Neodymium Inside Ring
- Spider: Double Silicone
- Pole design: T-Pole
- Waterproofing Treatment: TWP Waterproof Both Sides
- Recommended enclosure: 160.0 dm³
- Recommended tuning: 29 Hz

Parameters:
- Fs: 36 Hz
- Re: 5.1 Ω
- Qes: 0.49
- Qms: 5.0
- Qts: 0.44
- Vas: 83.0 dm³
- Sd: 855.0 cm²
- η₀: 0.8 %
- Xmax: ± 10.5 mm
- Xvar: ± 14.0 mm
- Mms: 240.0 g
- Bl: 23.0 Txm
- Le: 1.6 mH
- EBP: 73 Hz

Physical:
- Overall diameter: 393 mm (15.5 inches)
- Bolt circle diameter: 374 mm (14.7 inches)
- Baffle cutout diameter: 354 mm (13.9 inches)
- Depth: 189 mm (7.44 inches)
- Flange and gasket thickness: 24 mm (0.94 inches)
- Air volume occupied by driver: 6.0 dm³
- Net weight: 8.6 kg

Further Product Information Below

B & C 15BG100 (8 Ohm) Data Sheet (PDF)

B & C 15BG100 Technical Drawing (PDF)
