B&C 14NDL88 14-Inch Speaker Driver - 700W RMS, 4 Ohm

Price Each £192.09 (£230.51 Including VAT at 20%)

REF: JP108467

Quantity:

B&C 14NDL88 14-Inch Speaker Driver - 700W RMS, 4 Ohm

The B&C 14NDL88 14-Inch Speaker Driver is perfectly balanced for the loudspeaker systems of today. Incorporating a high temperature neodymium magnet inside the 3.5” (88mm) voice coil reduces the amount of steel needed in the motor structure, saving cost and weight. Unexpected low frequency output and midrange extension to meet with almost any driver for two way applications is the hallmark of this new performance-oriented woofer line from B&C Speakers. Do more, with less, with the NDL88 series.

Click Here for Printer Friendly Version

B&C 14NDL88 14-Inch Speaker Driver Features

- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminium voice coil
- 45 - 3000 Hz response
- 98 dB sensitivity
- Ventilated voice coil gap for reduced power compression
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider for optimized compliance

B&C 14NDL88 14-Inch Speaker Driver Specifications

- Nominal Diameter: 320 mm (12.0 in)
- Nominal Impedance: 4 Ω
- Minimum Impedance: 3.8 Ω
- Nominal Power Handling: 700 W
- Continuous power handling: 1400 W
- Sensitivity (1W/1m): 98.0 dB
- Frequency Range: 40 - 3000 Hz
- Voice Coil Diameter: 88 mm (3.46 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 21.5 mm (0.85 in)
- Magnetic Gap Depth: 10.0 mm (0.39 in)
- Flux Density: 1.15 T

Design:
- Surround Shape: Triple Roll
- Cone Shape: Exponential
- Magnet Material: Neodymium Inside Slug
- Spider: Double Silicone
- Pole Design: T-Pole
- Woofer Cone Treatment: WP Waterproof Front Side
- Recommended Enclosure: 75.0 dm³ (2.65 ft³)
- Recommended Tuning: 53 Hz

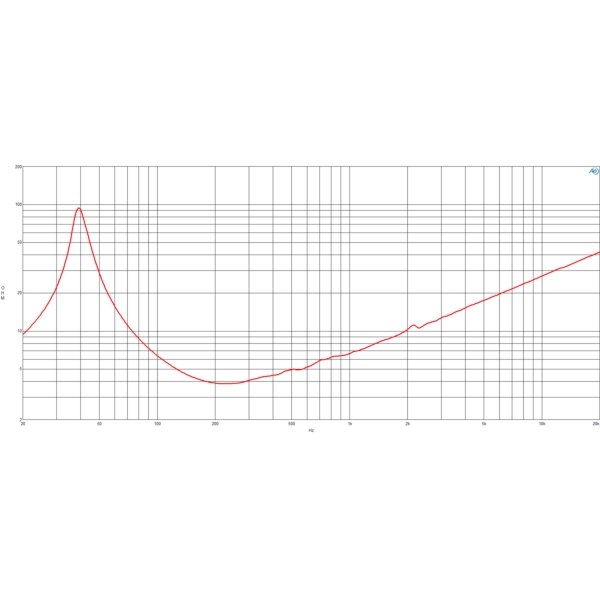

Parameters:
- Resonance Frequency: 40 Hz
- Re: 3.1 Ω
- Qes: 0.24
- Qms: 8.2
- Qts: 0.23
- Vas: 128.0 dm³ (4.52 ft³)
- Sd: 707.0 cm² (109.59 in²)
- ??: 3.2 %
- Xmax: ± 8.0 mm
- Xvar: ± 9.0 mm
- Mms: 89.0 g
- Bl: 16.9 Txm
- Le: 0.85 mH
- EBP: 166 Hz

Physical:
- Overall Diameter: 359 mm (14.13 in)
- Bolt Circle Diameter: 343 mm (13.5 in)
- Baffle Cutout Diameter: 323 mm (12.72 in)
- Depth: 167 mm (6.57 in)
- Flange and Gasket Thickness: 12 mm (0.47 in)
- Air Volume Occupied by Driver: 3.5 dm³ (0.12 ft³)
- Net Weight: 6.6 kg (14.55 lb)

Further Product Information Below

B & C 14NDL88 (4 Ohm) Data Sheet (PDF)

B & C 14NDL88 Technical Drawing (PDF)
