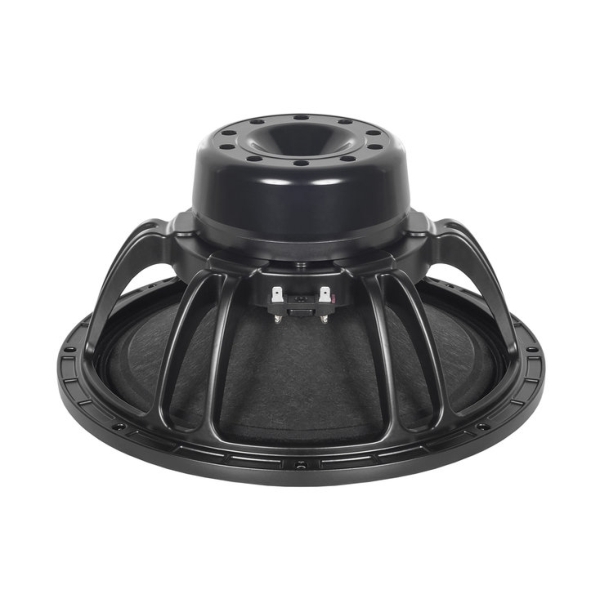

B&C 14NA100 13.5-Inch Speaker Driver - 800W, 8 Ohm

Price Each £231.60 (£277.92 Including VAT at 20%)

REF: JP102032

Quantity:

B&C 14NA100 13.5-Inch Speaker Driver - 800W, 8 Ohm

The B&C 14NA100 14-Inch Speaker Driver with its four inch voice coil gives higher mid-bass power handling and longer excursion capabilities, while an inside slug neodymium magnet provides high motor strength and efficiency. This all around performer is perfect for maximum output two way applications, especially thanks to its aluminum demodulating ring which reduces distortion and flattens impedance into the mid frequencies.

Click Here for Printer Friendly Version

B&C 14NA100 14-Inch Speaker Driver Features

- 1600 W continuous program power capacity
- 100 mm (4 in) copper clad aluminum voice coil
- 45 - 2000 Hz response
- 99 dB sensitivity
- Waterproofed on front of cone
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression

B&C 14NA100 14-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 359 mm (14.0 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.2 Ω
- Nominal Power Handling: 800 W
- Continuous Power Handling: 1600 W

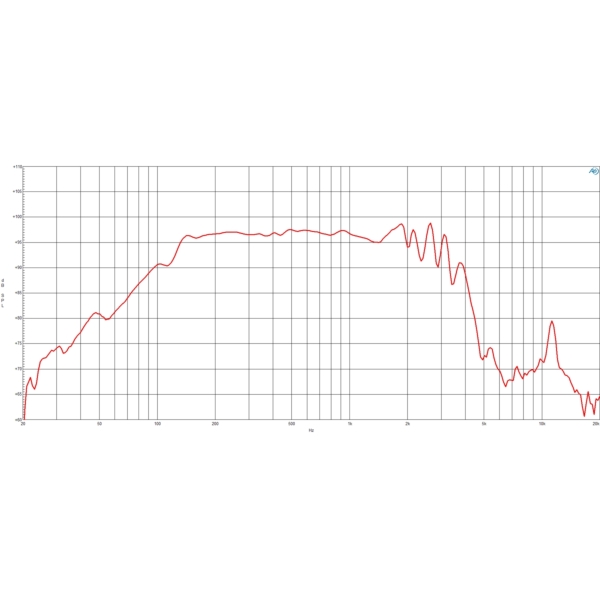

- Frequency Response: 45 - 2000 Hz
- Sensitivity: 99.0 dB
- Voice Coil Diameter: 100 mm (4.0 inches)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 23.0 mm (0.91 inches)
- Magnetic Gap Depth: 11 mm (0.43 inches)
- Flux Density: 1.15 T
- Connection: Spade Terminals

Design:
- Surround shape: Triple Roll
- Cone shape: Radial
- Magnet material: Neodymium Inside Slug
- Spider: Double Silicone
- Pole design: T-Pole
- Woofer cone treatment: WP Waterproof Front Side
- Recommended enclosure: 60.0 dm³
- Recommended tuning: 50 Hz

Parameters:
- Fs: 43 Hz
- Re: 5.1 Ω
- Qes: 0.24
- Qms: 5.6
- Qts: 0.23
- Vas: 99.5 dm³
- Sd: 707.0 cm²
- η₀: 3.1 %
- Xmax: ± 8.8 mm
- Xvar: ± 9.5 mm
- Mms: 96.5 g
- Bl: 23.5 Txm
- Le: 0.74 mH
- EBP: 179 Hz

Physical:
- Overall diameter: 359 mm (14.1 inches)
- Bolt circle diameter: 343 mm (13.5 inches)
- Baffle cutout diameter: 324 mm (12.76 inches)
- Depth: 176 mm (6.93 inches)
- Flange and gasket thickness: 12 mm (0.47 inches)
- Air volume occupied by driver: 3.5 dm³
- Net weight: 8.3 kg

Further Product Information Below

B & C 14NA100 (8 Ohm) Data Sheet (PDF)

B & C 14NA100 Technical Drawing (PDF)
