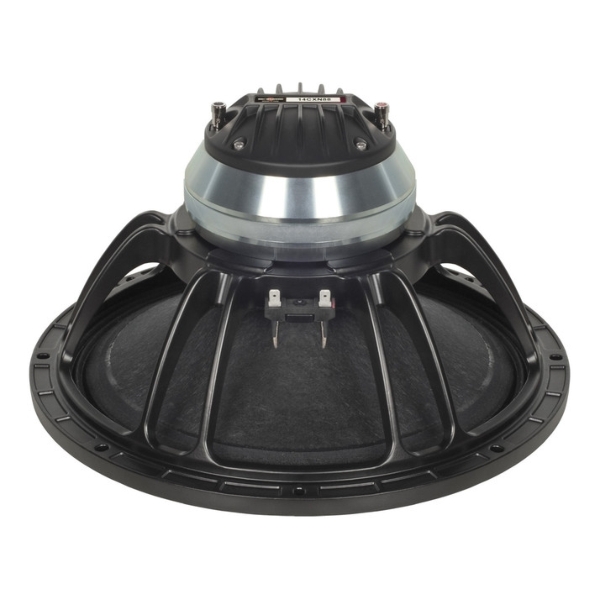

B&C 14CXN88 14-Inch Coaxial Driver - 500W RMS, 8 Ohm

Name: B&C 14CXN88 14-Inch Coaxial Driver - 500W RMS, 8 Ohm
Brand: B&C
SKU: JP101905
Price: 485.66 GBP
Availability: InStock

Price Each £404.72 (£485.66 Including VAT at 20%)

REF: JP101905

Quantity:

B&C 14CXN88 14-Inch Coaxial Driver - 500W RMS, 8 Ohm

The B&C 14CXN88 features an 88mm voice coil woofer and 75mm diaphragm high frequency driver. This motor combination offers an excellent balance between HF and LF output. As a practical compromise between our 12-inch and 15-inch alternatives, the 14CXN88 coaxial (which is actually 13.5-inches in diameter) offers better low frequency output than a 12-inch coaxial, but more balanced midrange performance than a 15-inch coaxial.

Click Here for Printer Friendly Version

B&C 14CXN88 14-Inch Coaxial Driver Features

- 1000 W continuous program power capacity
- 80° nominal coverage
- 45 - 18000 Hz response
- 99 dB sensitivity
- Single Neodymium magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
- Double silicone spider with optimized compliance

B&C 14CXN88 14-Inch Coaxial Driver Specifications

- Nominal Basket Diameter: 343 mm (13.5 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance:
- LF: 6.8 Ω
- HF: 8.8 Ω
- Frequency Response: 45 - 18000 Hz
- Dispersion Angle: 80°
- Woofer Cone Treatment: WP Waterproof Front Side
- Magnet Material: Neodymium Ring

Specifications for LF Unit:
- LF Sensitivity: 99.0 dB
- LF Nominal impedance: 8 Ω
- LF Nominal Power Handling: 500 W
- LF Continuous Power Handling: 1000 W
- LF Voice Coil Diameter: 88 mm (3.5 inches)
- LF Winding Material: Aluminium
- LF Flux Density: 1.05 T
- Former Material: Glass Fibre
- Winding Depth: 22.0 mm (0.87 inches)
- Magnetic Gap Depth: 11.0 mm (0.43 inches)

Specifications for HF Unit:
- HF Sensitivity: 106.0 dB
- HF Nominal impedance: 8 Ω
- HF Nominal Power Handling: 80 W
- HF Continuous Power Handling: 160 W
- HF Voice Coil Diameter: 75 mm (3.0 inches)
- HF Winding Material: Aluminium
- HF Flux Density: 1.75 T
- Diaphragm material: Titanium
- Recommended crossover: 1.2 kHz
- Inductance: 0.14 mH

Parameters:
- Fs: 46 Hz
- Re: 4.7 Ω
- Qes: 0.27
- Qms: 13.0
- Qts: 0.26
- Vas: 100.0 dm³
- Sd: 707.0 cm²
- η₀: 3.6 %
- Xmax: ± 8.5 mm
- Xvar: ± 9.0 mm
- Mms: 83.0 g
- Bl: 20.7 Txm
- Le: 0.95 mH
- EBP: 170 Hz

Physical:
- Overall diameter: 359 mm (14.13 inches)
- Bolt circle diameter: 343 mm (13.5 inches)
- Baffle cutout diameter: 326 mm (12.83 inches)
- Depth: 200 mm (7.87 inches)
- Flange and gasket thickness: 15 mm (0.59 inches)
- Net weight: 7.4 kg

Further Product Information Below

B & C 14CXN88 (8 Ohm) Data Sheet (PDF)

B & C 14CXN88 Technical Drawing (PDF)
