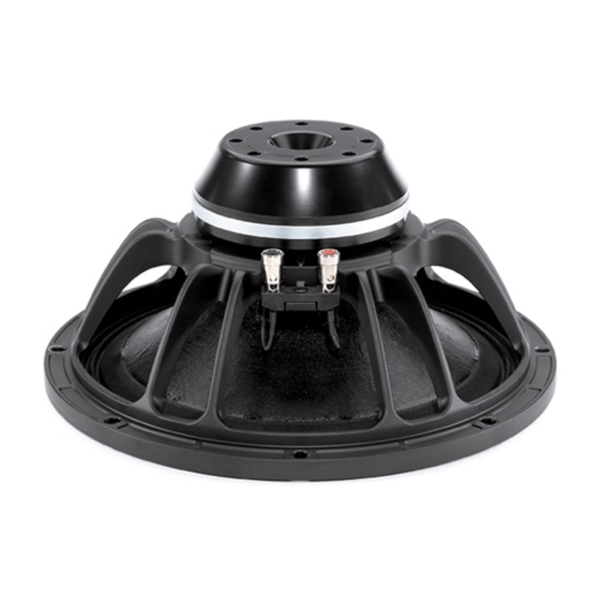

B&C 12NW76 12-Inch Speaker Driver - 500W RMS, 8 Ohm, Spring Terminals

Name: B&C 12NW76 12-Inch Speaker Driver - 500W RMS, 8 Ohm, Spring Terminals
Brand: B&C
SKU: JP101858
Price: 210.08 GBP
Availability: InStock

Price Each £175.07 (£210.08 Including VAT at 20%)

REF: JP101858

Quantity:

B&C 12NW76 12-Inch Speaker Driver - 500W RMS, 8 Ohm, Spring Terminals

The B&C 12NW76 12-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Recone Kit: JP61190 (B&C RCK12NW768)

Click Here for Printer Friendly Version

B&C 12NW76 12-Inch Speaker Driver Features

- 1000 W continuous program power capacity
- 76 mm (3 inch) copper voice coil
- 40 - 2000 Hz response
- 98.5 dB sensitivity
- Waterproofed cone
- Neodymium ring magnet assembly
- Aluminium demodulating ring allows a very low distortion figure
- Ventilated voice coil gap for reduced power compression

B&C 12NW76 12-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 320 mm (12.6 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.9 Ω
- Nominal Power Handling: 500 W
- Continuous Power Handling: 1000 W
- Frequency Response: 40 - 2000 Hz
- Sensitivity (1W/1m): 98.5 dB
- Voice Coil Diameter: 76 mm (3 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 19 mm (0.75 inches)
- Magnetic Gap Depth: 11.0 mm (0.43 inches)
- Flux Density: 1.3 T
- Connection: Spring Terminals

Design:
- Surround shape: Triple Roll
- Cone shape: Exponential
- Magnet material: Neodymium Ring
- Spider: Single
- Pole design: T-Pole
- Woofer cone treatment: TWP Waterproof Both Sides
- Recommended enclosure: 50.0 dm³
- Recommended tuning: 60 Hz

Parameters:
- Fs: 40 Hz
- Re: 5.3 Ω
- Qes: 0.17
- Qms: 3.7
- Qts: 0.16
- Vas: 76.0 dm³
- Sd: 522.0 cm²
- η₀: 2.8 %
- Xmax: ± 8.0 mm
- Xvar: ± 10.0 mm
- Mms: 77.0 g
- Bl: 25.5 Txm
- Le: 1.25 mH
- EBP: 235 Hz

Physical:
- Overall diameter: 315 mm (12.4 inches)
- Bolt circle diameter: 298 mm (11.73 inches)
- Baffle cutout diameter: 283 mm (11.14 inches)
- Depth: 147 mm (5.79 inches)
- Flange and gasket thickness: 14 mm (0.55 inches)
- Air volume occupied by driver: 2.5 dm³
- Net weight: 4.9 kg

Further Product Information Below

B & C 12NW76 (8 Ohm) Data Sheet (PDF)

B & C 12NW76 Technical Drawing (PDF)
