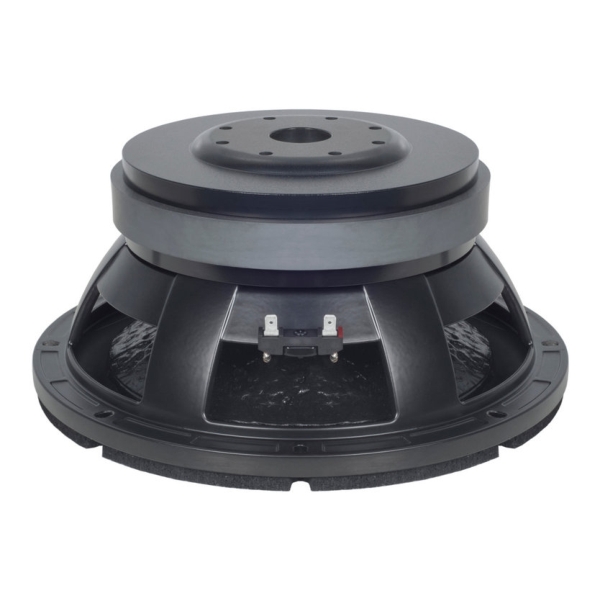

B&C 12FG100 12-Inch Speaker Driver - 1000W RMS, 8 Ohm, Spring Terminals

Price Each £177.15 (£212.58 Including VAT at 20%)

REF: JP108458

Quantity:

B&C 12FG100 12-Inch Speaker Driver - 1000W RMS, 8 Ohm, Spring Terminals

The B&C 12FG100 12-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C 12FG100 12-Inch Speaker Driver Features

- 2000 W continuous program power capacity
- 100 mm (4 in) copper voice coil
- 34 - 1000 Hz response
- 91 dB sensitivity
- Waterproofed cone
- Ferrite magnet assembly
- Aluminium demodulating ring for very low distortion
- Double silicone spider with optimized compliance
- Ventilated voice coil gap for reduced power compression

B&C 12FG100 12-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 320 mm (12.6 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 5.9 Ω
- Nominal Power Handling: 1000 W
- Continuous Power Handling: 2000 W
- Frequency Response: 34 - 1000 Hz
- Sensitivity (1W/1m): 91 dB
- Voice Coil Diameter: 100 mm (4 inches)
- Winding Material: Copper
- Former Material: Glass Fibre
- Winding Depth: 26.5 mm (1.04 inches)
- Magnetic Gap Depth: 12 mm (0.47 inches)
- Flux Density: 1.1 T
- Connection: Spade Terminals

Design:
- Surround shape: Roll
- Cone shape: Radial
- Magnet material: Ferrite Ring
- Spider: Double Silicone
- Pole design: T-Pole
- Woofer cone treatment: TWP Waterproof Both Sides
- Recommended enclosure: 50.0 dm³
- Recommended tuning: 34 Hz

Parameters:
- Fs: 34 Hz
- Re: 4.9 Ω
- Qes: 0.39
- Qms: 5.1
- Qts: 0.36
- Vas: 49.0 dm³
- Sd: 522.0 cm²
- η₀: 0.49 %
- Xmax: ± 10.3 mm
- Xvar: ± 14.0 mm
- Mms: 167.8 g
- Bl: 21.4 Txm
- Le: 0.96 mH
- EBP: 87 Hz

Physical:
- Overall diameter: 320 mm (12.6 inches)
- Bolt circle diameter: 299 mm (11.77 inches)
- Baffle cutout diameter: 282 mm (11.1 inches)
- Depth: 150 mm (5.91 inches)
- Flange and gasket thickness: 20 mm (0.81 inches)
- Air volume occupied by driver: 3.0 dm³
- Net weight: 12.5 kg

Further Product Information Below

B & C 12FG100 (8 Ohm) Data Sheet (PDF)

B & C 12FG100 Technical Drawing (PDF)
