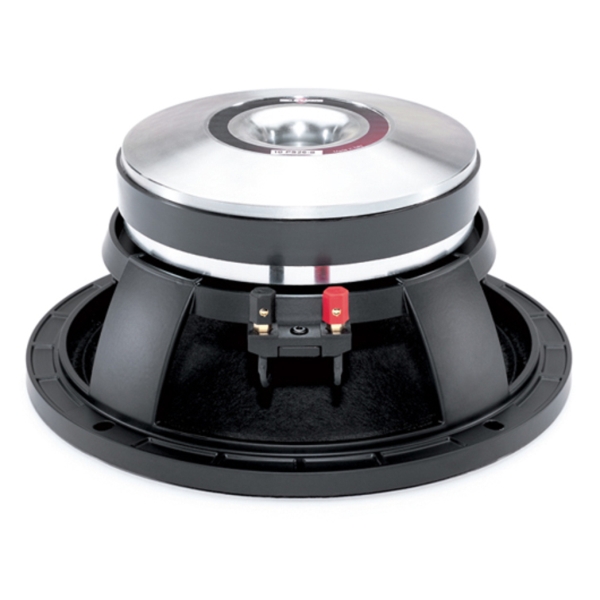

B&C 10PS26 10-Inch Speaker Driver - 350W RMS, 8 Ohm, Spade Terminals

B&C 10PS26 10-Inch Speaker Driver Features

- 700 W continuous program power capacity
- 76 mm (3 in) aluminium voice coil

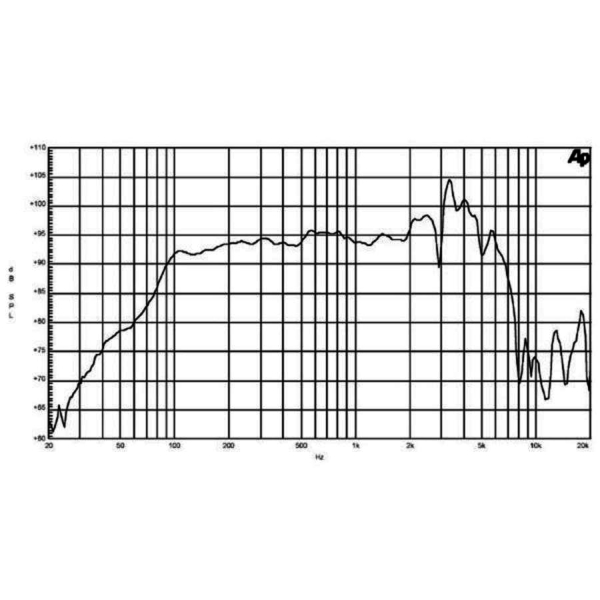

- 55 - 4000 Hz response
- 96 dB sensitivity
- Shorting copper cap for extended HF response

B&C 10PS26 10-Inch Speaker Driver Specifications

- Nominal Diameter: 250 mm (10.0 in)

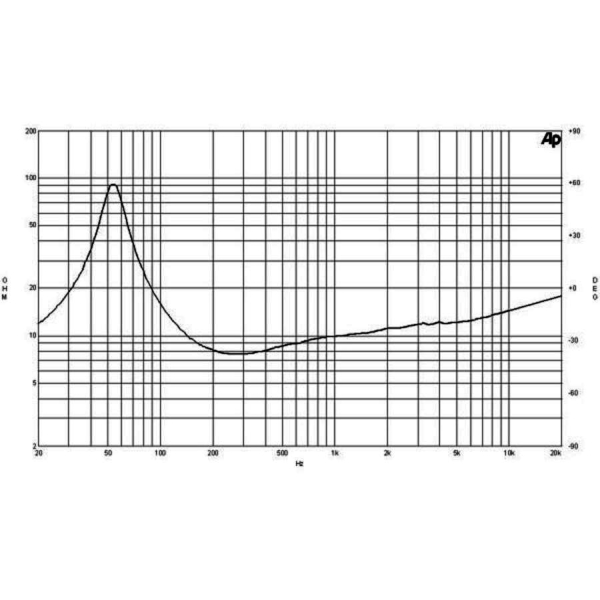

- Nominal Impedance: 8 Ω
- Minimum Impedance: 7.1 Ω
- Nominal Power Handling: 350 W
- Continuous power handling: 700 W
- Sensitivity (1W/1m): 96.0 dB
- Frequency Range: 55 - 4000 Hz
- Voice Coil Diameter: 76 mm (3.0 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 18.0 mm (0.71 in)
- Magnetic Gap Depth: 10.0 mm (0.4 in)
- Flux Density: 0.9 T

Design:
- Surround Shape: Double Roll
- Cone Shape: Exponential
- Magnet Material: Ferrite
- Spider: Single
- Pole Design: T-Pole
- Woofer Cone Treatment: None

Parameters:
- Resonance Frequency: 54 Hz
- Re: 6.0 Ω
- Qes: 0.33
- Qms: 2.9
- Qts: 0.29
- Vas: 38.0 dm³ (1.3 ft³)
- Sd: 320.0 cm² (49.1 in²)
- ??: 1.8 %
- Xmax: ± 5.5 mm
- Xvar: ± 5.0 mm
- Mms: 33.0 g
- Bl: 14.1 Txm
- Le: 1.2 mH
- EBP: 163 Hz

Physical:
- Overall Diameter: 262 mm (10.31 in)
- Bolt Circle Diameter: 245 mm (9.65 in)
- Baffle Cutout Diameter: 230.0 mm (8.8 in)
- Depth: 123 mm (4.84 in)
- Flange and Gasket Thickness: 14 mm (0.55 in)
- Net Weight: 6.05 kg (13.34 lb)
