B&C 10NDL88 10-Inch Speaker Driver - 700W RMS, 8 Ohms, Spade Terminals

B&C 10NDL88 10-Inch Speaker Driver Features

- 1400 W continuous program power capacity
- 88 mm (3.5 in) aluminIum wire voice coil
- 61 - 2500 Hz response
- 96 dB sensitivity
- Neodymium magnet allows a very light yet powerful motor assembly
- Aluminium demodulating ring for very low distortion
- Ventilated voice coil gap for reduced power

B&C 10NDL88 10-Inch Speaker Driver Specifications

- Nominal Diameter: 250 mm (10.0 in)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 6.3 Ω
- Nominal Power Handling: 700 W
- Continuous power handling: 1400 W
- Sensitivity (1W/1m): 96.0 dB
- Frequency Range: 61 - 2500 Hz
- Voice Coil Diameter: 88 mm (3.5 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 21.7 mm (0.85 in)
- Magnetic Gap Depth: 11.0 mm (0.43 in)
- Flux Density: 1.05 T

Design:
- Surround Shape: Triple Roll
- Cone Shape: Curvilinear
- Magnet Material: Neodymium Inside Slug
- Spider: Double Silicone
- Pole Design: T-Pole
- Woofer Cone Treatment: WP Waterproof Front Side

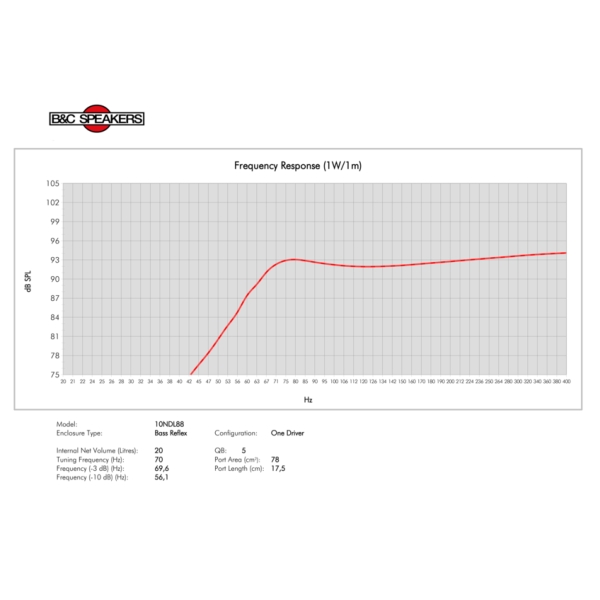

- Recommended Enclosure: 20.0 dm³ (0.71 ft³)
- Recommended Tuning: 70 Hz

Parameters:

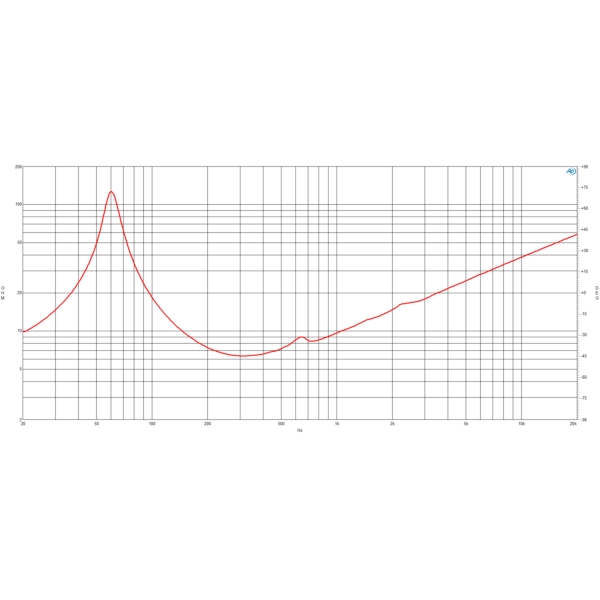

- Resonance Frequency: 61 Hz
- Re: 5.1 Ω
- Qes: 0.26
- Qms: 7.3
- Qts: 0.25
- Vas: 18.4 dm³ (0.65 ft³)
- Sd: 320.0 cm² (49.6 in²)
- ??: 1.59 %
- Xmax: ± 8.1 mm
- Xvar: ± 7.5 mm
- Mms: 53.5 g
- Bl: 20.0 Txm
- Le: 1.18 mH
- EBP: 234 Hz

Physical:
- Overall Diameter: 261 mm (10.28 in)
- Bolt Circle Diameter: 245 mm (9.65 in)
- Baffle Cutout Diameter: 230.0 mm (9.06 in)
- Depth: 128 mm (5.04 in)
- Flange and Gasket Thickness: 15 mm (0.59 in)
- Air Volume Occupied by Driver: 1.5 dm³ (0.05 ft³)
- Net Weight: 4.6 kg (10.14 lb)
