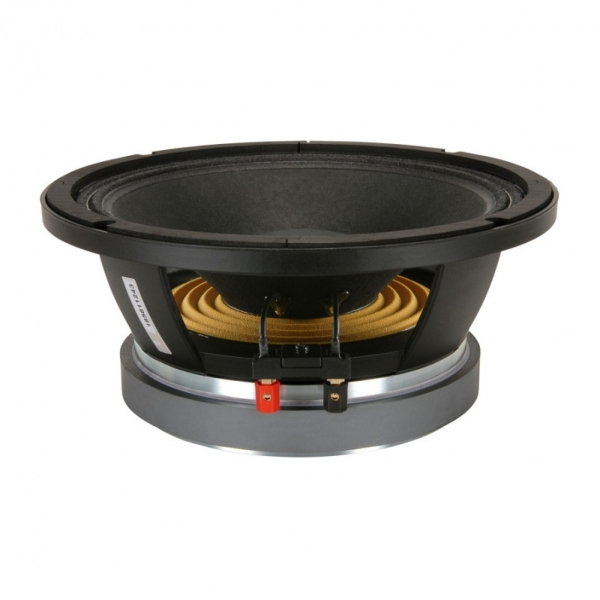

B&C 10MD26 10-Inch Speaker Driver - 350W RMS, 16 Ohm

Name: B&C 10MD26 10-Inch Speaker Driver - 350W RMS, 16 Ohm
Brand: B&C
SKU: JP61314
Price: 138.6 GBP
Availability: InStock

Price Each £115.50 (£138.60 Including VAT at 20%)

REF: JP61314

Quantity:

B&C 10MD26 10-Inch Speaker Driver - 350W RMS, 16 Ohm

The B&C 10MD26 10-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C 10MD26 10-Inch Speaker Driver Features

- 700 W continuous program power capacity
- 76 mm (3 inch) aluminium voice coil
- 80 - 4000 Hz response
- 100 dB sensitivity

B&C 10MD26 10-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 250 mm (10 inches)
- Nominal Impedance: 16 Ω
- Nominal Power Handling: 350 W
- Continuous Power Handling: 700 W
- Frequency Response: 80 - 4000 Hz
- Sensitivity (1W/1m): 100.0 dB
- Voice Coil Diameter: 76 mm (3 inches)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 11 mm (0.43 inches)
- Magnetic Gap Depth: 8.0 mm (0.31 inches)
- Flux Density: 1.45 T
- Connection: Spade Terminals

Design:
- Surround shape: Double Roll
- Cone shape: Exponential
- Magnet material: Ferrite
- Spider: Single
- Pole design: T-Pole
- Woofer cone treatment: None

Parameters:
- Fs: 76 Hz
- Vas: 20.0 dm³
- Sd: 320.0 cm²
- Xmax: ± 1.5 mm
- Xvar: ± 4.5 mm
- Mms: 31.0 g

Physical:
- Overall diameter: 262 mm (10.3 inches)
- Bolt circle diameter: 245 mm (9.6 inches)
- Baffle cutout diameter: 230 mm (8.8 inches)
- Depth: 124 mm (4.9 inches)
- Flange and gasket thickness: 14 mm (0.55 inches)
- Air volume occupied by driver: 2.6 dm³
- Net weight: 7.3 kg

Further Product Information Below

B & C 10MD26 Technical Drawing (PDF)
