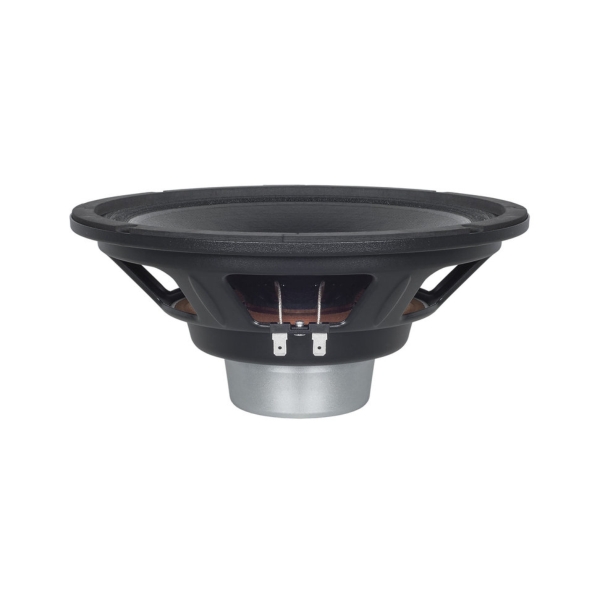

B&C 10CLA64 10-Inch Speaker Driver - 250W RMS, 16 Ohms

Price Each £95.77 (£114.92 Including VAT at 20%)

REF: JP108444

Quantity:

B&C 10CLA64 10-Inch Speaker Driver - 250W RMS, 16 Ohms

The B&C 10CLA64 10-Inch Speaker Driver offered with a high temperature copper-clad aluminum voice coil, is rewarded with higher sensitivity and smoother high frequency response. Larger motor makes these a good fit for many more applications, especially where flown, and manufacturing design means the CLA series can be price competitive with ferrite motor designs offering similar performance.

Click Here for Printer Friendly Version

B&C 10CLA64 10-Inch Speaker Driver Features

- 500 W continuous program power capacity
- 64 mm (2.5 in) aluminum voice coil
- 75 - 4000 Hz response
- 96 dB sensitivity

B&C 10CLA64 10-Inch Speaker Driver Specifications

- Nominal Diameter: 250 mm (10.0 in)
- Nominal Impedance: 16 Ω
- Minimum Impedance: 12 Ω
- Nominal Power Handling: 250 W
- Continuous power handling: 500 W
- Sensitivity (1W/1m): 96.0 dB
- Frequency Range: 75 - 4000 Hz
- Voice Coil Diameter: 64 mm (2.5 in)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 13.0 mm (0.51 in)
- Magnetic Gap Depth: 8.0 mm (0.31 in)
- Flux Density: 1.15 T

Design:
- Surround Shape: Double Roll
- Cone Shape: Exponential
- Magnet Material: Neodymium Inside Slug
- Spider: Single
- Pole Design: Straight Pole
- Woofer Cone Treatment: WP Waterproof Front Side
- Recommended Enclosure: 29.0 dm³ (1.02 ft³)
- Recommended Tuning: 65 Hz

Parameters:
- Resonance Frequency: 72 Hz
- Re: 10.6 Ω
- Qes: 0.43
- Qms: 3.8
- Qts: 0.41
- Vas: 21.0 dm³ (0.74 ft³)
- Sd: 320.0 cm² (49.6 in²)
- ??: 1.64 %
- Xmax: ± 4.5 mm
- Xvar: ± 5.0 mm
- Mms: 33.6 g
- Bl: 18.8 Txm
- Le: 0.7 mH
- EBP: 156 Hz

Physical:
- Overall Diameter: 257 mm (10.12 in)
- Bolt Circle Diameter: 245 mm (9.65 in)
- Baffle Cutout Diameter: 232.0 mm (9.13 in)
- Depth: 111 mm (4.39 in)
- Flange and Gasket Thickness: 9 mm (0.35 in)
- Air Volume Occupied by Driver: 1.0 dm³ (0.04 ft³)
- Net Weight: 2.45 kg (5.4 lb)

Further Product Information Below

B & C 10CLA64 (16 Ohm) Data Sheet (PDF)

B & C 10CLA64 Technical Drawing (PDF)
