B&C 10CL51 10-Inch Speaker Driver - 150W RMS, 8 Ohms, Spade Terminals

Price Each £73.52 (£88.22 Including VAT at 20%)

REF: JP61126

Quantity:

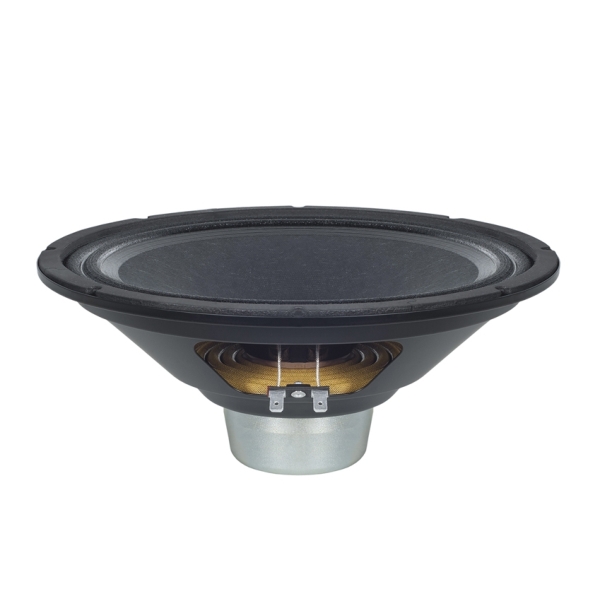

B&C 10CL51 10-Inch Speaker Driver - 150W RMS, 8 Ohms

The B&C 10CL51 10-Inch Speaker Driver boasts legendary B&C technology made with their famously critical quality control, allowing loudspeaker designs with appropriately scaled performance.

Click Here for Printer Friendly Version

B&C 10CL51 10-Inch Speaker Driver Features

- 300 W continuous program power capacity
- 51 mm (2 inch) aluminium voice coil

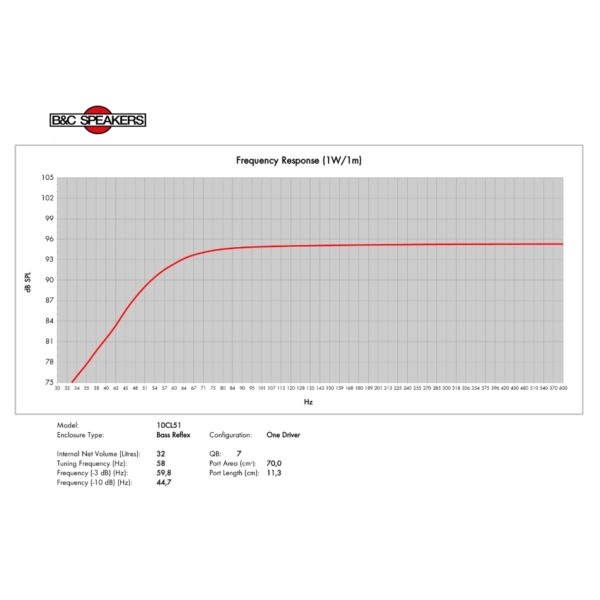

- 60 - 4000 Hz response
- 96 dB sensitivity

B&C 10CL51 10-Inch Speaker Driver Specifications

- Nominal Basket Diameter: 250 mm (10 inches)
- Nominal Impedance: 8 Ω
- Minimum Impedance: 5.8 Ω
- Nominal Power Handling: 150 W
- Continuous Power Handling: 300 W
- Frequency Response: 60 - 4000 Hz
- Sensitivity (1W/1m): 96.0 dB
- Voice Coil Diameter: 51 mm (2 inches)
- Winding Material: Aluminium
- Former Material: Glass Fibre
- Winding Depth: 15 mm (0.59 inches)
- Magnetic Gap Depth: 8.0 mm (0.31 inches)
- Flux Density: 1.05 T
- Connection: Spade Terminals

Design:
- Surround shape: Double Roll
- Cone shape: Exponential
- Magnet material: Neodymium Inside Slug
- Spider: Single
- Pole design: Straight Pole
- Woofer cone treatment: None

Parameters:
- Fs: 58 Hz
- Re: 5.2 Ω
- Qes: 0.42
- Qms: 3.5
- Qts: 0.38
- Vas: 36.0 dm³
- Sd: 320.0 cm²
- η₀: 1.57 %
- Xmax: ± 5.5 mm
- Xvar: ± 5.5 mm
- Mms: 30.5 g
- Bl: 11.6 Txm
- Le: 0.8 mH
- EBP: 138 Hz

Physical:
- Overall diameter: 257 mm (10.1 inches)
- Bolt circle diameter: 246 mm (9.7 inches)
- Baffle cutout diameter: 230 mm (9.1 inches)
- Depth: 108 mm (4.25 inches)
- Flange and gasket thickness: 7 mm (0.28 inches)
- Air volume occupied by driver: 1.0 dm³
- Net weight: 1.3 kg

Further Product Information Below

B & C 10CL51 (8 Ohm) Data Sheet (PDF)

B & C 10CL51 Technical Drawing (PDF)
