Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line

Name: Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line
Brand: Adastra
SKU: 5015972194522
Price: 347.1 GBP
Availability: InStock

Price Each £289.25 (£347.10 Including VAT at 20%)

REF: JP104264

Quantity:

Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line

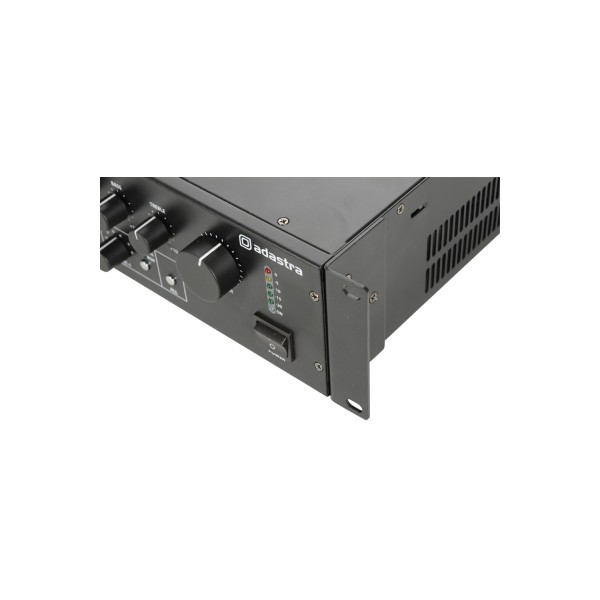

The Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line is a 240W mixer-amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

Click Here for Printer Friendly Version

Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line Features

- Built-in USB/SD player with Bluetooth and FM tuner
- Compatible with CS4 call station (JP104248)
- 4 individual volume attenuators
- Switchable +20V phantom power
- Send/return loop for connection to audio processors or amplifiers
- Supplied with 19 inch rack-mount ears (2U)

Adastra RM244V Mixer-Amplifier with 4-Zone Paging, 60W @ 100V Line Specifications

- Power supply: 110/230Vac, 50/60Hz (IEC)
- Output power (RMS): 240W (shared across 4 zones @ 100V)
- Inputs:
  - 3 x mic/line (jack/XLR), 1 x aux (RCA)
- Input sensitivity:
  - Mic -47dBV
  - Line -10dBV
- Input impedance:
  - Mic 5kΩ
  - Line 1kΩ
- Paging station inputs: 2 x RJ45 (for optional RM-4B paging stations)
- Line output: RCA
- Sends / returns: Pre out, amp in (RCA)
- Channel controls:
  - Ch1
  - Ch2
  - Ch3
  - Media
  - Aux volume
- Output controls:
  - Master volume
  - 4 x zone volumes & mutes
- Equaliser:
  - Bass 100Hz ±10dB
  - Treble 10kHz ±10dB
- Phantom power: +20V (switchable inputs 1-3)
- Audio source:
  - USB/SD player
  - FM tuner
  - Bluetooth receiver
- Bluetooth version: 2.1
- Fire alarm contacts: 24V screw terminals
- THD +N: <2% @ 1kHz (rated power)
- Protection:
  - Short circuit
  - Overload
  - Overheat
- Speaker outputs: 4 x 100V (modular terminal block)
- Dimensions: 430 x 315 x 89mm
- Weight: 10.4kg

Further Product Information Below

Adastra RM244V Manual (PDF)
