Adastra ML622 1U Mic/Line Rack Mixer

Name: Adastra ML622 1U Mic/Line Rack Mixer
Brand: Adastra
SKU: 5015972178584
Price: 155.21 GBP
Availability: InStock

Price Each £129.34 (£155.21 Including VAT at 20%)

REF: JP104251

Quantity:

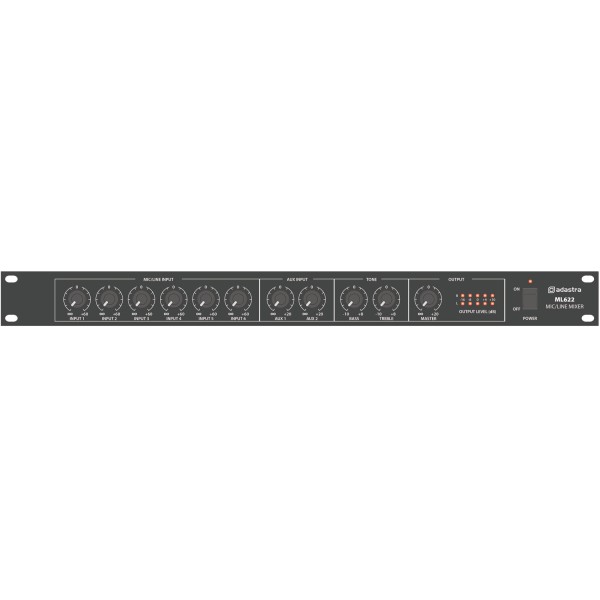

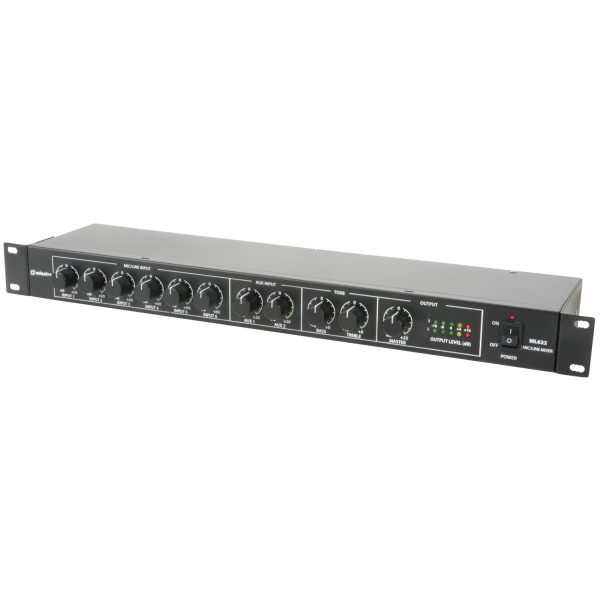

Adastra ML622 1U Mic/Line Rack Mixer

The Adastra ML622 1U Mic/Line Rack Mixer is a rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.

Click Here for Printer Friendly Version

Adastra ML622 1U Mic/Line Rack Mixer Features

- 6 switchable mic or line inputs
- 2 stereo aux inputs
- Individually switchable phantom power
- 24Vdc power option

Adastra ML622 1U Mic/Line Rack Mixer Specifications

- Power supply: 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
- Fuse: T1AL 250V (mains) or F500mA (24Vdc)
- Phantom power: +20Vdc (switchable)
- Inputs
  - Microphone/Line: 6 x balanced XLR
  - Aux: 2 x L+R RCA
- Outputs: Left + Right XLR, mono 6.3mm Jack, L+R RCA (Record Out)
- Controls: 6 x Mic level, 2 x Aux level, Treble, Bass, L+R output
- Rear panel controls: Aux muting level, priority input level
- Input impedance: 3.3kΩ (mic/line), 10kΩ (aux)
- Frequency response:
  - Microphone: 20Hz - 18kHz
  - Line: 14Hz - 20kHz
  - Aux: 10Hz - 23kHz
- Input sensitivity:
  - Microphone: -45dBV
  - Line/Aux -10dBV
- Signal to noise ratio:
  - Microphone: 55dB
  - Aux/Line 60dB
- THD 0.05%
- Dimensions 482 x 130 x 44mm
- Weight 1.43kg

Further Product Information Below

Adastra ML622 Manual (PDF)
