Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms

Name: Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms
Brand: Adastra
SKU: 5015972214848
Price: 257.11 GBP
Availability: InStock

Price Each £214.26 (£257.11 Including VAT at 20%)

REF: JP103780

Quantity:

Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms

The Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms is a Multi-Zone Mixer/Amplifier with 2 microphone inputs and a switchable stereo input for each zone. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a B/T wireless receiver and FM radio tuner. A rotary switch for each output zone selects the stereo playback audio from a choice of 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Mic inputs 1 and 2 are live to all output zones at all times. Speakers are connected from the rear panel Euroblock terminals to deliver up to 200W per output at 4 Ohms. Designed for installations requiring high quality stereo sound in multiple rooms or listening areas.

Click Here for Printer Friendly Version

Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms Features

- Available with 3 or 4 independent stereo outputs
- Media player with USB/SD playback
- FM radio tuner with external aerial connection
- B/T wireless receiver

Adastra A6 Tri Stereo Multi-Zone Mixer-Amplifier, 6x 200W @ 4 Ohms Specifications

- Power supply: 230Vac, 50Hz (IEC)
- Fuse: F5A, 250V
- Amplifier : construction: Class D
- Frequency response: 20Hz - 20kHz ±0.5dB
- Microphone inputs: 2 x 6.3mm jack (mono)
- Line inputs: Line 1: L+R (6.3mm jack/RCA), Line 2: L+R (RCA)
- Input sensitivity : line: 0.775Vrms
- Line output: 6 x RCA

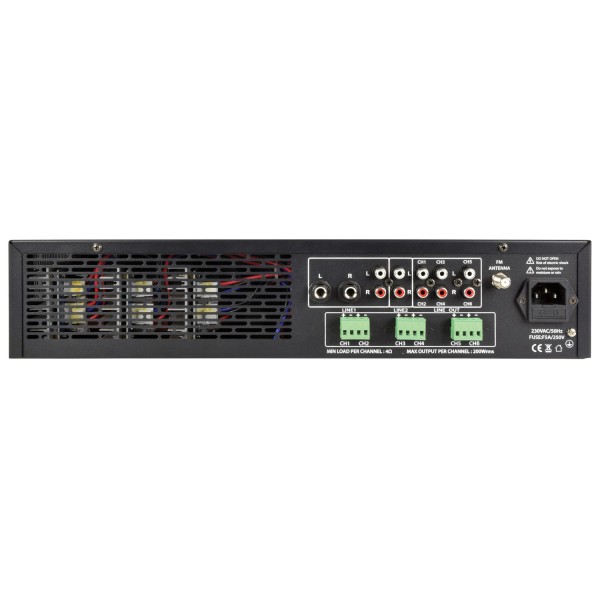

- Speaker outputs: 3 x 4-terminal Euroblock

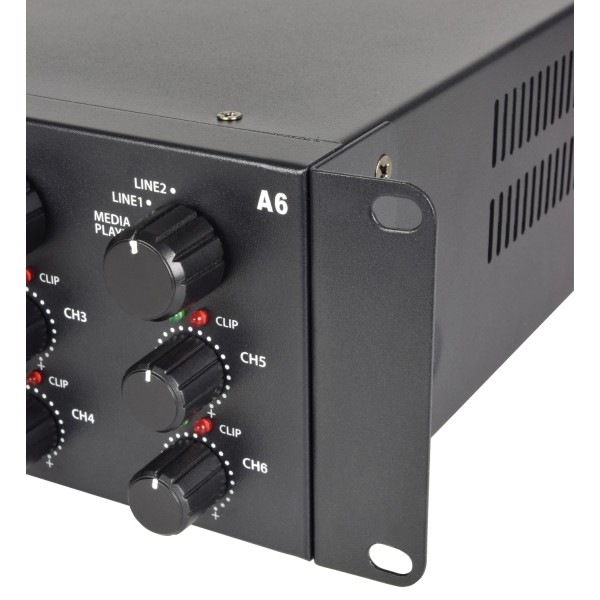

- Output controls: 3 x source select, Ch1 - Ch6 level
- Output power (RMS):
- 4 Ohms: 6 x 200W
- 8 Ohms: 6 x 100W
- Auxiliary input: 3.5mm stereo jack
- Input sensitivity : aux: 0.480Vrms
- Input impedance: 20 kΩ (balanced), 10 kΩ (unbalanced)
- Audio source: USB/SD mp3 playback, FM tuner, B/T receiver
- B/T wireless version: 2.3
- Input controls: Aux, Media, Line1, Line2, Mic1, Mic2, Talkover
- Antenna connection: F type (FM tuner)
- Protection: Thermal, over-current, over-voltage, short-circuit

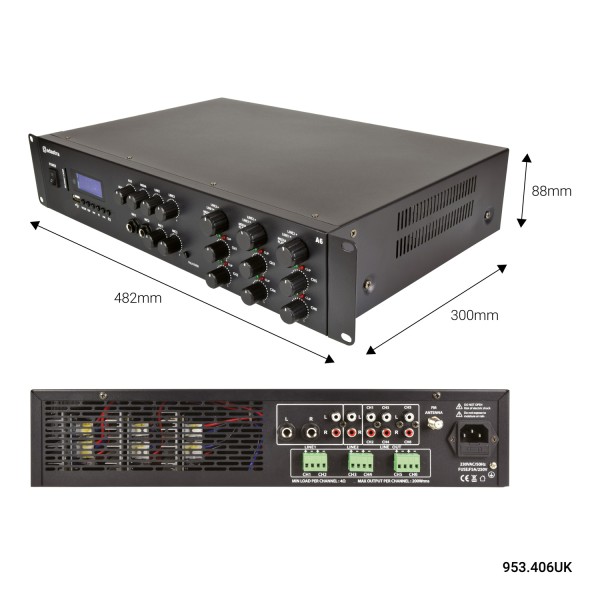

- Dimensions: 482 x 300 x 88mm
- Weight: 8.26kg

Further Product Information Below

Adastra A6 Manual (PDF)
