W Audio DQM 800H Quad Handheld UHF Radio Microphone System - Channel 70

Name: W Audio DQM 800H Quad Handheld UHF Radio Microphone System - Channel 70
Brand: W Audio
SKU: 0759478548551
Price: 345.38 GBP
Availability: InStock

Price Each £287.82 (£345.38 Including VAT at 20%)

REF: JP100519

Quantity:

W Audio DQM 800H Quad Handheld UHF Radio Microphone System - Channel 70

The W Audio DQM 800H Quad Handheld UHF Radio Microphone System is a quad UHF handheld systems designed for the professional user featuring a diversity, full width receiver for the ultimate in RF stability. They have a tuning bandwidth up to 9Mhz+2Mhz with 99 selectable frequencies on the 823-832Mhz CH65 and 863-865Mhz CH70 bands. These systems offer crystal clear sound reproduction and rock-solid reliability, along with outstanding vocal reproduction and stable wireless connectivity allowing freedom of movement on stage. Handheld transmitters feature ergonomic design with a rackmount housing to stand up to the rigours of the road. The flexibility of the handheld systems may be increased by purchasing the additional DQM belt pack kit.

Click Here for Printer Friendly Version

W Audio DQM 800H Quad Handheld UHF Radio Microphone System Features

- UHF band, Phase Lock Loop (PLL) offering stable RF transmission
- Preset frequency groups plus a user definable frequency group allows users to tune the operating frequency of each channel
- OLED display offers a wide viewing angle while remaining bright in darkened conditions
- Frequency, Channel, RF and AF signal strength meters
- Combined use jog wheel button operation for fast menu navigation
- 1U rack metal housing with integrated brackets, include antenna cable interface for front-mount antenna
- Integrated antenna splitter for reduced RF interference
- Balanced XLR output for each channel plus unbalanced mixed output
- Automatic frequency SCAN function
- IR infrared frequency synchronisation via infrared interface
- Mute circuitry for reduced noise
- Flat frequency response: 50Hz-16KHz
- Dynamic, cardioid handheld microphone capsule
- 1U full width rack mount receiver
- Up to 16 DQM transmitters can be used simultaneously when configured manually
- Audio output level 400mV
- Dynamic Range 96dB

W Audio DQM 800H Quad Handheld UHF Radio Microphone System Specifications

Receiver specifications:
- Power supply: 14V DC (mains adaptor supplied)
- Dimensions (H x W x D): 45 x 482 x 215mm
- Weight: 2.0kg

Handheld Transmitter:
- Battery configuration: 2 x 1.5V AA (not supplied)
- Dimensions (H x W x D): 250 x 45 x 45mm
- Weight: 0.4kg

Further Product Information Below

W Audio DQM 800H Manual (PDF)

W Audio DQM 800H CE Certification (PDF)

**sRecentPrefix**				<div class="d-flex flex-wrap align-items-center justify-content-end position-relative"><h3 class="theme-title"><span>Recently Viewed</span></h3><div class="button-sec"><button class="btn btn-default pull-left recenthtbuttonleft" id="scrollforwardrecent" type="button" value="<< Previous" onclick="ScrollForwardRecent();"><img src="icon-left-arrow-black.png" alt="Previous" /></button><button class="btn btn-default pull-right recenthtbuttonright" id="scrollbackrecent" type="button" value="    Next >>" onclick="ScrollBackRecent();"><img src="icon-right-arrow-black.png" alt="Next" /></button></div></div><div class="d-flex flex-wrap justify-content-center footer-product-list recent-products marketing-list"> **sRecentImageRowPrefix**	 **sRecentImageItem**			<div class="marketing-list-entry"><div class="thumbnail no-price-thumbnail"><a class="col-xs-12 text-center close-btn" href="javascript:DeleteRecent('_PID_', true), hideOrShowFooterProductSec();"><img src="icon-close-black.png" alt="Close" /></a><div class="image"><a _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" class="d-flex align-items-center justify-content-center overflow-hidden"><img class="lazyload img-responsive" border="0" width="75" data-src="_THUMB_" src="_THUMB_" alt="_NAME_" /></a></div><div class="caption"><a class="product-name" _HREF_="_SSURL_?PRODREF=_PID_&NOLOGIN=1" ><span>_NAME_</span></a></div><p class="product-info"><a class="add-to-cart-btn" href="_SSURL_?PRODREF=_PID_&NOLOGIN=1"><img src="cart-icon-w.png" class="cartIcon" alt=""></a></p></div></div> **sRecentImageRowSuffix**	 **sRecentDescRowPrefix**	 **sRecentDescItem**			 **sRecentDescRowSuffix**	 **sRecentPriceRowPrefix**	</div> **sRecentPriceItem**			 **sRecentPriceRowSuffix**	 **sRecentDeleteRowPrefix**	 **sRecentDeleteItem**		 **sRecentDeleteRowSuffix**	 **sRecentSuffix**				 **sRecentEmptyList**

W Audio DQM 800H Quad Handheld UHF Radio Microphone System - Channel 70

Related products:

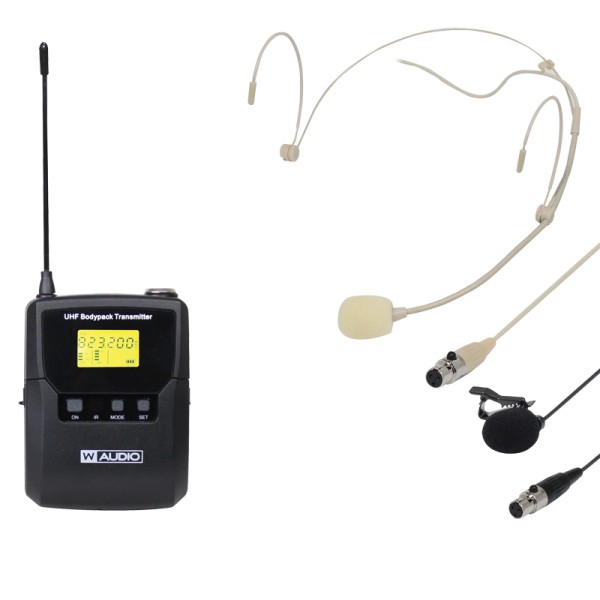

W Audio DQM 800BP Body Pack Kit with Head Set and Lavalier Microphones - Channel 70

W Audio DQM 800H Replacement Handheld Microphone - Channel 70

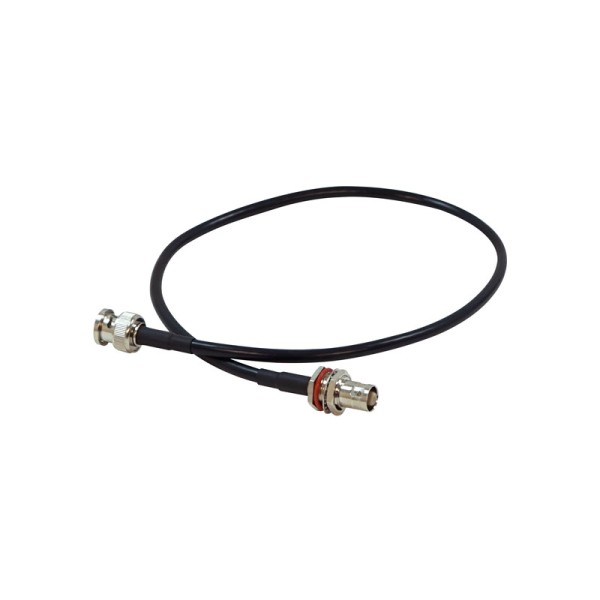

W Audio BNC Antenna Front Mount Cable

W Audio ADS4 UHF Antenna Distributor

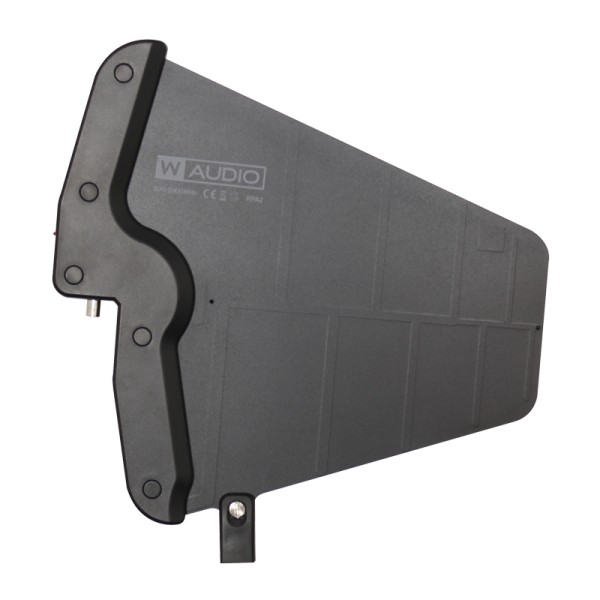

W Audio RPA2 UHF Remote Paddle Antenna
