Zenith MH 212 Dual 12-Inch 3-Way Passive Speaker, 800W @ 4 Ohms

Name: Zenith MH 212 Dual 12-Inch 3-Way Passive Speaker, 800W @ 4 Ohms
Brand: Zenith
SKU: 0723175529168
Price: 870.0 GBP
Availability: InStock

Buy 2+ units for £1661.7 Inc VAT. To Do So, Click Here to Register.

Price Each £725.00 (£870.00 Including VAT at 20%)

REF: JP62443

Quantity:

Zenith MH 212 Dual 12-Inch 3-Way Passive Speaker, 800W @ 4 Ohms

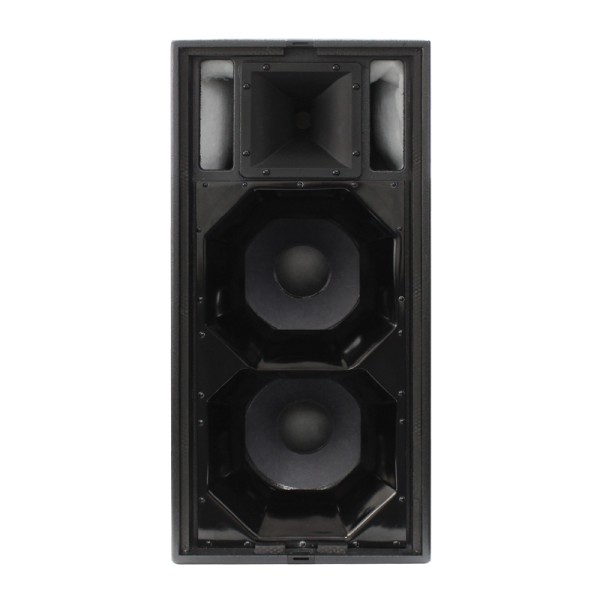

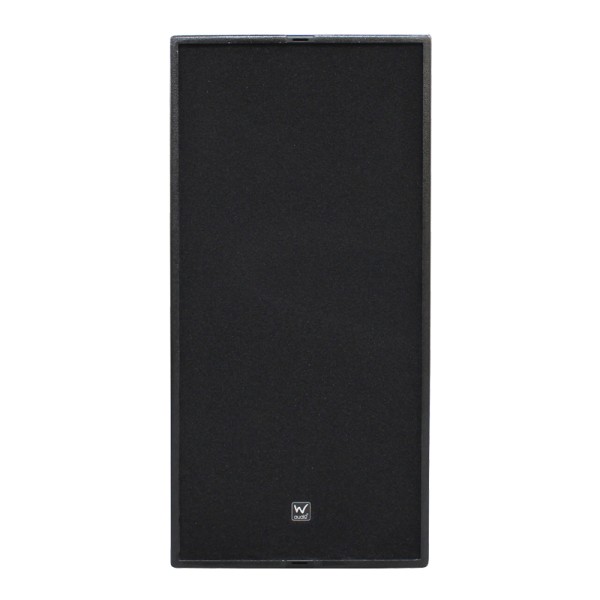

The Zenith MH 212 Dual 12-Inch 3-Way Passive Speaker is a high SPL mid/high enclosure suited to FOH and side fill applications featuring two 12-inch die-cast aluminium chassis, mounted in a braced composite flare, together with a 1.4-inch titanium compression HF driver arranged in a three way, semi horn loaded configuration. The enclosure is constructed from robust birch ply coated with a hard-wearing and durable polyurethane paint finish. It is also fitted with rigging points, steel bar handles, wheel board mounting hardware, rubber feet and a recessed speakON connector plate making it ideal for rental or installation.

Click Here for Printer Friendly Version

Zenith MH 212 FOH Speaker Features

- Continuous power: 800W RMS
- Peak power: 3200W
- Maximum calculated SPL: 138dB
- Sensitivity (1W/1m): 103dB
- Frequency range (-10dB): 50Hz - 18kHz
- Frequency range (-3dB): 60Hz - 16kHz
- Crossover frequency: 600Hz and 1.6kHz
- Horizontal coverage: 80°
- Vertical coverage: 50°
- LF transducers: 2 x 12" (75mm voice coil)
- HF transducer: 1.4" (75mm voice coil)
- Nominal impedance: 4 Ohms
- Connections: 2 x speakON connectors
- Mounting options: 6 x M10 rigging points, 6 x Penn Elcom flying track rigging points

Zenith MH 212 Dual 12-Inch 3-Way Passive Speaker Specifications

- Power:
  - RMS: 800W
  - Peak: 3200W
- Maximum calculated SPL: 138 dB
- Sensitivity (1W/1m): 103 dB
- Frequency range:
  - -10dB: 50 Hz - 18 kHz
  - -3dB: 60 Hz - 16 kHz
- Crossover frequency: 600 Hz and 1.6 kHz
- Horizontal coverage: 80°
- Vertical coverage: 50°
- Drivers:
  - LF: 2x 12-inch with 75mm voice coil
  - HF: 1.4-inch with 35.5mm voice coil
- Nominal impedance: 4 Ω
- Connections: 2x speakON connectors
- Mounting options:
  - 6x M10 rigging points
  - 6x Penn Elcom flying track rigging points

Physical:
- Dimensions (W x H x D): 490 x 1021 x 535 mm
- Weight: 57 kg

Further Product Information Below

Zenith MH 212 Manual (PDF)
