W Audio RM Quartet Handheld Radio Microphone System

Name: W Audio RM Quartet Handheld Radio Microphone System
Brand: W Audio
SKU: 0090125500097
Price: 283.76 GBP
Availability: InStock

Price Each £236.47 (£283.76 Including VAT at 20%)

REF: JP63169

Quantity:

W Audio RM Quartet Handheld Radio Microphone System

The W Audio RM Quartet Handheld Radio Microphone System is designed for many applications, including vocal and public address where up to four handheld transmitters are required. The robust design allows the system to withstand the rigours of the road making it perfect for karaoke, entertainers and performers. The rack mountable receiver features four balanced XLR outputs, one for each channel plus one mixed output via an unbalanced 6.35mm (¼-inch) jack. The receiver features a USB 5V power outlet for charging the handheld receivers with the supplied dual USB cable. The systems flexibility may be increased by adding up to 4 belt pack kits comprising of a belt pack transmitter plus headset and lavalier microphone which can be used in place of the handheld transmitters.

Click Here for Printer Friendly Version

W Audio RM Quartet Handheld Radio Microphone System Features

- 4x handheld transmitters, each with colour code ring

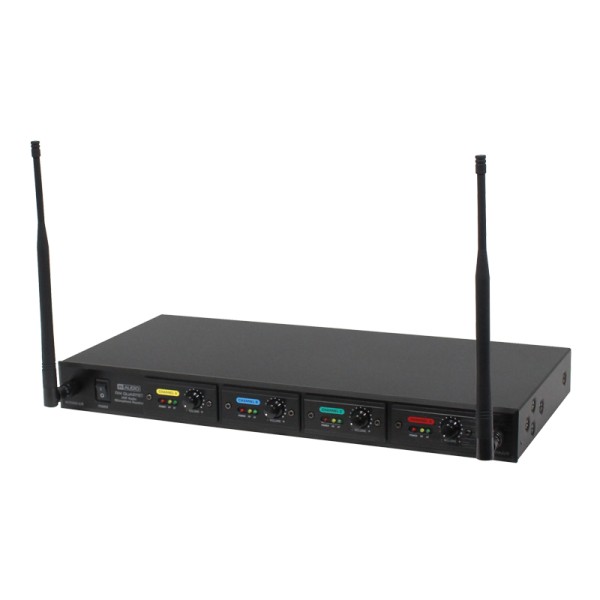

- Four channel, metal UHF receiver
- LED status indicators
- Removable 19-inch rackmount brackets
- 4x balanced XLR outputs
- 1x unbalanced 6.35mm jack mixed output
- 6.35mm (¼-inch) jack to jack patch cable

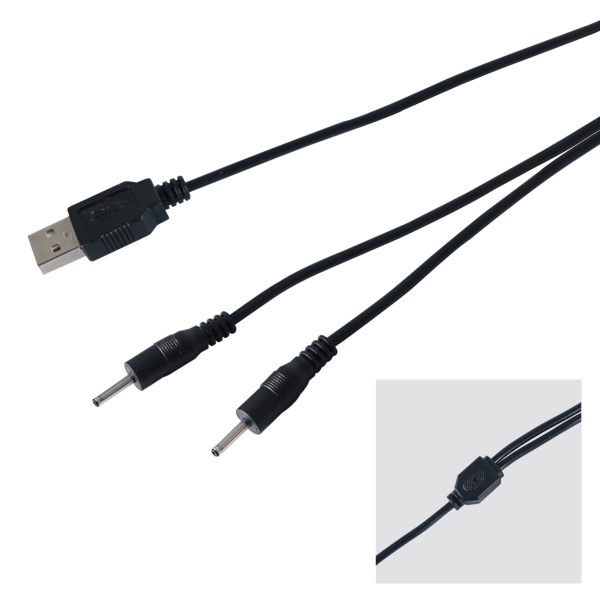

- USB charging via supplied dual USB cable
- Dual squelch circuit
- Front panel mounted BNC aerials
- Channel 70 license free operation

W Audio RM Quartet Handheld Radio Microphone System Specifications

- Carrier Frequency Range: Channel 70 / Band D, 863 - 865 MHz (License Free)
- Fixed Microphone Frequencies (Pre-Programmed):
  - Mic 1: 863.42Mhz
  - Mic 2: 864.99Mhz
  - Mic 3: 864.30Mhz
  - Mic 4: 863.01Mhz
- AF output impedance: 2.2 KΩ
- Maximum output level:
  - Balanced: 0 - 400mV
  - Unbalanced: 0 - 200 mV
- Total harmonic distortion: less than 0.5% @1KHz
- Frequency response: 40 Hz - 18 KHz
- Power supply: DC 12-18V, 500mA (14V, 1.2A adaptor supplied)

Physical:
- Receiver dimensions (W x H x D): 420 x 45 x 220 mm
- Weight: 3.8 kg

Further Product Information Below

W Audio RM Quartet Manual (PDF)

W Audio RM Quartet CE Certification (PDF)
