Transcension UP2 PRO Dimmer 10A

Name: Transcension UP2 PRO Dimmer 10A
Brand: Transcension
SKU: 759478550875
Price: 114.17 GBP
Availability: InStock

Price Each £95.14 (£114.17 Including VAT at 20%)

REF: JP100742

Quantity:

Transcension UP2 PRO 1 Channel Dimmer Pack, This convection cooled dimmer comes with an external remote HTP fader. These dimmers are perfect for using with standalone fixtures in small studios, for follow spots or for incorporating into and expanding DMX systems. Suitable for use with non-incandescent loads when used as a switch pack. W-DMX on board to receive wireless DMX, this unit can then relay the DMX signal via the XLR output.

Click Here for Printer Friendly Version

UP2 PRO 1 Channel Dimmer Pack Features

- Compact, 1 channel DMX/HTP dimmer pack
- W-DMX on board to receive wireless DMX and relay the DMX signal via the XLR output
- 2.4GHz G3, G4 and G5 compatible
- Dim preset - Dim limiter
- HTP function

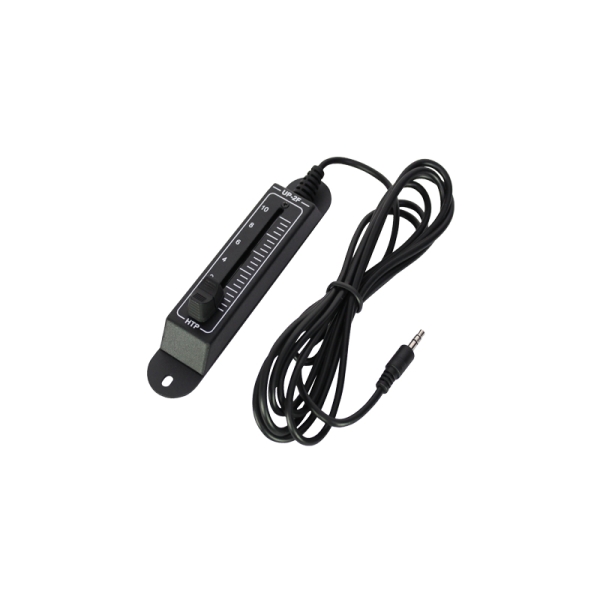

- Remote fader included
- Can be configured as a switch pack
- Easy-to-use mounting bracket
- PowerCON input
- 5-Pin XLR input/output
- Output connector: 16A
- Maximum output: 10A (resistive load)
- Trailing edge dimming technology

UP2 PRO 1 Channel Dimmer Pack Specifications

- Power supply: 240V, 50Hz
- Fuse: F10A 250V
- UP2 Dimmer dimensions: 218 x 116 x 133mm
- Remote fader dimensions: 135 x 25 x 25mm
- Weight: 1.4kg

Further Product Information Below

Transcension UP2 PRO Manual (PDF)

Transcension UP2 PRO CE Certification (PDF)
