Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk

Name: Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk
Brand: Studiomaster
Price: 738.89 GBP
Availability: InStock

Price Each £615.74 (£738.89 Including VAT at 20%)

REF: JP106561

Quantity:

Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk

The Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk is the culmination of years of research and development. It ticks every box for Functionality, Audio Excellence and Ease Of Use.

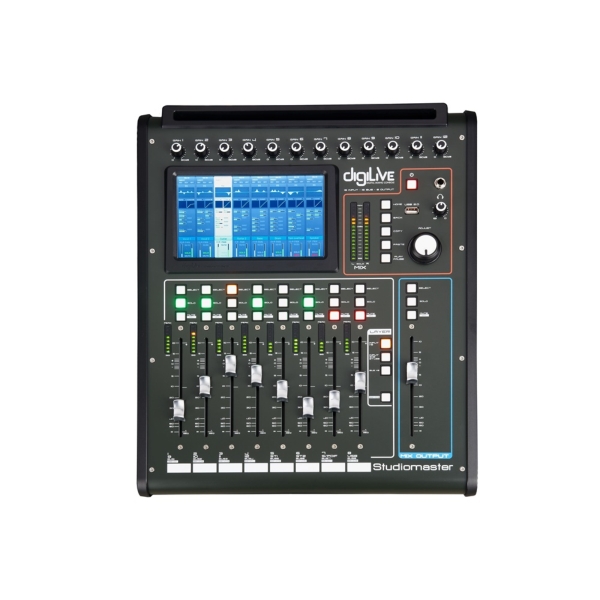

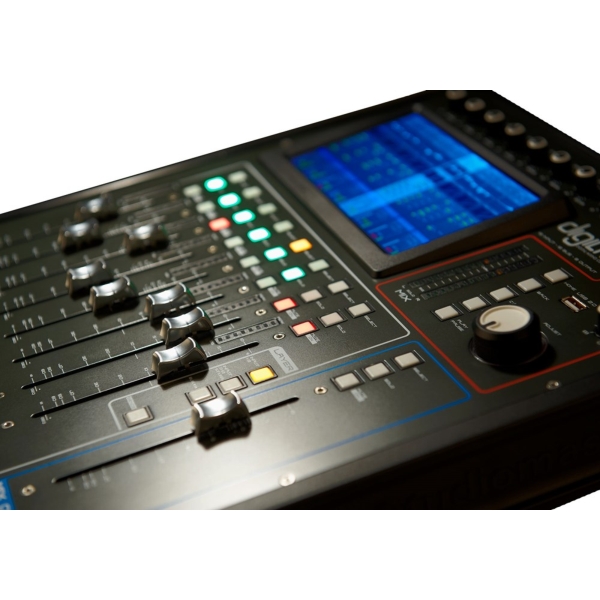

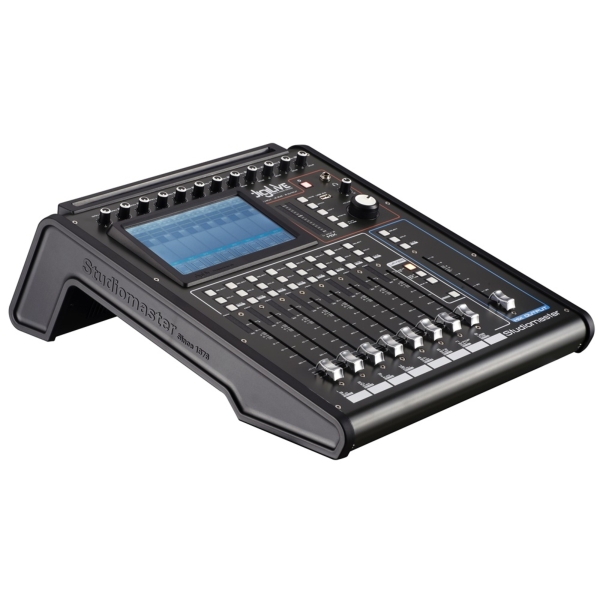

The Ultra Compact design hides a feature rich solution for every mixing application and the inclusion of eight 100mm motorised faders, a comprehensive DSP section and scene selection makes digital mixing effortless.

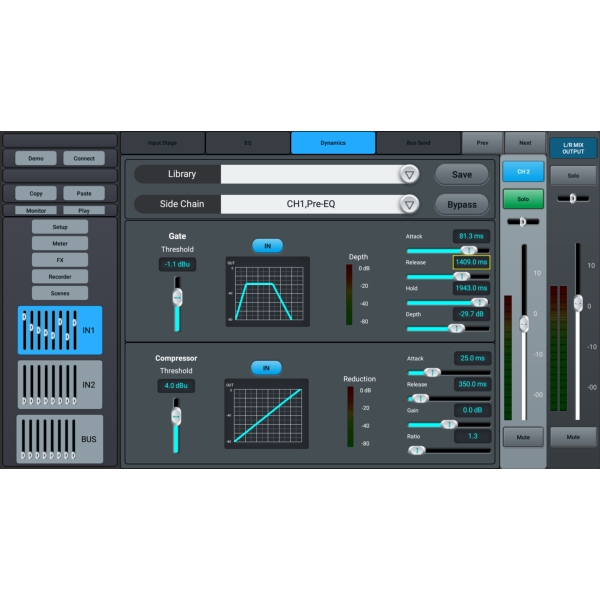

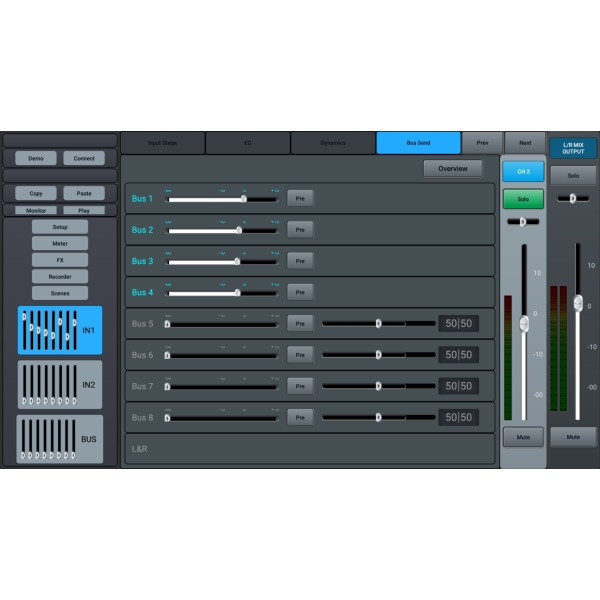

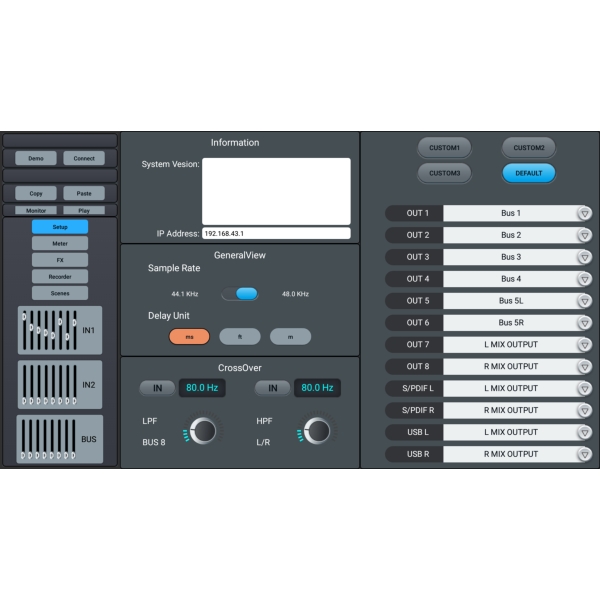

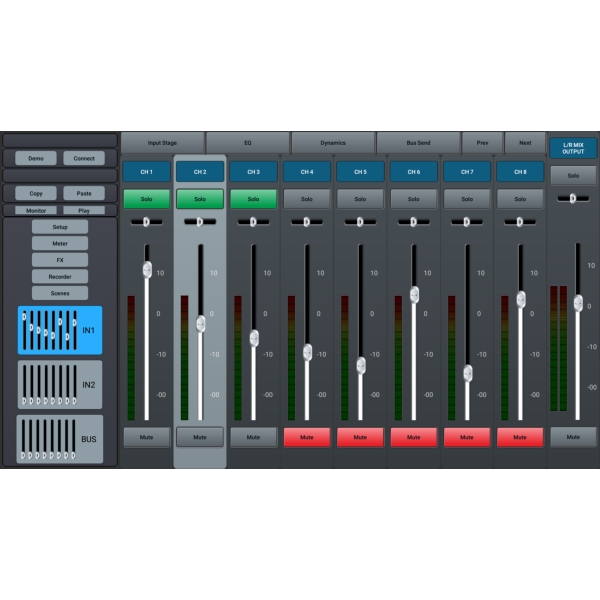

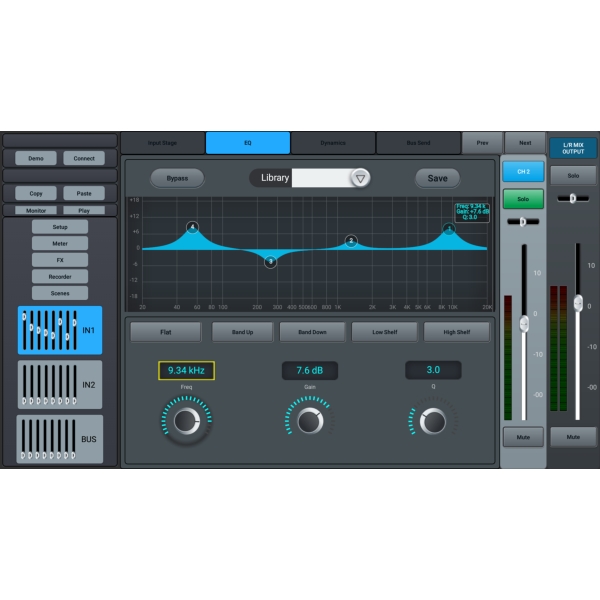

The 12 analogue inputs with superior microphone preamps are routed and controlled using hardware buttons, 7-inch high res touch screen or via an Android or iPhone App.
Mixing has never been so easy or affordable.

Click Here for Printer Friendly Version

Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk Features

- 16 input with 16 internal busses
- 12 professional mic input channels
- 2 stereo inputs
- 8 configurable smart outputs
- 7-inch high resolution touch screen
- 9 motorised 100mm faders
- Advanced hybrid user interface

Studiomaster DigiLive 16 16-Input and 8-Output Digital Mixing Desk Specifications

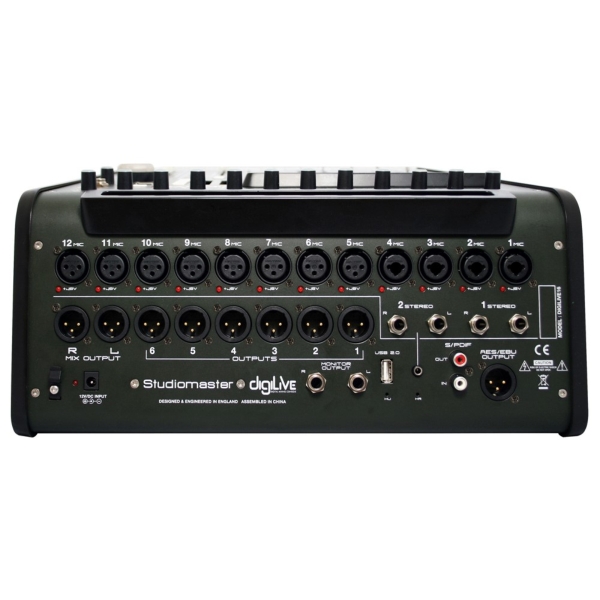

- Mic Inputs: 12 (8x XLR / 4x Combo XLR)
- Stereo Inputs: 2
- Master Output: 2 (Left/Right balanced XLR)
- Smart Outputs: 6 (assignable balanced XLR)
- Internal busses: 16
- Stage monitor: 1 TRS Jack output
- Headphone: 1 TRS Jack output
- Screen: 7-inch high definition touch screen
- Faders: 8x motorised 100mm channel faders + 1x motorised 100mm master L/R mix
- Operation system: Android system
- Network: Yes, via included WiFi module
- Remote control: iPad iOS via 'Digilive Blackbox' app
- Sample Frequency: 48 KHz
- AD/DA: 192 KHz, 24-bit
- DSP: 40 bit float point, SHARC processor

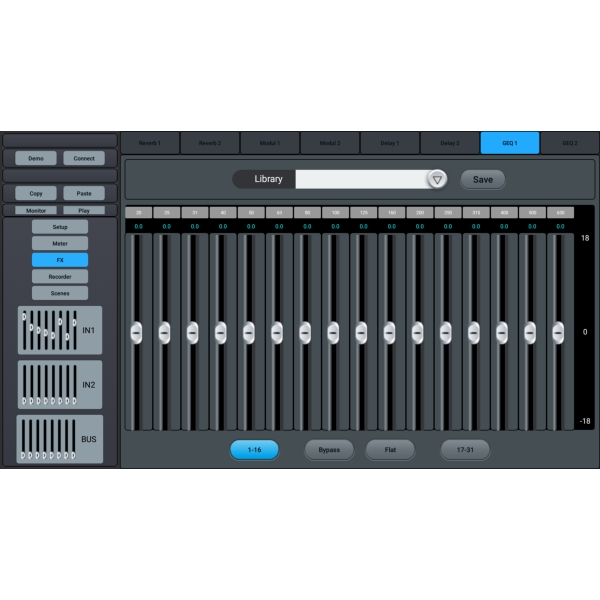

- Effects: up to 8 assignable effect modules
- AES/EBU: Output XLR
- S/PDIF: Input / Output (RCA Phono)
- USB Interface: 2 for playback/recording, scene/setting storage and system updates
- Power Supply: 90-240V ~ 50/60Hz power supply 12VDC
- Dimensions (W x H x D): 357 x 145 x 480 mm

Further Product Information Below

Studiomaster DigiLive 16 Manual (PDF)
