elumen8 Socapex 19-Pin Male to PowerCON True1 2.5mm 1m Staggered Fan-Out Cable

Name: elumen8 Socapex 19-Pin Male to PowerCON True1 2.5mm 1m Staggered Fan-Out Cable
Brand: elumen8
Price: 204.02 GBP
Availability: InStock

Price Each £170.02 (£204.02 Including VAT at 20%)

REF: JP110344

Quantity:

Description
Features

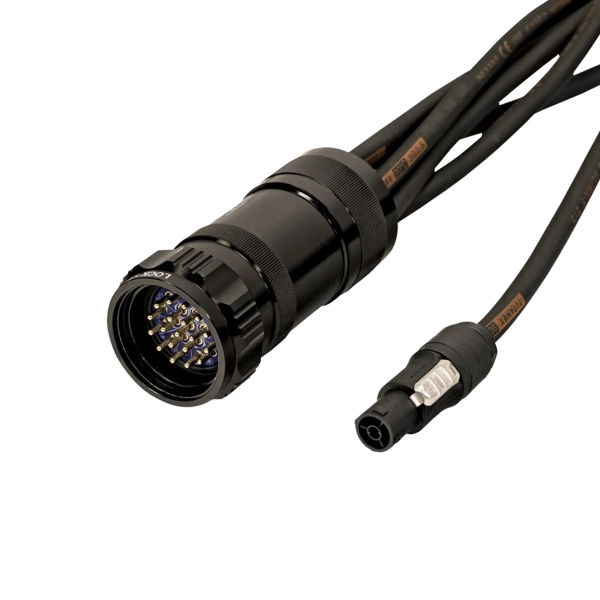

elumen8 Socapex 19-Pin Male to PowerCON True1 2.5mm 1m Staggered Fan-Out Cable

The elumen8 Socapex 19-Pin Male to PowerCON True1 2.5mm 1m Staggered Fan-Out Cable is a high quality, rental-ready Socapex fan out cable made in Britain from Titanex H07RN-Fcable and Elumen8 Showsafe 19-Pin UL certified Socapex connectors. The cables are finished with a short length of clear heatshrink ready for identification or asset label, and each tail is numbered to aid circuit identification with each tail staggered by 1m starting at 1m thru to 6m in length.

Click Here for Printer Friendly Version

elumen8 Socapex 19-Pin Male to PowerCON True1 2.5mm 1m Staggered Fan-Out Cable Features

- Made in Britain
- Titanex H07RN-F 2.5mm 3 Core rubber cable
- Elumen8 Showsafe 19-Pin connectors complete with 6-way cable gland
- 6x Neutrik NAC3FX-W-TOP powerCON TRUE1 connectors
- Clear heatshrink suitable for identification or asset label
- Oil resistant and flame retardant according to IEC/EN 60332-1-2 standard
- Chemical resistant cross-linked elastomer insulation
- Bare copper conductors
- Operating temperature range: -25 to 55°C
- Maximum conductor temperature in service: 90°C
- Amphenol Socapex SL419 compatible
- IP67* ingress protection when mated (*Socapex end)
- FMLB (first make, last break) earth contacts
- Multi-point gold plated contacts
- Staggered tails lengths at 1m intervals (1m thru 6m)
