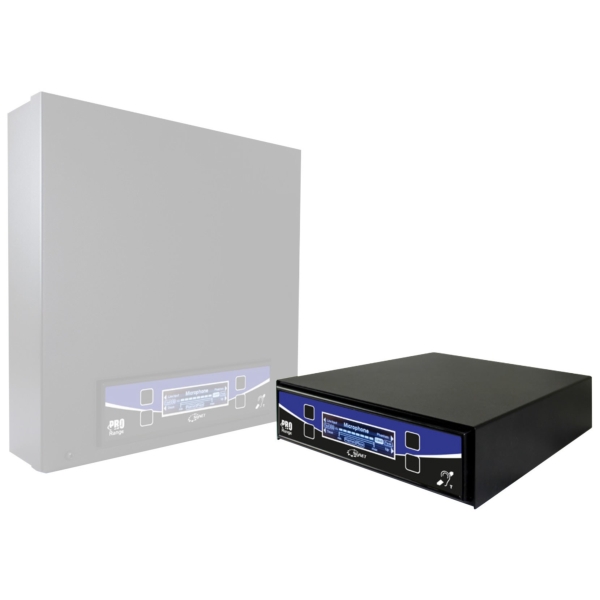

SigNET AC PRO11/DD Free-Standing Dual Induction Loop Amplifier with LCD Display, 1000m - 11A

SigNET AC PRO11/DD Free-Standing Dual Induction Loop Amplifier with LCD Display Features

- Clear & intuitive LCD graphical interface allows simple set-up of input levels, output current, phantom power and metal compensation
- 1000m² coverage
- 2x XLR mic/line inputs (selectable)
- Digital optical 'Toslink' connector facilitates easy connection to TVs, soundbars, etc
- Outreach connector allows up to 10 of SigNET's revolutionary audio input utility plates to be added
- Anti-tamper lock function prevents unauthorised adjustment of system settings
- 5 year warranty as standard
- Class D output stage for maximum efficiency and very high output
- Superior analogue audio processing with a powerful CPU and cutting-edge technology provide life-like speech and first class music reproduction
- Short circuit protection against loop faults for increased reliability
- Fault relay & graphical display provide clear indication of operation and fault status
- Industry leading dual action automatic gain control compensates for poor microphone technique
- Line level output for recording or daisy-chaining multiple units to cover larger areas
- Designed and manufactured in the UK

SigNET AC PRO11/DD Free-Standing Dual Induction Loop Amplifier with LCD Display Specifications

- Type: Free-standing (supplied with IEC 320 fused mains lead)
- Coverage: 1000m², i.e. rooms up to approx. 22m x 22m
- Inputs:
  - 2x XLR mic/line (selectable)
  - 1x Outreach
  - 1x Optical TOS Link digital receiver
- Outputs:
  - Loops: 1 & 2
  - Line Out
  - Fault Relay
  - Phase Shift 2 x 900 phase shifted Selectable (on/off);
- Controls:
  - Sensitivity Level Controls
  - Line In
  - Mic
  - 12V Phantom
  - Outreach
  - Optical
  - Metal Compensation
  - Drive: 1 & 2
  - Loop
  - Phase Shift
- Indicators: LCD display with 4 membrane control buttons

Physical:
- Dimensions (W x H x D): 218 x 67 x 280 mm
- Weight: 2.38kg

Further Product Information Below

SigNET AC PRO11/DD Manual (PDF)

SigNET AC Hearing Loop Guide (PDF)

SigNET AC PRO11/DD Free-Standing Dual Induction Loop Amplifier with LCD Display Supplied With

- 1x SigNET AC PRO11/DD Hearing loop amplifier
- 1x Fused mains lead
- 1x Accessory pack containing instructions, four self-adhesive rubber feet, pluggable connectors (for the outreach, line out & relay terminals), 'hearing loop fitted' sticker
