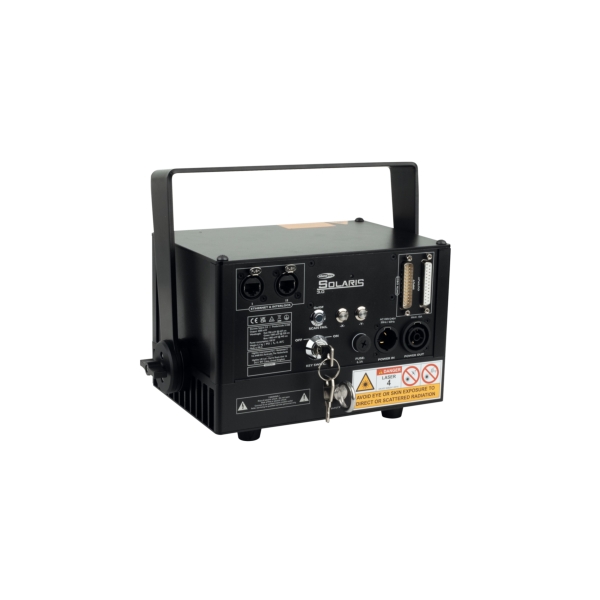

Showtec Solaris 3.0 RGB Laser with ILDA control

Showtec Solaris 3.0 RGB Laser with ILDA control Features

- 3000 mW Full-colour laser with ILDA control
- Full colour spectrum thanks to analogue laser control
- 45° laser scan angle, scanning up to 30 kpps at 8°
- Low beam divergence (<1.6 mrad at full angle)

Showtec Solaris 3.0 RGB Laser with ILDA control Specifications

Source:
- Laser Power: 3000 mW
- Laser Source: Diode
- Laser Modulation: Analog
- Laser Class: 4
- Laser Colour: Red, Green, Blue
- Laser Power (Total): 3000 mW
- Laser Power (Red): 700 mW
- Laser Wavelength (Red): 637 nm
- Laser Power (Green): 1000 mW
- Laser Wavelength (Green): 520 nm
- Laser Power (Blue): 1400 mW
- Laser Wavelength (Blue): 445 nm

Control and Programming:
- Control Mode: ILDA

Movement:
- Laser Scan Angle (Max.): 45 °

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 100 W
- Power Connector In: Power Pro True
- Power Connector Out: Power Pro True
- Data Connector: ILDA DB25
- Data Connector In: ILDA DB25 Male
- Data Connector Out: ILDA DB25 Female

Product Properties:
- Cooling: Axial fan
- Safety Features: Interlock, Key Switch, Safety Eye
- Laser Scanner: 30 kpps

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C (104 °F)

Rigging:
- Mounting Options: Bracket, Floor
- Safety Attachment: Yes

Certification / Qualification:
- Laser Classification Standard: EN-IEC 60825-1:2014+A11:2021
- NOHD: 450 m (1476.378 ft)
- MPE (for Exposure Duration of 0,25 s): 25 W·m?² (0.0037 W·ft?²)

Physical:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 284 x 220 x 180 mm
- Weight: 5.1 kg

Further Product Information Below

Showtec Solaris 3.0 Manual (PDF)

Showtec Solaris 3.0 RGB Laser with ILDA control Suplied With

- PowerCON Cable
- Interlock key(s)
- Bracket
