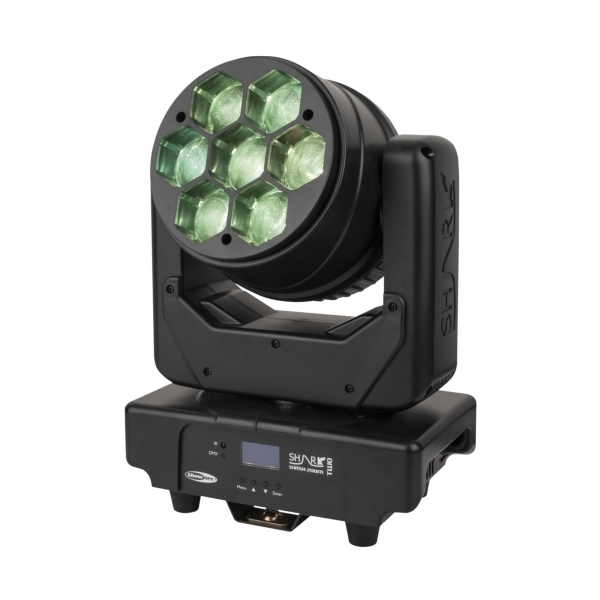

Showtec Shark Wash Zoom Two RGBW LED Moving Head

Showtec Shark Wash Zoom Two RGBW LED Moving Head Features

- 7x 30 W RGBW LED Wash Moving Head
- 6° - 38° motorised zoom
- Dimmer & strobe functions
- DMX, IR & Master/Slave control
- Infrared remote included

Showtec Shark Wash Zoom Two RGBW LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Type (Spot): LED
- Light Source Quantity: 7
- Light Source Power: 30 W
- LED Colour Type: RGBW
- Illuminance:
  - 2 m: 36055 lx
  - 3 m: 16025 lx
  - 5 m: 5769 lx
- Luminous Flux:
  - Total: 2065 lm
  - Red: 467 lm
  - Green: 896 lm
  - Blue: 232 lm
  - White: 1117 lm

Optical:
- Beam Angle Minimum (Circular): 6 °
- Beam Angle Max. (Circular): 38 °
- Zoom Type: Motorised
- Zoom Minimum: 6 °
- Zoom Maximum: 38 °

Control and Programming:
- Control Mode:
  - Built-in Program
  - DMX
  - Master/Slave
  - Remote
  - Sound
- DMX Channels: 8, 15
- Protocols: DMX
- Display: OLED

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz

Movement:
- Pan: 540 °
- Tilt: 210 °
- Continuous Movement: No

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 220 W
- Fuse: 5 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Plastic
- Colour: Black
- Dimensions (W x H x D): 154 x 355 x 246 mm
- Weight: 5.55 kg

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 70 °C
- Minimum Operating Temperature: -5 °C

Further Product Information Below

Shark Wash Zoom Two Manual (PDF)

Showtec Shark Wash Zoom Two RGBW LED Moving Head Supplied With

- Power Pro Cable
- Bracket
