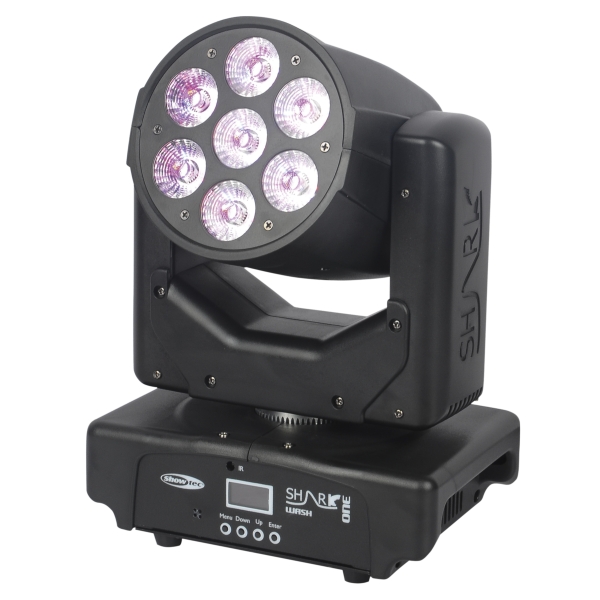

Showtec Shark Wash One RGBWA+UV LED Moving Head

Showtec Shark Wash One RGBWA+UV LED Moving Head Features

- 7x 12 W RGBWA+UV LED Wash Moving Head
- 25° fixed beam angle suitable for low ceiling venues
- Compact, one-clamp-mount design
- Dimmer and strobe function
- DMX, IR and Master/Slave control

Showtec Shark Wash One RGBWA+UV LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 7
- Light Source Power: 12 W
- LED Colour Type: RGBWAUV
- Illuminance @ 2 m: 3350 lx
- Luminous Flux (Total): 979 lm

Optical:
- Beam Angle Max. (Circular): 25 °

Control and Programming:
- Control Mode:
  - Auto
  - DMX
  - Master/Slave
  - Remote
  - Sound
- DMX Channels: 7, 16
- Protocols: DMX
- Display: OLED
- Dimmer Resolution: 8 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Movement:
- Pan: 540 °
- Tilt: 230 °
- Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 120 W
- Fuse: 2 A
- Power Connector In: IEC
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black
- Dimensions (W x H x D): 145 x 300 x 215 mm
- Weight: 3.8 kg

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 80 °C

Further Product Information Below

Shark Wash One Manual (PDF)

Showtec Shark Wash One RGBWA+UV LED Moving Head Supplied With

- IEC cable
- Bracket
