Showtec Shark Spot One LED Moving Head

Showtec Shark Spot One LED Moving Head Features

- 60 W Spot Moving Head with 15° fixed beam angle
- 5 gobos + open & 7 colours + white
- 3-facet prism & motorised focus
- Infrared remote included
- Compact, one-clamp-mount design

Showtec Shark Spot One LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 60 W
- LED Colour Type: CW
- Illuminance @ 5 m: 1784 lx
- Luminous Flux (Total): 800 lm
- CCT: 8000 K

Optical:
- Beam Angle Max. (Circular): 15 °
- Focus: Motorised

Control and Programming:
- Control Mode:
  - Auto
  - DMX
  - Master/Slave
  - Remote
  - Sound
- DMX Channels: 8, 14
- Protocols: DMX
- Display: OLED

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Prism 1: 3-facet Circulair
- Prism Index & Rotate: No
- Colour System: Colour Wheel
- Colour Wheel Index & Rotate: Yes
- Dichroic Colour Wheel 1: 7 + Open

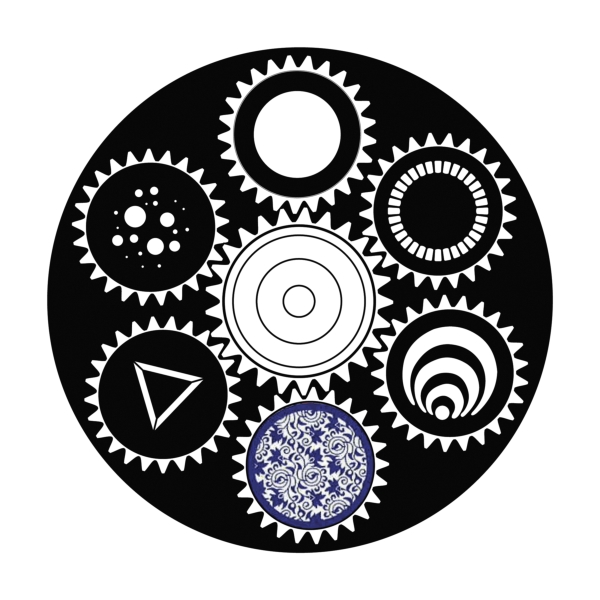

- Gobo System: Glass + Metal
- Gobo Wheel Index & Rotate: Yes
- Gobo Wheel 1: 5 + Open

Movement:
- Pan: 540 °
- Tilt: 200 °

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 110 W
- Power Connector In: IEC
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black
- Dimensions (W x H x D): 144 x 335 x 214 mm
- Weight: 4.6 kg

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Further Product Information Below

Shark Spot One Manual (PDF)

Showtec Shark Spot One LED Moving Head Supplied With

- IEC cable
- Bracket
- IR Remote
