Showtec Shark - The Meg - Hybrid One LED Moving Head

Name: Showtec Shark - The Meg - Hybrid One LED Moving Head
Brand: Showtec
Price: 859.87 GBP
Availability: InStock

Price Each £716.56 (£859.87 Including VAT at 20%)

REF: JP109270

Quantity:

Showtec Shark - The Meg - Hybrid One LED Moving Head

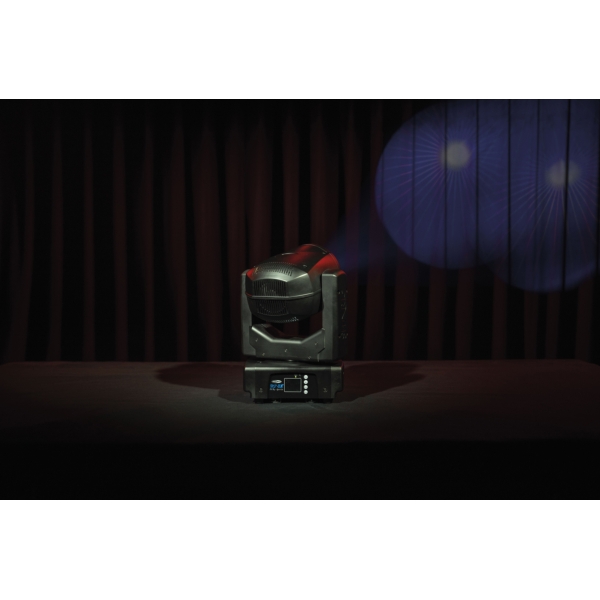

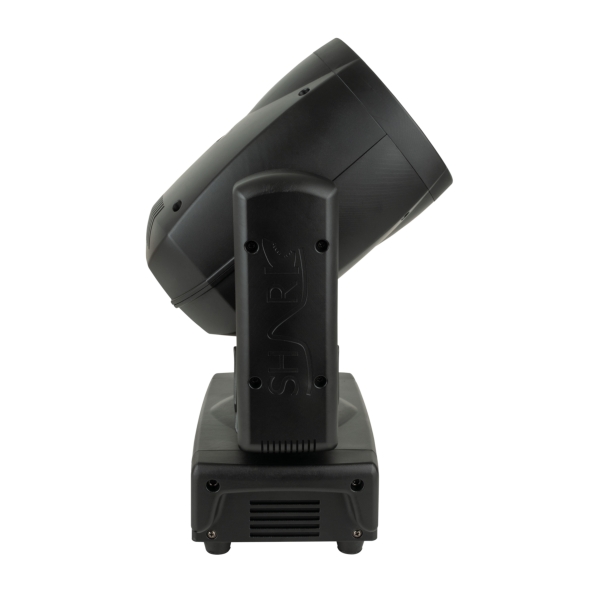

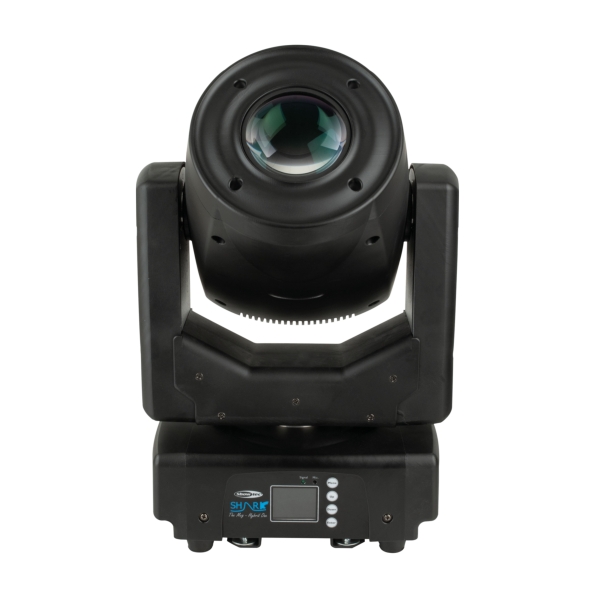

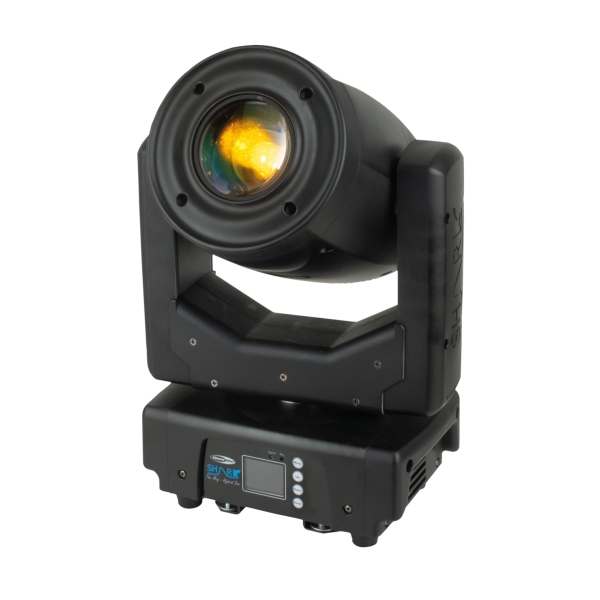

The Showtec Shark - The Meg - Hybrid One LED Moving Head is a compact but powerful 160 watt LED hybrid moving head with a beam angle that can be adjusted from Beam to Spot to Wash (motorised zoom from 3.8 to 15.8 degrees). It is suitable for indoor applications and comes with a lot of impressive effects. It is equipped with a colour wheel with 9 dichroic colours plus open and it has two gobo wheels, one with 7 rotating gobos plus open, and one with 12 fixed gobos plus open. It has an indexed, rotatable 3-facet prism, and frost and motorised focus functions. The Shark - The Meg - Hybrid One can be controlled through DMX and has several built-in programs for stand-alone operation.

Click Here for Printer Friendly Version

Showtec Shark - The Meg - Hybrid One LED Moving Head Features

- 160 W hybrid LED moving head
- 9 dichroic colours + white and 3-facet rotatable prism
- 2 gobo wheels with 7 rotating and 12 fixed gobos + open
- Motorised zoom from 3.8 to 15.8 degrees
- Frost and motorised focus

Showtec Shark - The Meg - Hybrid One LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 160 W
- LED Colour Type: CW
- Illuminance:
  - 2 m: 175844 lx
  - 3 m: 78153 lx
  - 5 m: 28135 lx
- Luminous Flux (Total): 3075 lm
- CRI: 73

Optical:
- Beam Angle Minimum (Circular): 3.8 °
- Beam Angle Max. (Circular): 15.8 °
- Zoom Type: Motorised
- Zoom Ratio: 1:5
- Frost: Yes
- Focus: Motorised

Control and Programming:
- Control Mode:
  - Built-in Program
  - DMX
- DMX Channels: 8, 16, 18
- Protocols: DMX
- Display: TFT

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Shutter: Yes
- Prism 1: 3-facet Circulair
- Prism Index & Rotate: Yes
- Colour System: Colour Wheel
- Dichroic Colour Wheel 1: 9 + Open
- Gobo System: Glass + Metal
- Gobo Wheel Index & Rotate: Yes
- Gobo Wheel 1: 7 + Open
- Gobo Wheel 2: 12 + Open
- Gobo Size: 14 mm
- Image Diameter: 9 mm

Movement:
- Pan: 540 °
- Tilt: 270 °
- Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 200 W
- Fuse: 4 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Dimensions (W x H x D): 283 x 435 x 165 mm
- Weight: 9.85 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, PVC
- Colour: Black

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Quick-Lock
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C

Further Product Information Below

Showtec Shark - The Meg - Hybrid One Manual (PDF)

Showtec Shark - The Meg - Hybrid One LED Moving Head Supplied With

- Power Pro Cable
- Quick-Lock Bracket
