Showtec Polar 100 Beam LED Moving Head, 100W - IP65

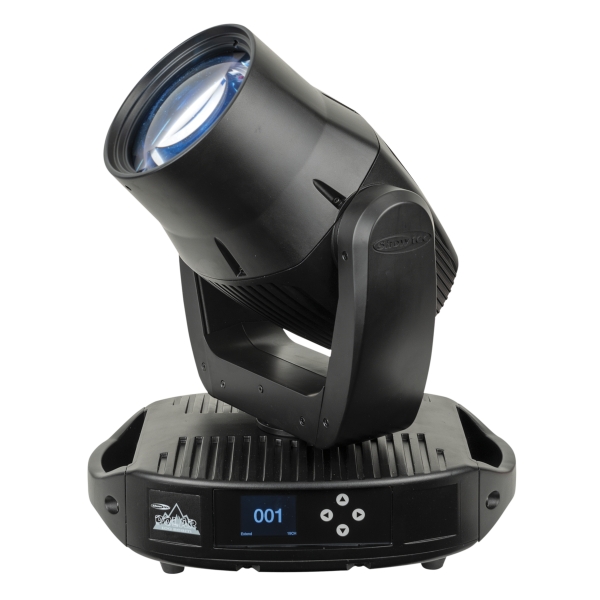

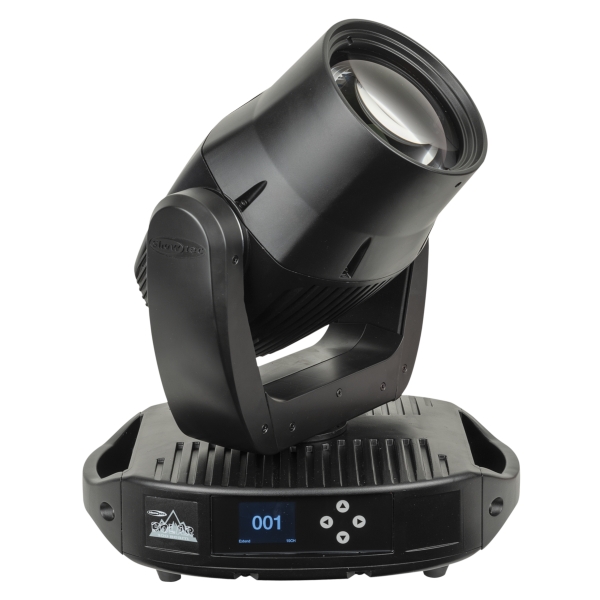

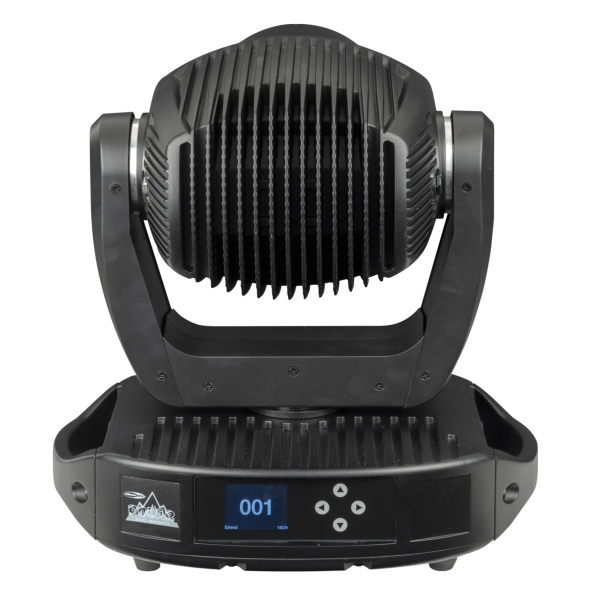

The Showtec Polar 100 Beam LED Moving Head is a powerful and fully featured, yet compact and lightweight 100 watt LED Beam Moving Head with razor-sharp 1.7° beam angle, suitable for both in- and outdoor applications. Its 5-facet circular and 24-facet linear prism with adjustable rotation speed splits the beam to cover a larger area. By using its bi-rotating 8 gobos + open and 9 dichroic colours + white, including rainbow-flow effect, you can easily create nice optical effects. Each function and effect, like its dimmer and strobe function and linear focus, can be controlled via DMX, Art-net, RDM, sACN and W-DMX (wireless).

Click Here for Printer Friendly Version

Showtec Polar 100 Beam LED Moving Head Features

- Powerful 100 W LED Beam Moving Head
- Highly focused 1.7° beam angle
- 8 bi-rotating gobos + open & 9 colours + white
- IP65 (dust and water resistant, fit for outdoor use)
- Motorised focus

Showtec Polar 100 Beam LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 100 W
- Refresh Rate (Max.): 25 kHz
- Illuminance @ 2 m: 991823 lx
- Illuminance @ 3 m: 440810 lx
- Illuminance @ 5 m: 170000 lx
- Luminous Flux (Total): 4337 lm
- CRI: 75
- CCT: 8500 K

Optical:
- Beam Angle Max. (Circular): 1.7 °
- Focus: Motorised

Control and Programming:
- Control Mode:
  - Built-in Program
  - DMX
  - Manual
- DMX Channels: 13, 16, 19
- Protocols:
  - Art-Net
  - DMX
  - RDM
  - sACN
- Wireless: Wireless DMX

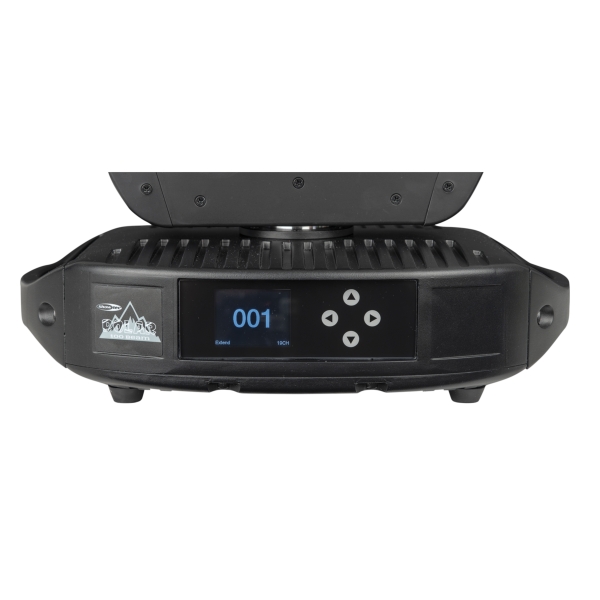

- Display: OLED, Touch
- Dim Curve:
  - Linear
  - Square
  - I-Square
  - S-Curve
- Dimmer Resolution: 16 bit
- Focus Resolution: 16 bit
- Colour Wheel Resolution: 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz
- Prism 1: 24-facet Circulair
- Prism 2: 5-facet Linear
- Prism Overlay: Yes
- Prism Index & Rotate: Yes
- Colour System: Colour Wheel
- Dichroic Colour Wheel 1: 9 + Open
- Gobo Wheel Index & Rotate: Yes

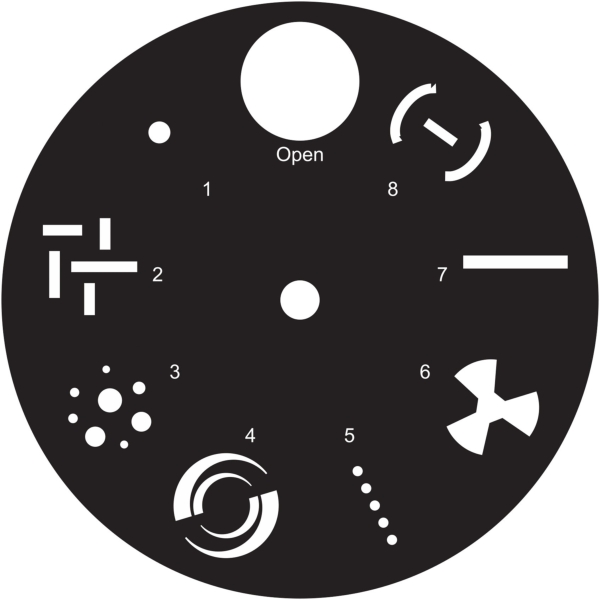

- Gobo Wheel 1: 8 + Open

Movement:
- Pan: 540 °
- Tilt: 220 °
- Pan/Tilt Resolution: 16-bit

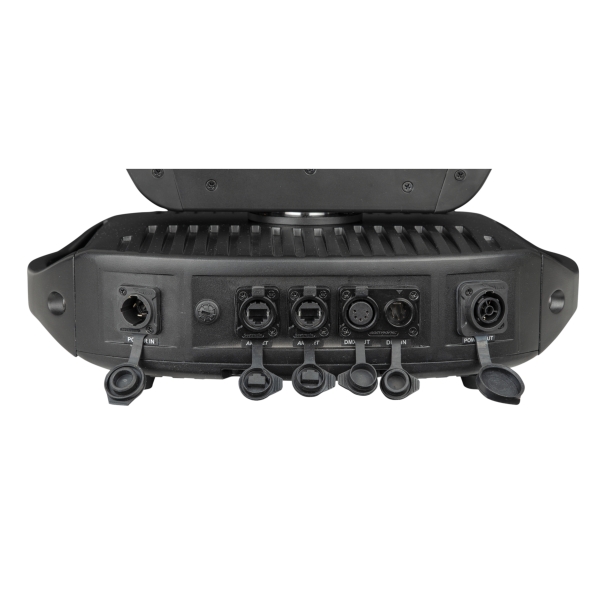

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 180 W
- Fuse: 6.3 A
- Power Connector In: Power Pro True
- Power Connector Out: Power Pro True
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D): 410 x 295 x 482 mm
- Weight: 20.3 kg
- IP Rating: IP65
- Housing: Aluminium die-cast
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:

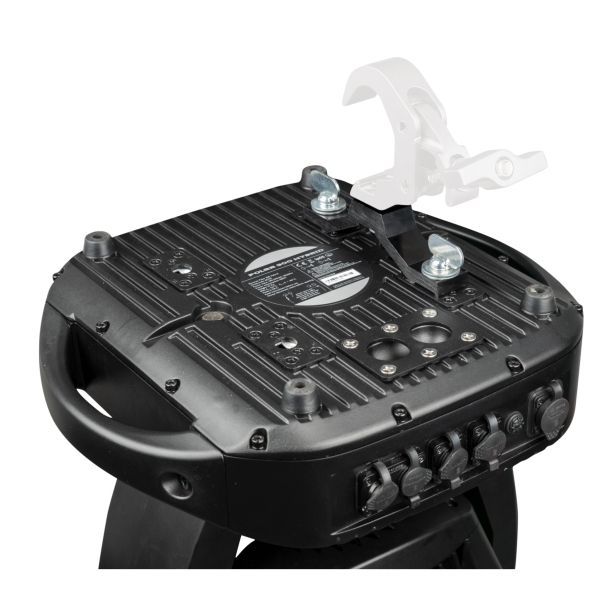

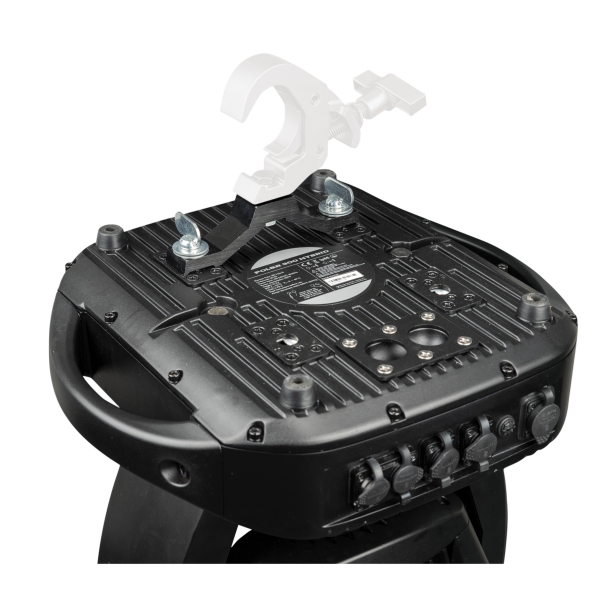

- Mounting Options: Quick-Lock
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 70 °C
- Minimum Distance to Objects: 1.3 m

Further Product Information Below

Showtec Polar 100 Beam Manual (PDF)

Showtec Polar 100 Beam LED Moving Head Supplied With

- PowerCON TRUE1 cable
- Quick-Lock Bracket
