Showtec Pixelstrip 40 RGB LED Pixel Batten

Name: Showtec Pixelstrip 40 RGB LED Pixel Batten
Brand: Showtec
Price: 102.34 GBP
Availability: InStock

Price Each £85.28 (£102.34 Including VAT at 20%)

REF: JP109260

Quantity:

Showtec Pixelstrip 40 RGB LED Pixel Batten

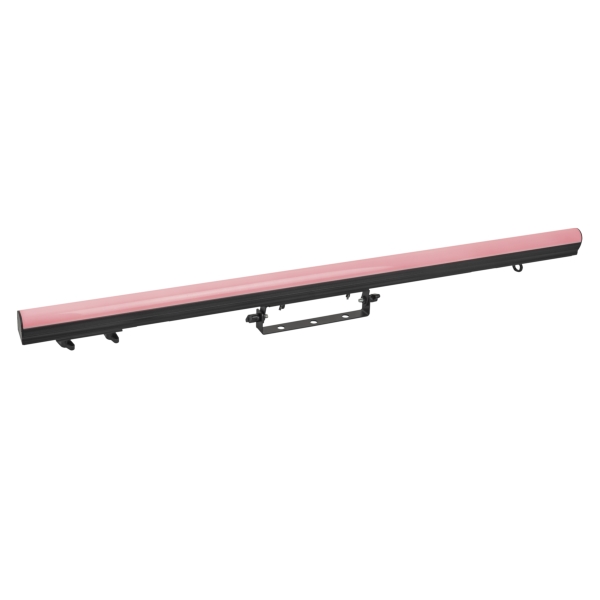

The Showtec Pixelstrip 40 RGB LED Pixel Batten is a 100 cm Pixelstrip with 40 individual controllable RGB pixels.
It comes with standard black frosted cover, the front cover can be changed easily for the optional available: Acrylic Flat Cover Milky (JP109261) or Acrylic Dome Cover White (JP109262).
Pixelstrip 40 only works with the dedicated Pixelcontroller (JP109256). All Pixelstrips can be daisy-chained easily and connected to the Pixel controller by a single Cat cable.
You can use and mix Pixelstrip 40 & 20 anyway you want (up to 4 m. Pixelstrip per output port).
Due to the flexible rigging-system it can be rigged easily to any structure, the side connecting plate allows users to align strips perfectly. Pixelstrip 40 is the perfect tool to create amazing effects.

Click Here for Printer Friendly Version

Showtec Pixelstrip 40 RGB LED Pixel Batten Features

- 100 cm / 40 RGB pixels
- Flexible rigging system
- Various front covers available

Showtec Pixelstrip 40 RGB LED Pixel Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 40
- Light Source Power: 3 W
- LED Colour Type: RGB
- Refresh Rate: 1440 Hz
- Luminous Flux (Total): 170 lm

Optical:
- Pixel Pitch: 25 mm

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Consumption: 22 W
- Data Connector: RJ45 In/Out
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D): 1000 x 100 x 37 mm
- Weight: 1.3 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Bracket, Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Control and Programming:
- Control Mode:
  - Auto
  - DMX
  - Manual
  - Master Slave
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net
- Zone Control (Sections): 40

Further Product Information Below

Showtec Pixelstrip 40 Manual (PDF)

Showtec Pixelstrip 40 RGB LED Pixel Batten Supplied With

- CAT-5 Cable
- Connection Plate
- Bracket
