Showtec Pixelstrip 20 RGB LED Pixel Batten

Name: Showtec Pixelstrip 20 RGB LED Pixel Batten
Brand: Showtec
Price: 85.94 GBP
Availability: InStock

Price Each £71.62 (£85.94 Including VAT at 20%)

REF: JP109257

Quantity:

Showtec Pixelstrip 20 RGB LED Pixel Batten

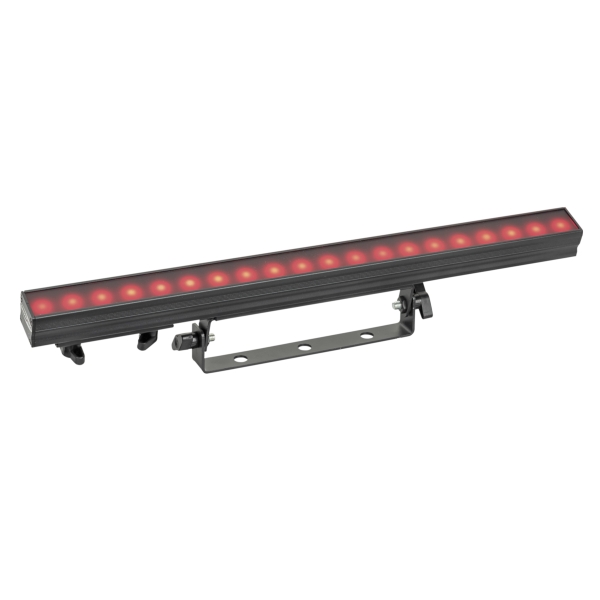

The Showtec Pixelstrip 20 RGB LED Pixel Batten is a 50 cm Pixelstrip with 20 individual controllable RGB pixels.
Pixelstrip 20 only works with the dedicated Pixelcontroller (JP109256). All Pixelstrips can be daisy-chained easily and connected to the Pixel controller by a single Cat cable.
You can use and mix Pixelstrip 20 & 40 anyway you want (up to 4 m. Pixelstrip per output port) Pixelstrip 20 comes with standard black frosted cover. The front cover can be changed easily for the optional available: Acrylic Flat Cover Milky (JP109258) or Acrylic Dome Cover White (JP109259).
Due to the flexible rigging-system it can be rigged easily to any structure and the side connecting plate allows users to align strips perfectly. Pixelstrip20 is the perfect tool to enhance your show!

Click Here for Printer Friendly Version

Showtec Pixelstrip 20 RGB LED Pixel Batten Features

- 50 cm / 20 RGB pixels
- Flexible rigging system
- Various front covers available

Showtec Pixelstrip 20 RGB LED Pixel Batten Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 20
- Light Source Power: 3 W
- LED Colour Type: RGB
- Refresh Rate: 1440 Hz
- Luminous Flux (Total): 130 lm

Optical:
- Pixel Pitch: 25 mm

Dynamic Effects:
- Dimmer: 0-100 %

Electrical Specifications and Connections:
- Power Consumption: 17 W
- Data Connector: RJ45 In/Out
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D): 500 x 100 x 37 mm
- Weight: 0.88 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal
- Colour: Black

Product Properties:
- Cooling: Passive

Rigging:
- Mounting Options: Bracket, Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Control and Programming:
- Control Mode:
  - Auto
  - DMX
  - Manual
  - Master Slave
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net
- Zone Control (Sections): 20

Further Product Information Below

Showtec Pixel Strip 20 Manual (PDF)

Showtec Pixelstrip 20 RGB LED Pixel Batten Supplied With

- CAT-5 Cable
- Connection Plate
- Bracket
