Showtec Pixeltube 32 RGB LED Pixel Tube

Name: Showtec Pixeltube 32 RGB LED Pixel Tube
Brand: Showtec
Price: 83.98 GBP
Availability: InStock

Price Each £69.98 (£83.98 Including VAT at 20%)

REF: JP109264

Quantity:

Showtec Pixeltube 32 RGB LED Pixel Tube

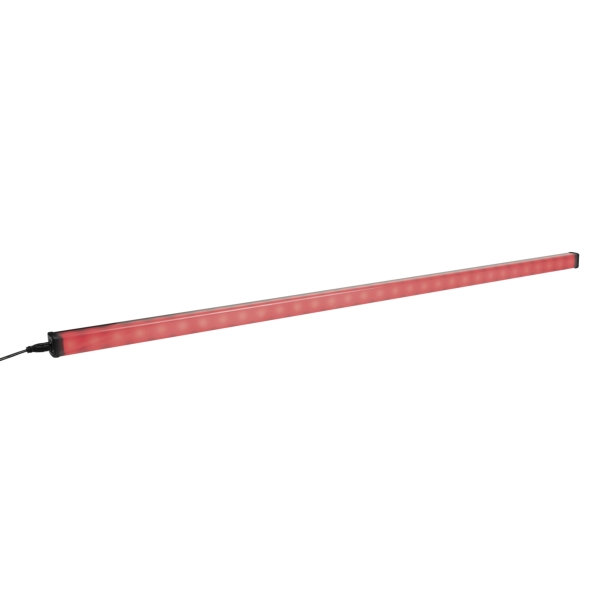

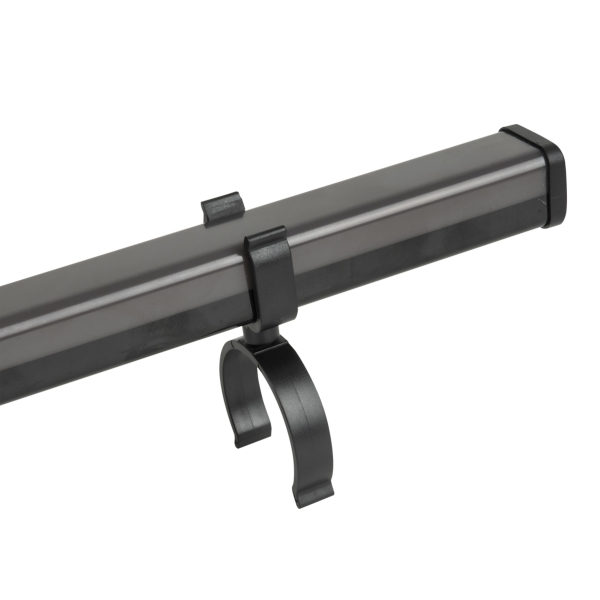

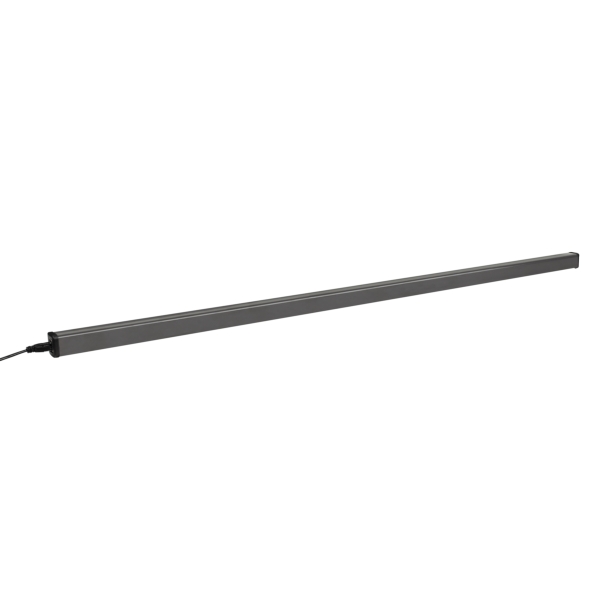

The Showtec Pixeltube 32 RGB LED Pixel Tube is a daisy-chainable 100-cm (3.3 ft) long tube containing 32 individually controllable RGB pixels in a black frosted cover, suitable for creating stunning lighting effects. Driven by the dedicated Pixelcontroller, the Pixeltube 16 and Pixeltube 32 can be easily daisy-chained in any way you like through a single Cat cable up to 5 metres (16.4 ft) of total length per output port. Its flexible rigging system allows easy attachment to truss or 50-mm (2-inch) pipe without the need for tools. Two one-clamp-mounts and a 150 cm (4.9 ft) RJ45 cable are included.

Click Here for Printer Friendly Version

Showtec Pixeltube 32 RGB LED Pixel Tube Features

- Pixel tube with 32 RGB pixels
- Daisy-chainable
- 100 cm
- Controllable by the Pixelcontroller through DMX, Art-Net and Kling-Net
- Black frosted cover

Showtec Pixeltube 32 RGB LED Pixel Tube Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 32
- Light Source Power: 1 W
- Refresh Rate: 1300 Hz

Optical:
- Pixel Pitch: 30 mm

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 24 V DC
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D): 1004 x 29 x 32 mm
- Weight: 0.22 kg
- IP Rating: IP20 (indoor use only)
- Housing: Plastic
- Colour: Black, Frost

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Control and Programming:
- Control Mode:
  - Art-Net
  - Built-in Program
  - DMX
  - Kling-Net
  - Manual
  - Master Slave
- DMX Channels: 48
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net

Further Product Information Below

Showtec Pixeltube 32 Manual (PDF)

Showtec Pixeltube 32 RGB LED Pixel Tube Supplied With

- CAT-5 Cable
- Dedicated Clamp
