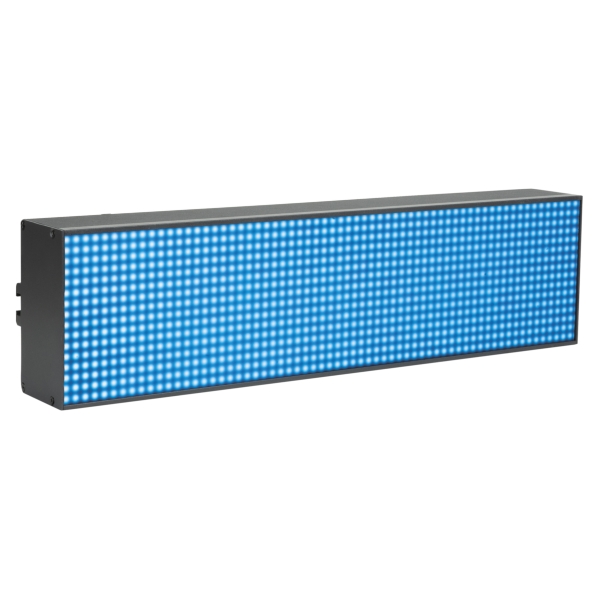

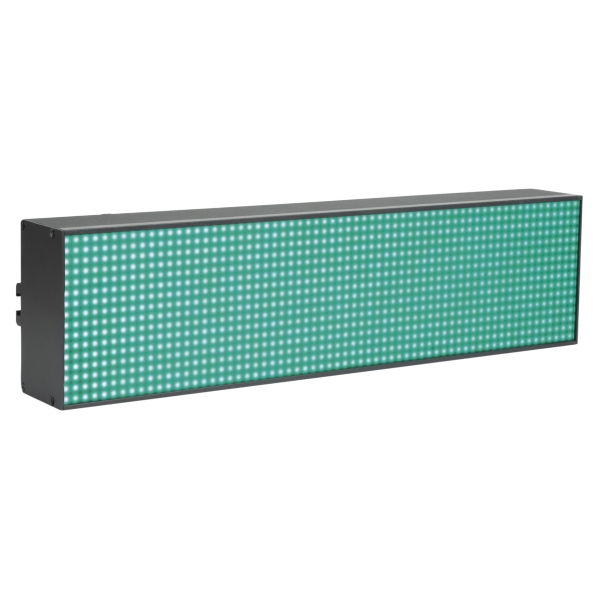

Showtec Pixel Panel 1024 RGB LED Matrix Panel

Showtec Pixel Panel 1024 RGB LED Matrix Panel Features

- Pixel panel with 1024 RGB Pixels
- Full Pixel Control (Art-Net)
- DMX, Master/Slave, Art-Net and Kling-Net controllable
- Flexible rigging system
- Alignment plate & black frosted cover included

Showtec Pixel Panel 1024 RGB LED Matrix Panel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1024
- Refresh Rate: 410 Hz

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz

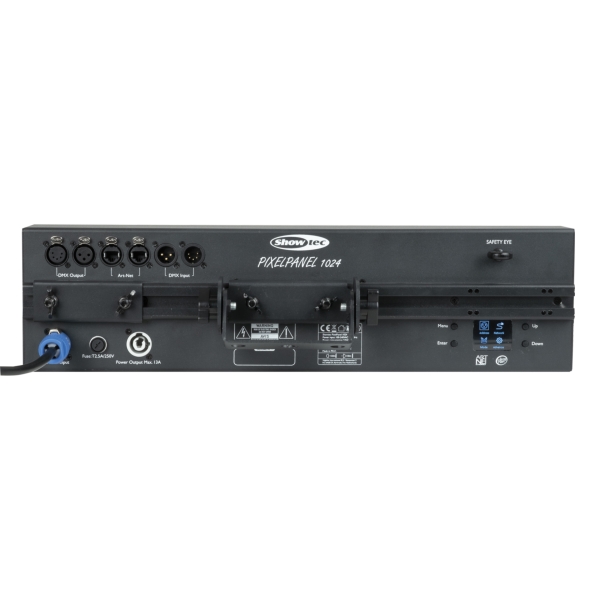

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 45 W
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P
- Data Connector In: EtherCon
- Data Connector Out: EtherCon

Mechanical Specifications:
- Dimensions (W x H x D): 516 x 85 x 136 mm
- Weight: 2.82 kg
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Control and Programming:
- Control Mode:
  - Art-Net
  - Built-in Program
  - DMX
  - Kling-Net
  - Manual
  - Master/Slave
- DMX Channels: 8, 3072
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net
- Display: OLED

Further Product Information Below
