Showtec Pixel Dot RGB LED Dot

Name: Showtec Pixel Dot RGB LED Dot
Brand: Showtec
Price: 40.8 GBP
Availability: InStock

Price Each £34.00 (£40.80 Including VAT at 20%)

REF: JP109265

Quantity:

Showtec Pixel Dot RGB LED Dot

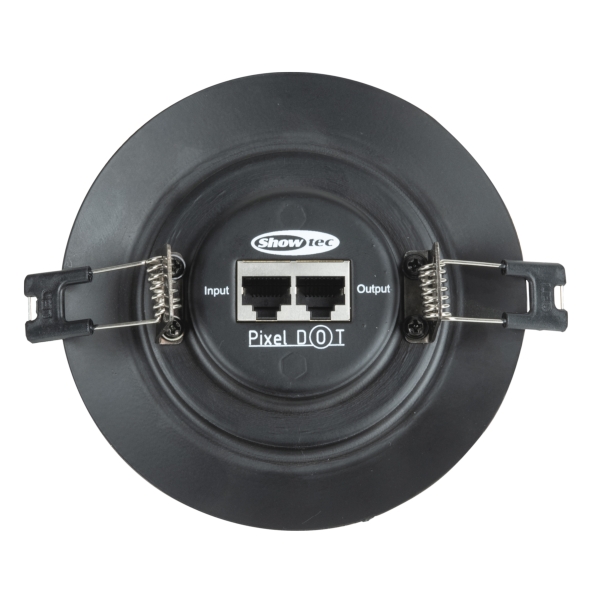

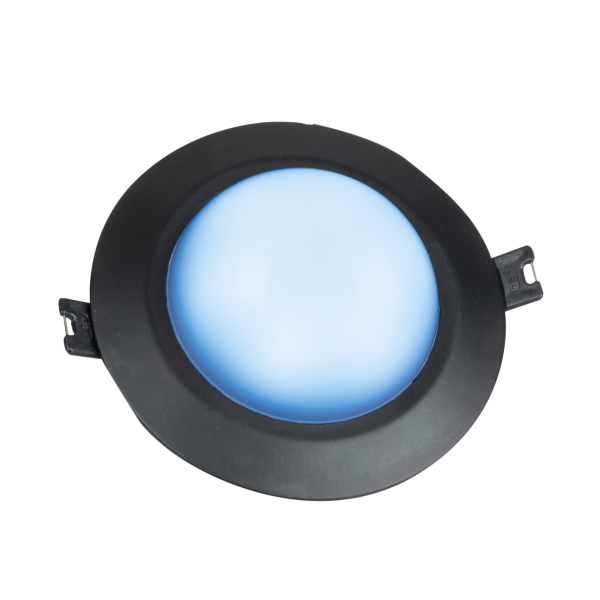

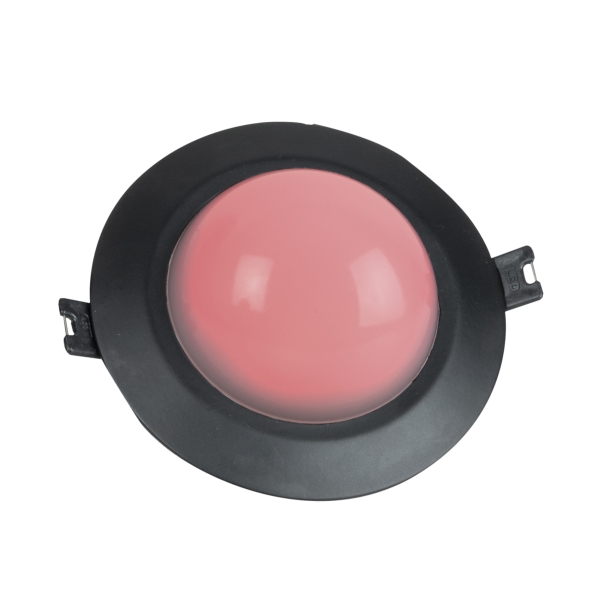

The Showtec Pixel Dot RGB LED Dot is a daisy-chainable RGB LED dot with black housing and a white frosted 50 mm (2-inch) cover, suitable for colour-mixing in fixed installations. Driven by the dedicated Pixel Controller, the Pixel Dot can be easily daisy-chained in any way you like by using a single Cat cable up to 40 units per Pixel Controller output and up to 160 Pixel Dots per controller. Equipped with spring clips, installing the Pixel Dots is just as easy as common recessed spotlights. A 50 cm (1.64 ft) RJ45 cable is included.

Click Here for Printer Friendly Version

Showtec Pixel Dot RGB LED Dot Features

- 50 mm RGB LED Pixel Dot
- Suitable for a fixed ceiling installation
- Daisy-chainable to up to 40 units per Pixelcontroller output
- Controllable by the Pixelcontroller through DMX, Art-Net and Kling-Net
- Black housing and white frosted cover

Showtec Pixel Dot RGB LED Dot Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 6
- Light Source Power: 3 W
- Refresh Rate: 1000 Hz

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 24 V DC
- Data Connector In: RJ45
- Data Connector Out: RJ45

Mechanical Specifications:
- Dimensions (W x H x D): 120.5 x 54 x 120.5 mm
- Weight: 0.1 kg
- IP Rating: IP20 (indoor use only)
- Housing: Plastic
- Colour: Black, Frost

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Clamp

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Control and Programming:
- Control Mode:
  - Art-Net
  - Built-in Program
  - DMX
  - Kling-Net
  - Manual
  - Master Slave
- DMX Channels: 3
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net

Further Product Information Below

Showtec Pixel Dot Manual (PDF)
