Showtec Pixel Bubble 75 Set

Showtec Pixel Bubble 75 Set Features

- Multi-colour LED matrix set
- Individual Pixel Control
- 15x 1 m daisy chainable strings
- PSU with 5 string outputs, each up to 6 m (19.7 ft)
- 5x 50 mm RGB balls per string

Showtec Pixel Bubble 75 Set Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 150
- Refresh Rate: 450 Hz

Optical:
- Pixel Pitch: 200 mm

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 121 W
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P
- Data Connector In: EtherCON
- Data Connector Out: EtherCON

Mechanical Specifications:
- Height: 72 mm
- Width: 71 mm

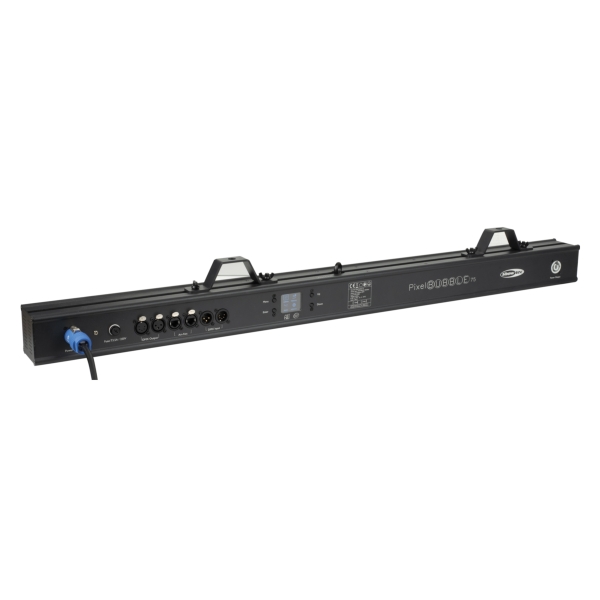

- Controller Height: 72 mm
- Controller Width: 71 mm
- Controller Length: 1003 mm
- Weight: 6.3 kg
- Controller Weight: 3.12 kg
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black

Product Properties:
- Cooling: Convection

Rigging:
- Mounting Options: Bracket, Clamp
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Minimum Ambient Temperature: -5 °C

Control and Programming:
- Control Mode:
  - Art-Net
  - Built-in Program
  - DMX
  - Kling-Net
  - Manual
  - Master/Slave
- DMX Channels: 7, 75, 150, 225, 300, 375, 450
- Protocols:
  - Art-Net
  - DMX
  - Kling-Net
- Display: OLED

Further Product Information Below

Showtec Pixel Buvvle 75 Set Manual (PDF)

Showtec Pixel Bubble 75 Set Supplied With

- Power Pro Cable
- Bracket
