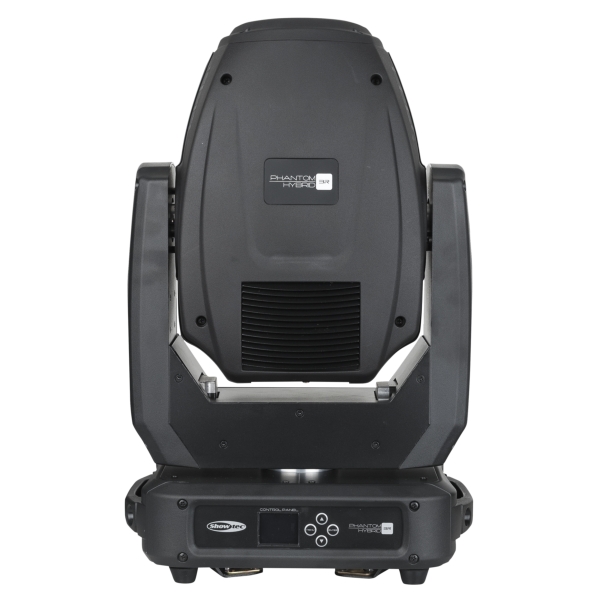

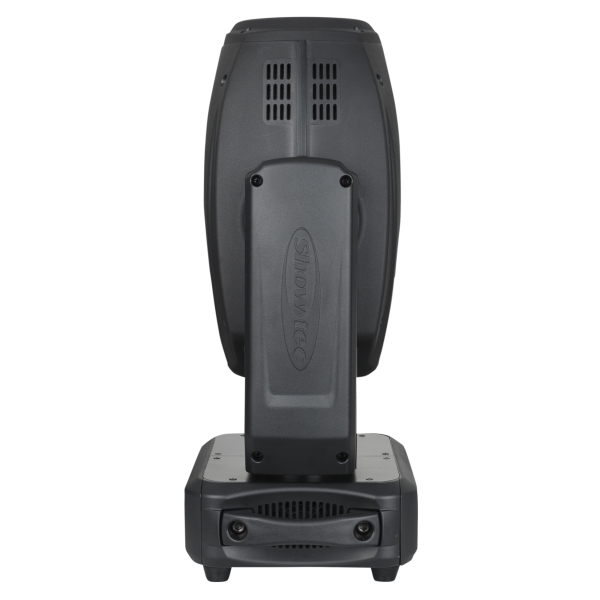

Showtec Phantom 3R Hybrid Discharge Moving Head, 140W

Name: Showtec Phantom 3R Hybrid Discharge Moving Head, 140W
Brand: Showtec
Price: 1088.06 GBP
Availability: InStock

Price Each £906.72 (£1,088.06 Including VAT at 20%)

REF: JP109236

Quantity:

Showtec Phantom 3R Hybrid Discharge Moving Head, 140W

The Showtec Phantom 3R Hybrid Discharge Moving Head is an all-in-one true Hybrid Moving Head that can easily change from Spot to Wash to Beam, suitable for indoor venues. Its intense 140 watt Osram 3R discharge light engine and motorised focus with auto focus function creates razor sharp beams and gobos at almost any distance. The overlapping circular and linear rotating prisms can be independently controlled and create dynamic beam effects. The Phantom 3R Hybrid operates within a 3° - 20° motorised zoom range in both Spot, Wash and Beam modus for ultimate light control.

Click Here for Printer Friendly Version

Showtec Phantom 3R Hybrid Discharge Moving Head Features

- 140 W Moving Head for both Spot, Wash and Beam effects
- Motorised zoom, focus and frost
- 6-facet linear & 8-facet circular overlapping prisms
- Motorised zoom
- 12 colours + white

Showtec Phantom 3R Hybrid Discharge Moving Head Specifications

Source:
- Light Source Type: Discharge
- Light Source Quantity: 1
- Light Source Power: 140 W
- Life Expectancy: 6000 h
- Luminous Flux (Total): 4707 lm
- CRI: 70
- CCT: 9200 K
- Source Warm-up Time: 3 min
- Source Hot Restart Time: 5 min

Optical:
- Beam Angle Minimum (Circular): 3 °
- Beam Angle Max. (Circular): 20 °
- Zoom Type: Motorised
- Zoom Minimum: 3 °
- Zoom Maximum: 20 °
- Frost: Yes
- Focus: Motorised

Control and Programming:
- Control Mode:
  - Auto
  - DMX
  - Manual
  - Master/Slave
  - Sound
- DMX Channels: 14, 19
- Protocols: DMX
- Wireless: Optional
- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Shutter: Yes
- Prism 1: 8-facet Circulair
- Prism 2: 6-facet Linear
- Prism Overlay: Yes
- Prism Index & Rotate: No
- Colour System: Colour Wheel
- Dichroic Colour Wheel 1: 12 + Open
- Gobo System: Glass + Metal
- Gobo Wheel Index & Rotate: Yes
- Gobo Wheel 1: 16 + Open
- Gobo Wheel 2: 8 + Open
- Gobo Size: 13.75 mm
- Image Diameter: 11.75 mm

Movement:
- Pan: 540 °
- Tilt: 260 °
- Pan/Tilt Resolution: 16-bit

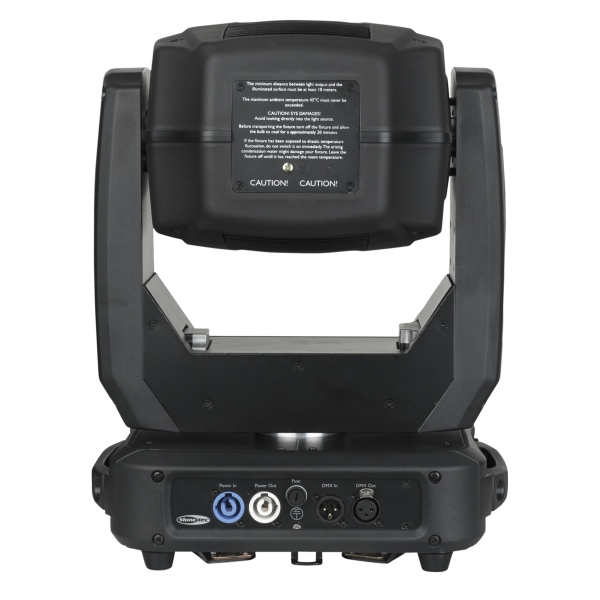

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 270 W
- Fuse: 5 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- Dimensions (W x H x D): 210 x 505 x 325 mm
- Weight: 16.7 kg
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Quick-Lock
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 70 °C
- Minimum Distance to Objects: 10 m

Further Product Information Below

Showtec Phantom 3R Hybrid Manual (PDF)

Showtec Phantom 3R Hybrid Discharge Moving Head Supplied With

- Power Pro Cable
- Quick-Lock Bracket
