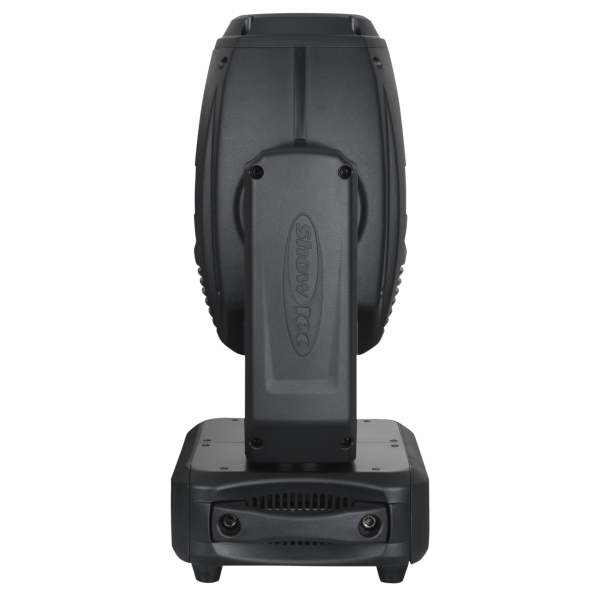

Showtec Phantom 130 Spot LED Moving Head, 130W - Black

Name: Showtec Phantom 130 Spot LED Moving Head, 130W - Black
Brand: Showtec
Price: 836.42 GBP
Availability: InStock

Price Each £697.02 (£836.42 Including VAT at 20%)

REF: JP109072

Quantity:

Showtec Phantom 130 Spot LED Moving Head, 130W - Black

The Showtec Phantom 130 Spot LED Moving Head is a medium-sized, yet powerful 130 watt LED Spot Moving Head including motorised zoom and focus, suitable for indoor venues. It has better features than the Phantom 100, like a 6-facet circular & 5-facet linear rotating prism and a bigger 12° - 21° motorised zoom range. Besides, the Phantom 130 Spot is W-DMX prepared for wireless communications. It creates stunning optical effects with 7 precise bi-rotating gobos + open and 7 dichroic colours + white. The mid-range priced Phantom 130 with razor sharp light beams and spectacular gobos, deliver a high performance/value ratio.

Click Here for Printer Friendly Version

Showtec Phantom 130 Spot LED Moving Head Features

- 130 W LED Spot Moving Head
- 6-facet circular & 5-facet linear rotating prism
- 7 fixed and 7 bi-rotating interchangeable gobos + open
- 7 colours + white
- Motorised zoom and focus

Showtec Phantom 130 Spot LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 130 W
- LED Colour Type: CW
- Illuminance @ 5 m: 5200 lx
- Luminous Flux (Total): 5200 lm

Optical:
- Beam Angle Minimum (Circular): 12 °
- Beam Angle Max. (Circular): 21 °
- Zoom Type: Motorised
- Zoom Minimum: 12 °
- Zoom Maximum: 21 °
- Focus: Motorised

Control and Programming:
- Control Mode: Auto, DMX, Manual, Master Slave, Sound
- DMX Channels: 12, 16
- Protocols: DMX
- Wireless: Optional
- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Prism 1: 6-facet Circulair
- Prism 2: 5-facet Linear
- Prism Overlay: No
- Prism Index & Rotate: Yes
- Colour System: Colour Wheel
- Colour Wheel Index & Rotate: Yes
- Dichroic Colour Wheel 1: 7 + Open
- Gobo System: Glass + Metal
- Gobo Wheel Index & Rotate: Yes
- Gobo Wheel 1: 7 + Open
- Gobo Wheel 2: 7 + Open
- Gobo Size: 24 mm
- Image Diameter: 20 mm

Movement:
- Pan: 540 °
- Tilt: 245 °
- Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 245 W
- Fuse: 5 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black
- Dimensions (W x H x D): 321 x 462 x 211 mm
- Weight: 13 kg

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Quick-Lock

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Further Product Information Below

Showtec Phantom 130 Spot Manual (PDF)

Showtec Phantom 130 Spot LED Moving Head Supplied With

- PowerCON cable
- Quick-Lock Bracket
