Showtec Phantom 100 Spot LED Moving Head, 100W - Black

Name: Showtec Phantom 100 Spot LED Moving Head, 100W - Black
Brand: Showtec
Price: 722.2 GBP
Availability: InStock

Price Each £601.83 (£722.20 Including VAT at 20%)

REF: JP109071

Quantity:

Showtec Phantom 100 Spot LED Moving Head, 100W - Black

The Showtec Phantom 100 Spot LED Moving Head is a compact, yet powerful 100 watt LED Spot Moving Head including motorised focus and gobo- and colour wheels, suitable for indoor venues. It has more features than the Phantom 65, like a 6-facet circular & 5-facet linear rotating prism and a 12° - 17° manually adjustable zoom range. The Phantom 100 Spot creates stunning optical effects with 7 precise bi-rotating gobos. Its compact 11.3 kg design and Quick-Lock brackets are ideal for quick rigging on stage. The mid-range priced Phantom 100 with razor sharp light beams and spectacular gobos, deliver a high performance/value ratio.

Click Here for Printer Friendly Version

Showtec Phantom 100 Spot LED Moving Head Features

- Compact 100 W LED Spot Moving Head
- 7 bi-rotating interchangeable gobos + open
- 8 colours + white
- Dual rotating 6-facet circular and 5-facet linear prism
- Manually adjustable zoom

Showtec Phantom 100 Spot LED Moving Head Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 100 W
- LED Colour Type: CW
- Illuminance @ 5 m: 5500 lx
- Luminous Flux (Total): 5500 lm

Optical:
- Beam Angle Minimum (Circular): 12 °
- Beam Angle Max. (Circular): 17 °
- Zoom Type: Manual
- Zoom Minimum: 12 °
- Zoom Maximum: 17 °
- Focus: Motorised

Control and Programming:
- Control Mode: Auto, DMX, Manual, Master Slave, Sound
- DMX Channels: 10, 14
- Protocols: DMX
- Wireless: Optional

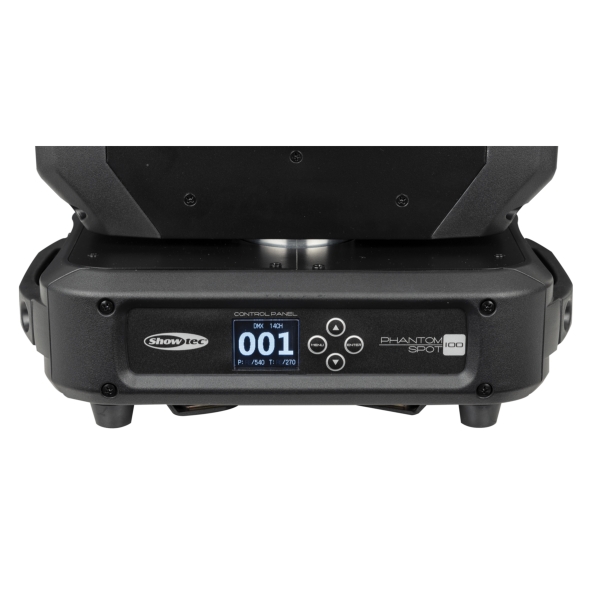

- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz
- Prism 1: 5-facet
- Prism 2: 6-facet
- Prism Index & Rotate: Yes
- Colour System: Colour Wheel
- Colour Wheel Index & Rotate: Yes
- Dichroic Colour Wheel 1: 8 + Open
- Gobo System: Glass + Metal
- Gobo Wheel Index & Rotate: Yes
- Gobo Wheel 1: 8 + Open
- Gobo Size: 24 mm
- Image Diameter: 20 mm

Movement:
- Pan: 540 °
- Tilt: 230 °
- Pan/Tilt Resolution: 16-bit

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 200 W
- Fuse: 5 A
- Power Connector In: Power Pro Blue
- Power Connector Out: Power Pro Grey
- DMX Connector: XLR 3P In/Out
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Metal, Plastic
- Colour: Black
- Dimensions (W x H x D): 210 x 420 x 325 mm
- Weight: 11.3 kg

Product Properties:
- Cooling: Axial fan

Rigging:
- Mounting Options: Quick-Lock
- Safety Attachment: Yes

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C

Further Product Information Below

Showtec Phantom 100 Spot Manual (PDF)

Showtec Phantom 100 Spot LED Moving Head Supplied With

- PowerCON cable
- Quick-Lock Bracket
