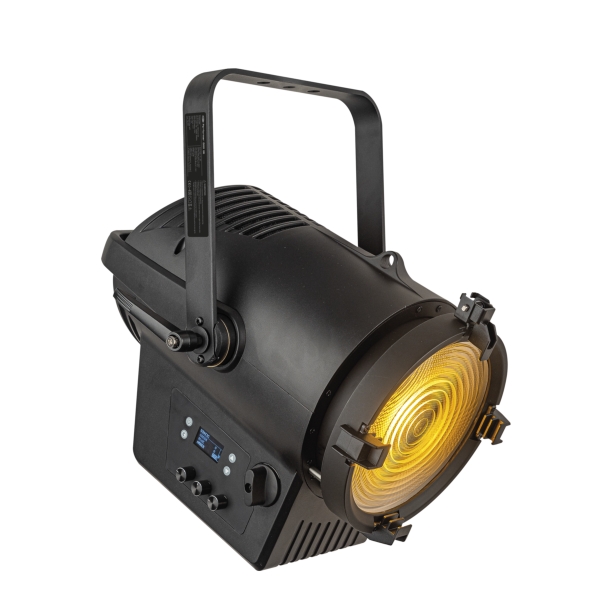

Showtec Performer 2500 Q6 RGBALC LED Fresnel

Showtec Performer 2500 Q6 RGBALC LED Fresnel Features

- 250 W RGBALC LED Fresnel
- For theatrical and studio applications
- 16 preset colours
- Colour temperature range of 1800 K - 8000 K
- Wide manually adjustable zoom range

Showtec Performer 2500 Q6 RGBALC LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 250 W
- LED Colour Type: RGBALC
- Refresh Rate (Max.): 25 kHz
- Illuminance @ 2 m: 26812 lx
- Luminous Flux (Total): 7661 lm
- CRI: 90
- Minimum CCT: 1800 K
- Maximum CCT: 8000 K

Optical:
- Beam Angle Minimum (Circular): 10 °
- Beam Angle Max. (Circular): 60 °
- Field Angle Minimum (Circular): 18 °
- Field Angle Max. (Circular): 88 °
- Zoom Type: Manual

Control and Programming:
- Control Mode: DMX
- DMX Channels: 3, 6, 7, 9, 10, 13, 20
- Protocols: DMX
- Display: LCD

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz

Electrical Specifications and Connections:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 250 W
- Power Connector In: powerCON TRUE1
- Power Connector Out: powerCON TRUE1
- DMX Connector: XLR 5P In/Out
- DMX Connector In: XLR 5P
- DMX Connector Out: XLR 5P

Mechanical Specifications:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium die-cast
- Colour: Black
- Dimensions (W x H x D): 380 x 450 x 470 mm
- Weight: 10 kg

Product Properties:
- Cooling: Axial fan

Thermal Specifications:
- Maximum Ambient Temperature: 40 °C
- Maximum Surface Temperature: 70 °C

Further Product Information Below

Showtec Performer 2500 Q6 LED Fresnel Manual (PDF)

Showtec Performer 2500 Q6 RGBALC LED Fresnel Supplied With

- powerCON TRUE1 cable
