Showtec Performer 2200 DDT LED Fresnel

Showtec Performer 2200 DDT LED Fresnel Features

- 300 W Warm White LED Spot
- Suitable for theatrical and studio applications
- DDT-model compatible with a halogen infrastructure
- High CRI for accurate 3200 K colour rendering
- Wide manual zoom range

Showtec Performer 2200 DDT LED Fresnel Specifications

Source:
- Light Source Type: LED
- Light Source Quantity: 1
- Light Source Power: 300 W
- LED Colour Type: WW
- Light Source System: COB
- Life Expectancy: 50000 h
- Refresh Rate (Max.): 25 kHz
- Illuminance @ 5 m: 3890 lx
- Luminous Flux (Total): 11000 lm
- CRI: 98
- Maximum CCT: 3200 K

Optical:
- Zoom Type: Manual
- Zoom Minimum: 15 °
- Zoom Maximum: 60 °

Control and Programming:
- Control Mode:
  - DMX
  - Manual
  - Master Slave
  - RDM
  - Stand Alone
  - Triac (Phase cut dimming)
- DMX Channels: 1, 2, 5
- Protocols: DMX, RDM

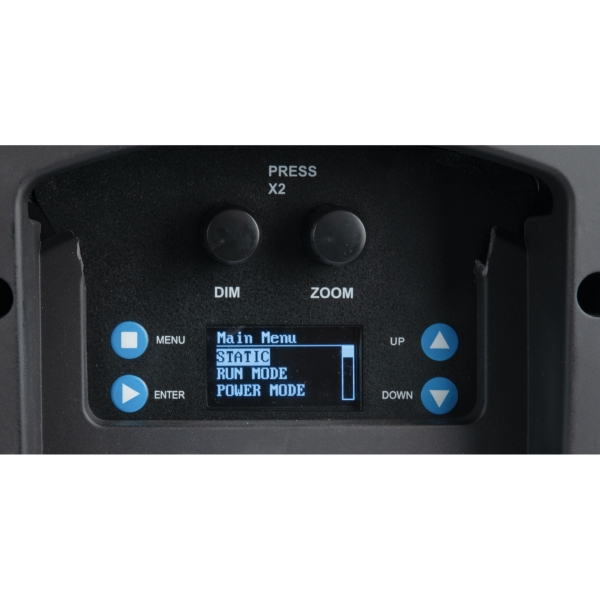

- Display: OLED
- Dim Curve: Linear
- Dimmer Resolution: 8 bit, 16 bit

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-25 Hz

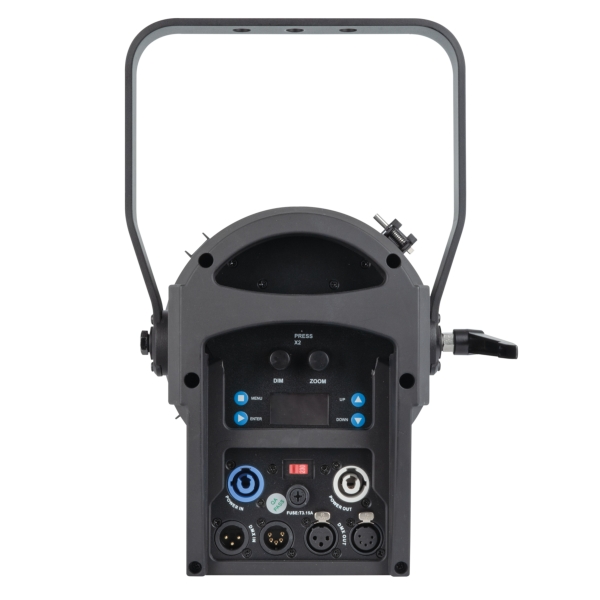

Electrical Specifications and Connections:
- Power Supply: 120-250 V AC 50/60 Hz
- Power Consumption: 220 W
- Fuse: 3.15 A
- Power Connector In: Power Pro True
- Power Connector Out: Power Pro True
- DMX Connector: XLR 3P In/Out, XLR 5P In/Out
- DMX Connector In: XLR 3P, XLR 5P
- DMX Connector Out: XLR 3P, XLR 5P

Product Properties:
- Cooling: Forced Convection

Rigging:
- Mounting Options: Bracket
- Safety Attachment: Yes
- Safety Eyes: 1

Thermal Specifications:
- Maximum Ambient Temperature: 45 °C (113 °F)

Physical:
- IP Rating: IP20 (indoor use only)
- Housing: Aluminium
- Colour: Black
- Dimensions (W x H x D): 286 x 260 x 417 mm
- Weight: 6.6 kg

Further Product Information Below

Showtec Performer Fresnel 2200 DDT Manual (PDF)

Showtec Performer 2200 DDT LED Fresnel Suplied With

- Power Pro Cable
- Filterframe
