Showtec LED Pinspot Q4 RGBW LED Pinspot, 15W

Showtec LED Pinspot Q4 RGBW LED Pinspot Features

- Compact and lightweight 15 W RGBW LED Pinspot
- 3.2° fixed beam angle
- Suitable for illuminating a mirror ball or small surface
- DMX control
- Built-in auto programs

Showtec LED Pinspot Q4 RGBW LED Pinspot Specifications

Source:
- Light Source Type: LED
- Light Source Power: 15 W
- Par Model: 36
- Illuminance @ 2 m: 7010 lx
- Luminous Flux (Total): 235 lm

Optical:
- Beam Angle (Circular): 3.2 °

Control:
- Control Mode: Built-in Program, DMX, Manual, Master Slave, Sound
- DMX Channels: 4, 6, 8
- Protocols: DMX

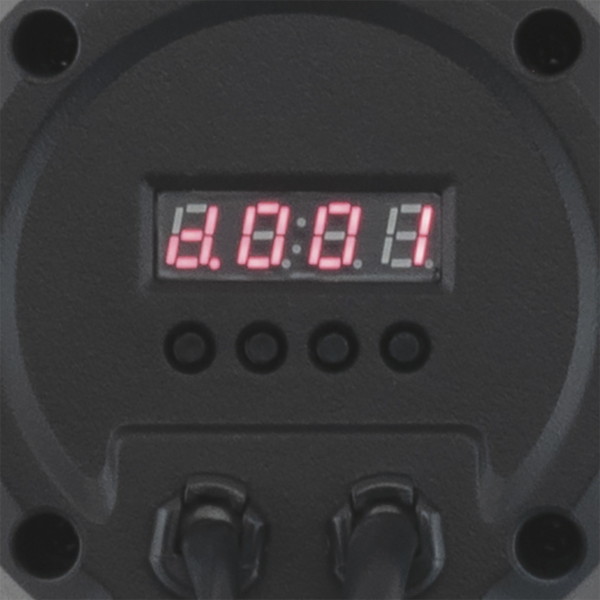

- Display: LED

Dynamic Effects:
- Dimmer: 0-100 %
- Strobe: 0-20 Hz

Electrical:
- Power Supply: 100-240 V AC 50/60 Hz
- Power Consumption: 22 W

Connections:
- Power Connector In: Schuko Plug
- DMX Connector In: XLR 3P
- DMX Connector Out: XLR 3P
- Cable Length: 1.5 m

Physical:
- IP Rating: IP20 (indoor use only)
- Housing: ABS, Plastic
- Colour: Black
- Cooling: Convection
- Mounting Options: Clamp
- Maximum Ambient Temperature: 40 °C (104 °F)
- Maximum Surface Temperature: 70 °C (158 °F)
- Minimum Operating Temperature: -20 °C (-4 °F)
- Dimensions (W x H x D): 166 x 222 x 320 mm
- Weight: 1.2 kg

Further Product Information Below

Showtec LED Pinspot Q4 Manual (PDF)

Showtec LED Pinspot Q4 RGBW LED Pinspot Supplied With

- Fixed Cable
- Bracket
